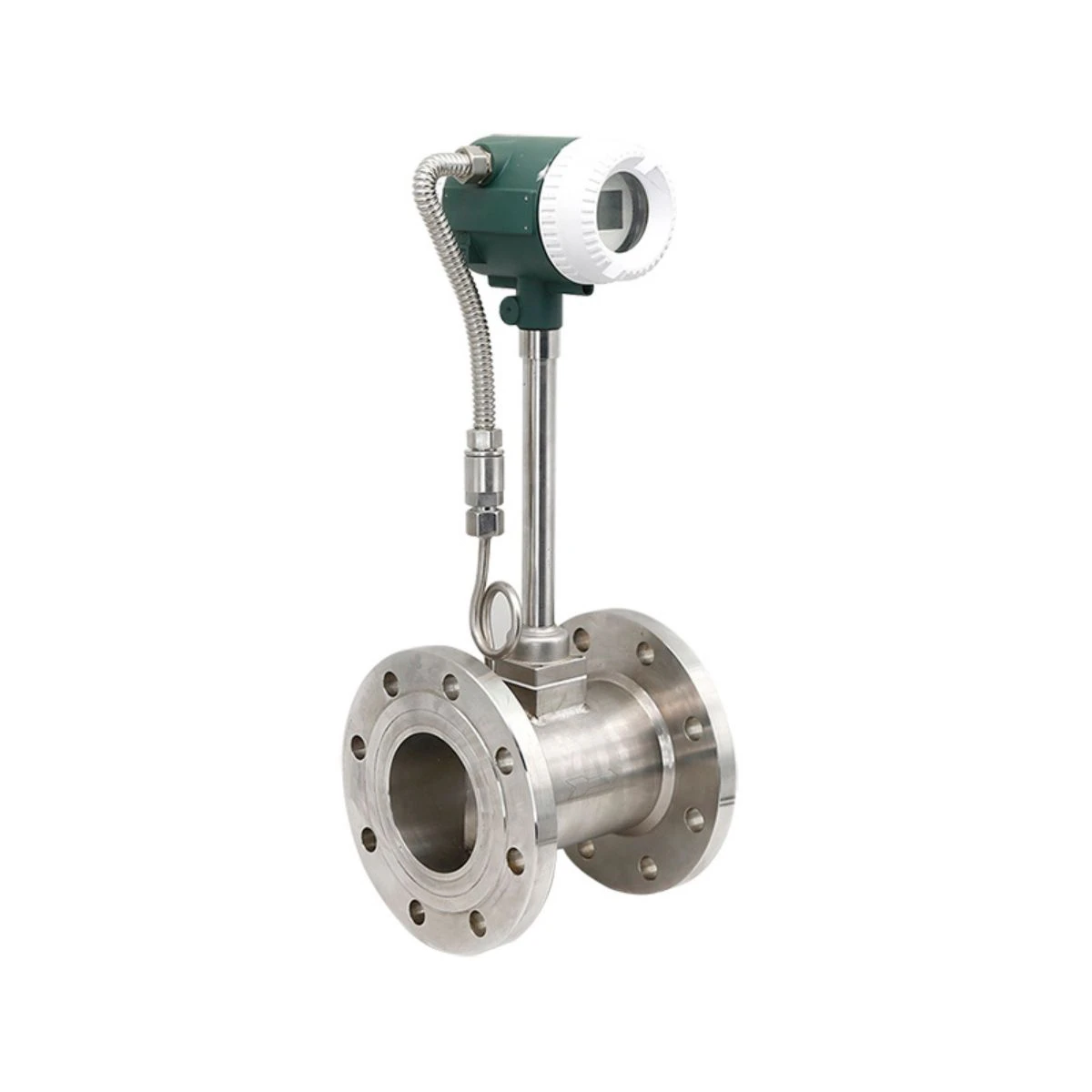

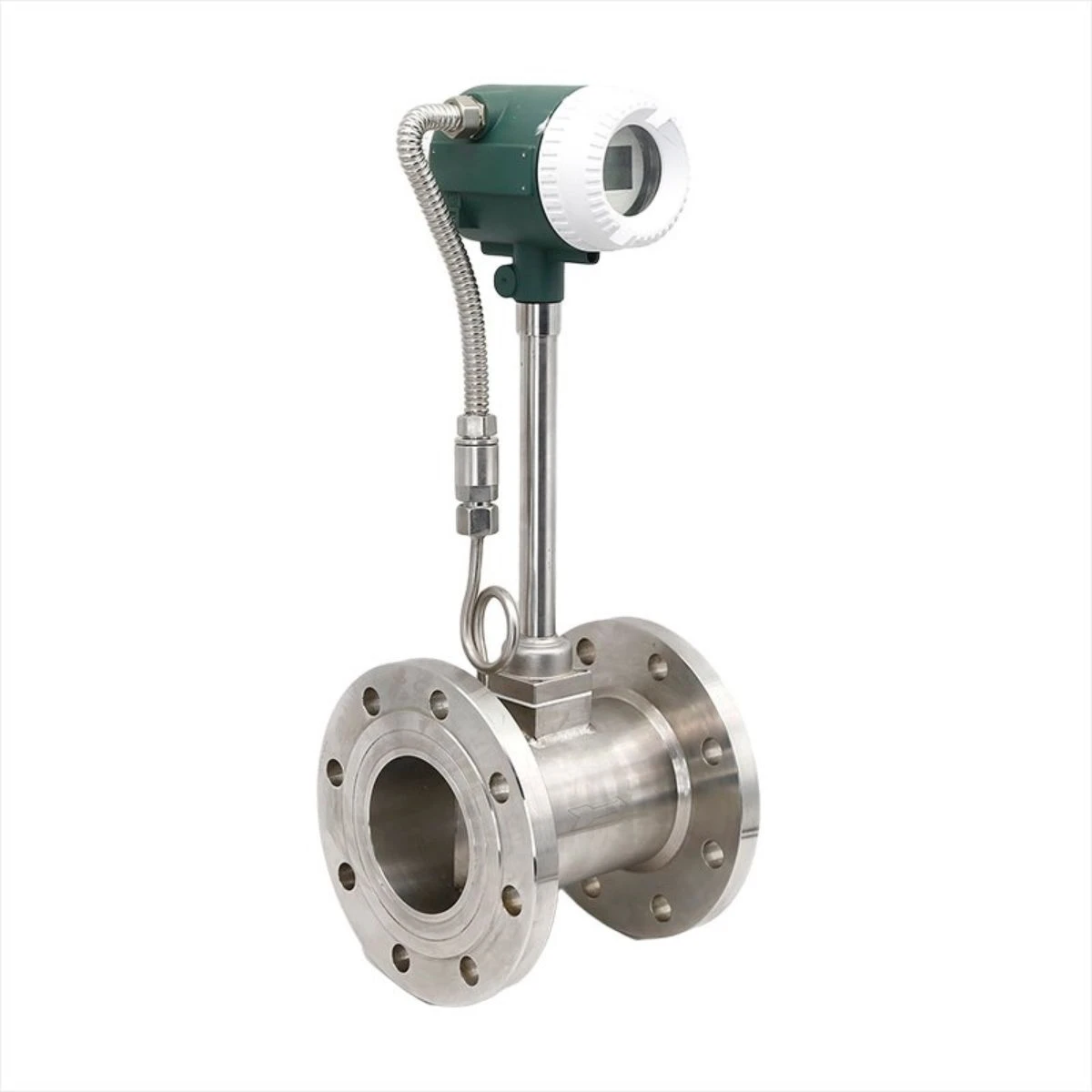

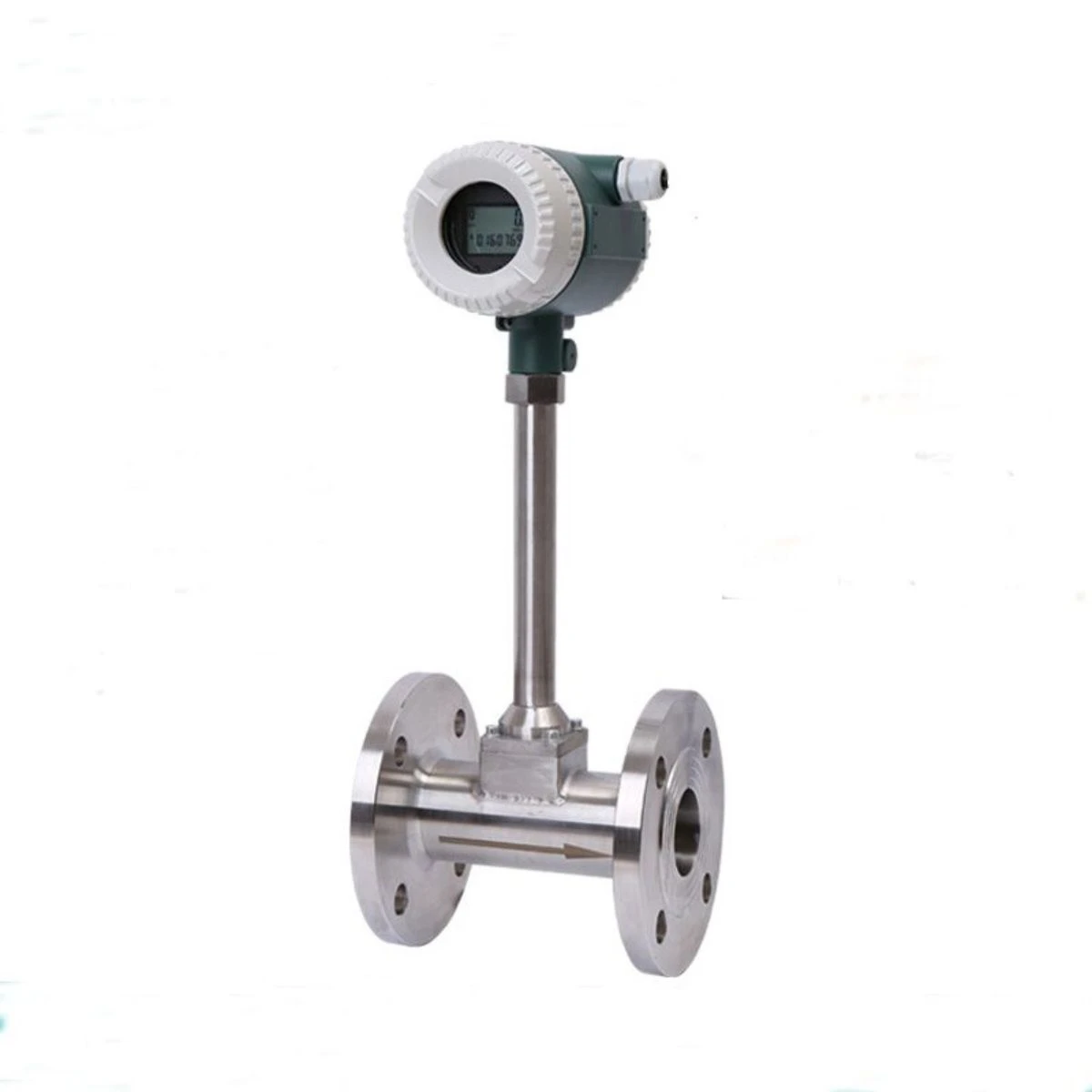

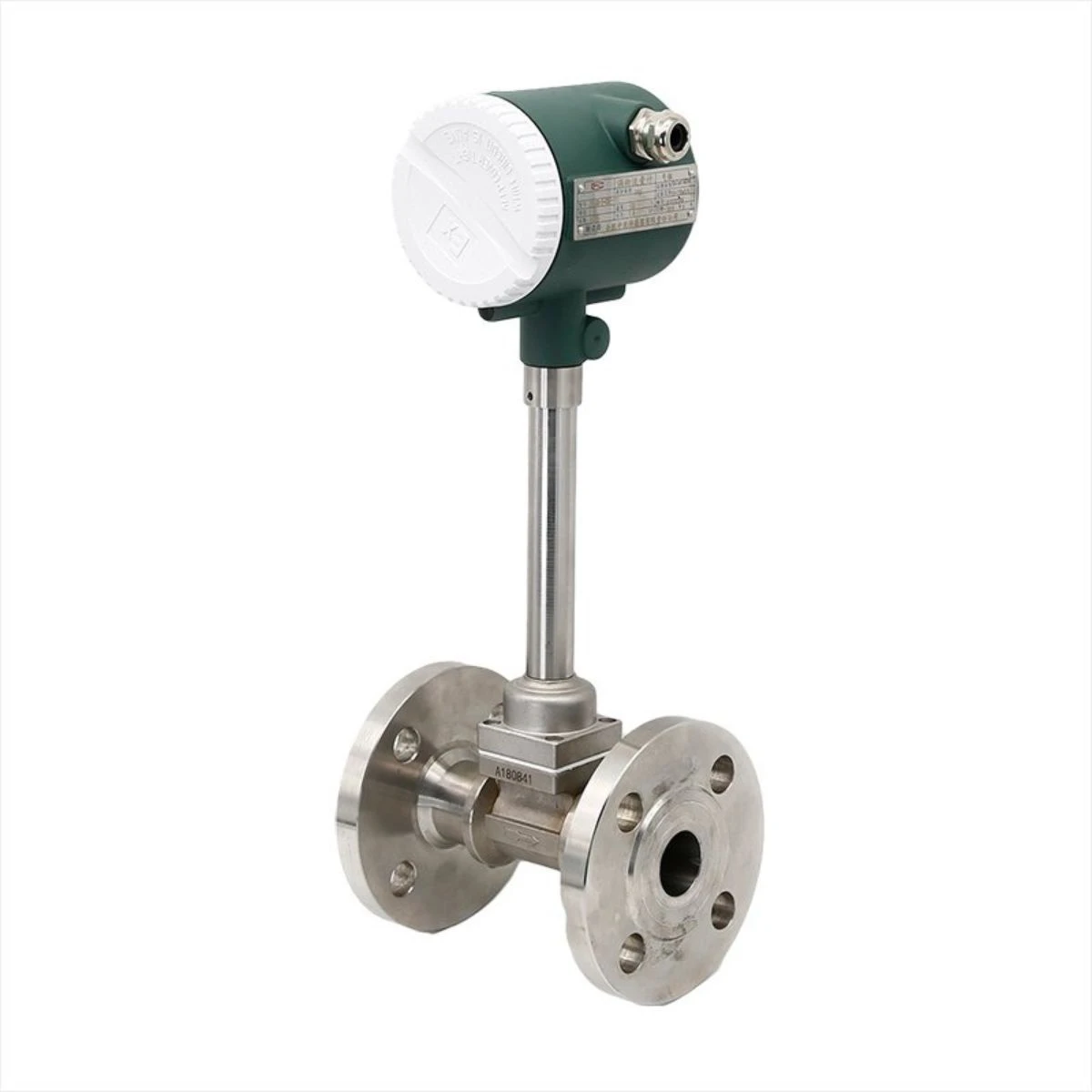

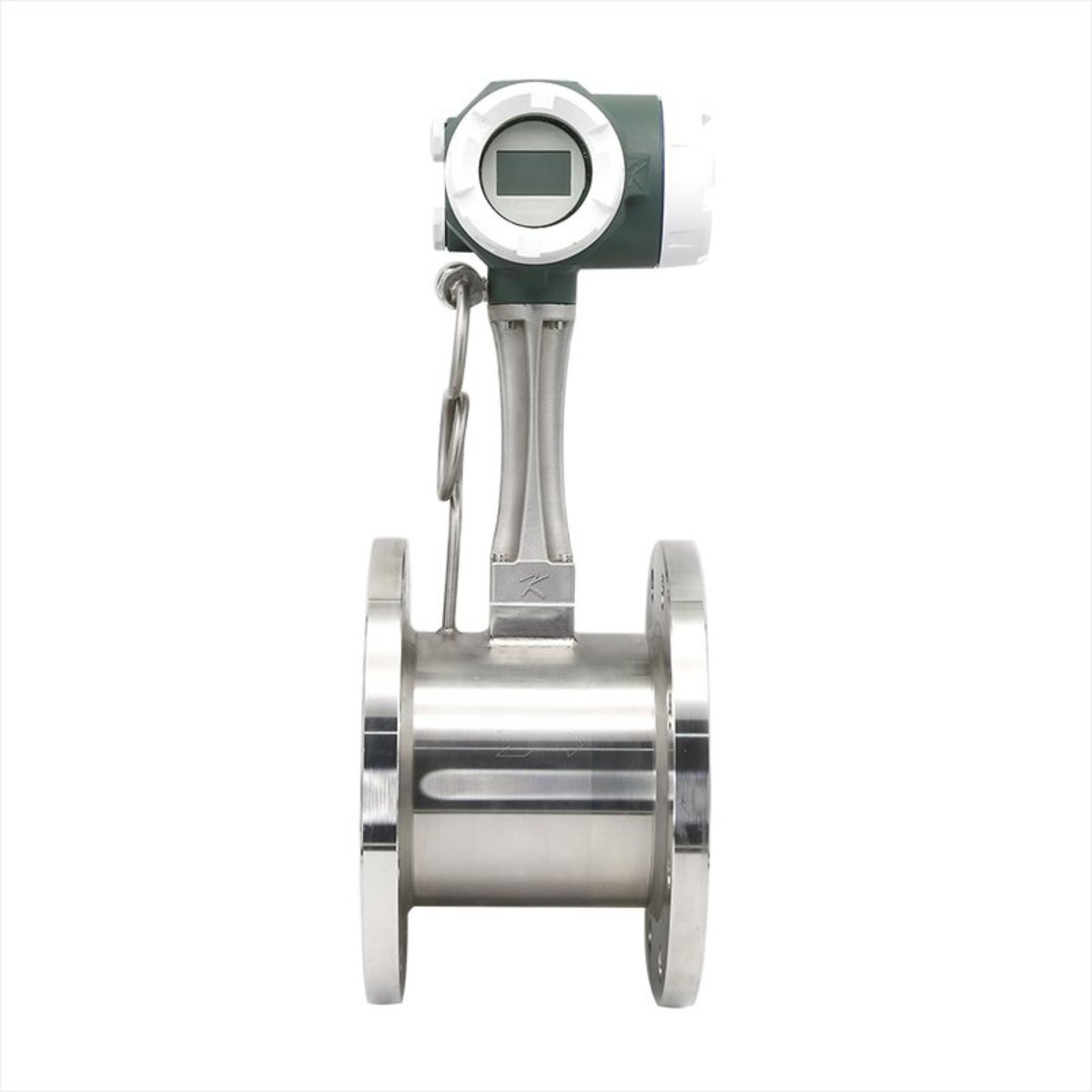

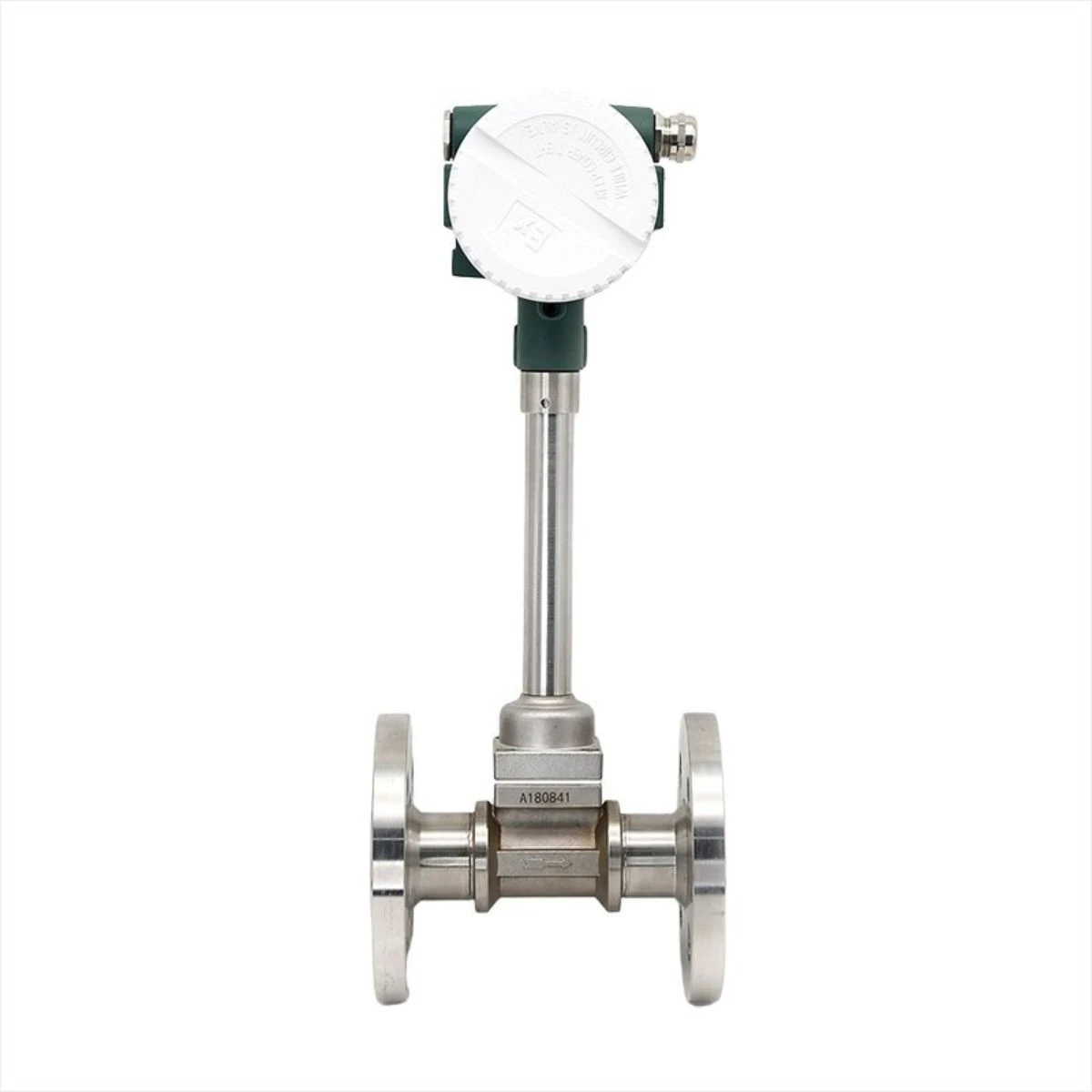

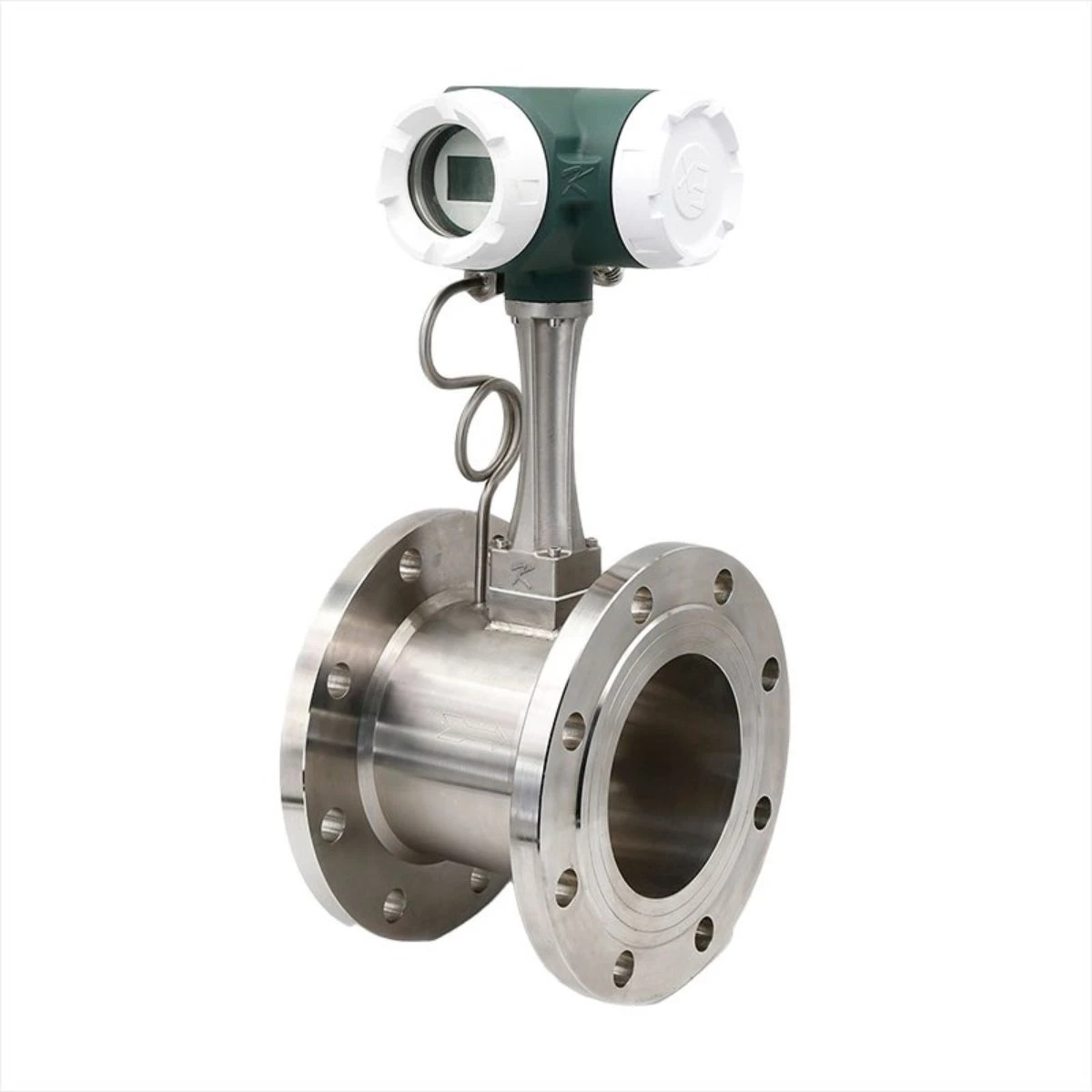

Industrial Vortex Flowmeter, High Precision Steam Gas Liquid Flow Meter for Pipeline Industrial Working Condition
Empowering Global Industry with Advanced Precision Technology
Product Advantages
No moving internal parts, wear-free and ultra-low maintenance cost
Wide measuring range ratio, stable measurement under small and large flow
Slight pressure loss, less pipeline energy consumption
High measurement accuracy, barely affected by temperature, pressure and viscosity
Compatible with gas, liquid and steam three-phase media
Compact integrated structure, easy installation and disassembly
Multiple signal outputs to match PLC, DCS control system
Various sensor materials available for anti-corrosion demand
Optional explosion-proof design for flammable and explosive working sites
Long service life, stable long-term operation performance
Introduction
Technical Parameters
Design features
Product Features and Model Parameters
Vortex street principle, no moving parts, long service life
Suitable for liquid, gas and saturated steam measurement
Small pressure loss, energy-saving pipeline operation
Wide turndown ratio, stable at low and high flow rates
Built-in temperature & pressure compensation version optional
Local LCD display for instant flow and total flow
Multiple output signals to connect industrial control systems
Various anti-corrosion sensor materials for different media
Optional explosion-proof grade for hazardous areas
Simple flange installation, easy on-site maintenance
Power supply
24V DC
Output signal
4~20mA+RS485
Process temperature
40-45℃
| Model | NY-LUBG -80 |
| Power supply | 24V DC |
| Output signal | 4~20mA+RS485 |
| Process temperature | 40-45℃ |
| Pressure | 1.6Mpa |
| Process pressure | Flange DN80 PN16 SS 304RF |
| Material | SS304 |
| Range | 70-640m3/h |
| Accuracy | 1.5% |
| Protection type | IP65 |
Main Functions
Real-time measure instantaneous flow of gas, liquid and steam
Calculate and display cumulative total flow volume
Optional temperature & pressure compensation for accurate mass flow calculation
Output pulse / 4-20mA / RS485 signals to PLC and DCS systems
Detect abnormal flow and send alarm signals
Application Scenarios
Heating industry: Saturated steam flow metering for boiler pipelines
Petrochemical: Gas, solvent liquid and process steam monitoring
HVAC: Compressed air, cold/hot water flow measurement
Food & pharmaceutical: Process gas and pure liquid flow control
Metallurgy: Compressed air and cooling water pipeline measurement
Municipal engineering: Natural gas, industrial water flow statistics
Power plant: Auxiliary steam and cooling medium flow monitoring
RELATED PRODUCTS
The Vortex Flowmeter is a high-performance industrial measuring instrument designed for accurate and reliable flow measurement of gas, liquid, and steam in various industrial working conditions. With its advanced vortex shedding principle, it delivers stable performance, low maintenance costs, and strong adaptability, making it an ideal choice for a wide range of industrial applications.
