Product Advantages
● No maintenance required, no wearing parts, long service life.
● No need for on-site calibration, plug and play.
● Excellent anti-interference, not affected by foam, vibration and medium adhesion.
● 316L stainless steel material, corrosion resistant and sanitary.
● Compact structure, easy installation and space-saving.
● Wide temperature and pressure range, suitable for complex working conditions.
● Stable switch signal output, compatible with PLC control system.
● Widely used in liquid, powder and granular material level detection.
Introduction
Technical Parameters
Video
Design Features
Maintenance-free design
No moving mechanical parts, no wear and tear, long service life, free from daily maintenance.
No on-site calibration required
Ready for use after installation. Not affected by medium density, conductivity, viscosity, foam or turbulence.
Strong anti-interference capability
Stable detection against tank vibration, air bubbles, material adhesion and harsh on-site working conditions.
Premium corrosion-resistant material
Adopts 316L stainless steel for tuning fork and 304/316 stainless steel for housing, suitable for chemical, food, pharmaceutical and sanitary applications.
Compact & lightweight structure
Small size and light weight, easy to install, ideal for limited space and pipeline mounting.
Wide operating condition adaptability
Wide temperature range, available in standard and high-temperature versions to meet complex industrial working conditions.
Reliable electrical connection

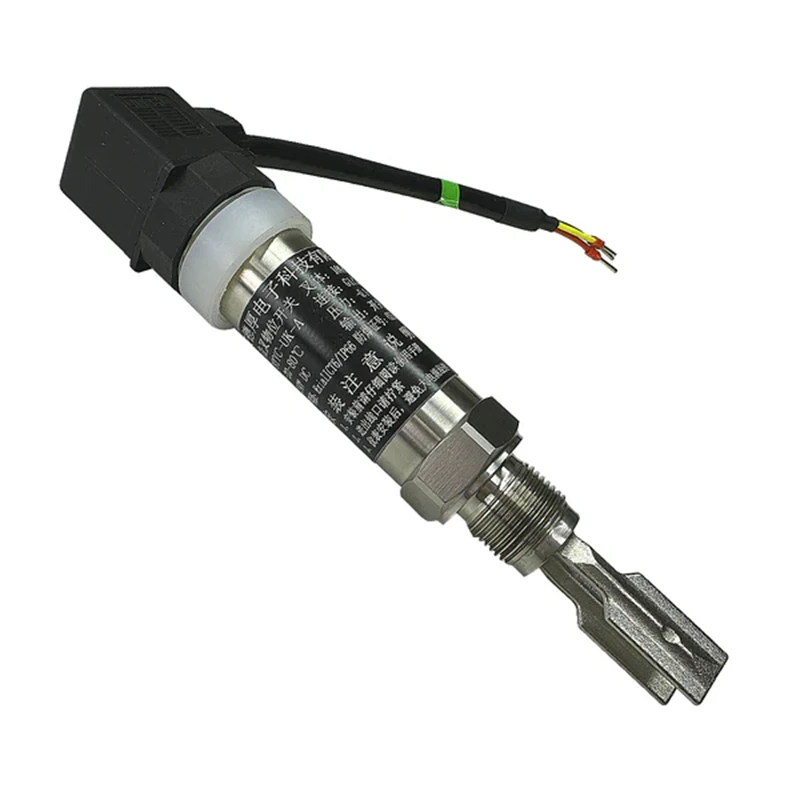

Equipped with standard Hirschmann connector, quick plug-in installation, good sealing and high protection performance.
Versatile application
Suitable for level limit detection of liquids, powders and granular materials in various industries.
Fork Length
40CM 100CM
Singal Output
PNP NPN SPDT
Thread
1/2" 3/4" 1"
|
Typical application |
High and low level alarm of liquid, dust and other media |
|
Product model |
NYYCUK – A |
|
Body Material |
SS304 |
|
Fork Material |
SS316 |
|
Fork length |
40cm, 100cm |
|
Power supply |
24VDC |
|
Signal output |
Relay Output, PNP, NPN, Normal, Close Relay Output, Normal Open Relay Output |
|
Process temperature |
–20 – +80℃ |
|
Process pressure |
1.0MPa |
|
Process |
Thread |
|
Protection grade |
IP 66 |
|
Explosion – proof grade |
Ex ia Ic T6 Gb;Ex ib c T80'e Db |

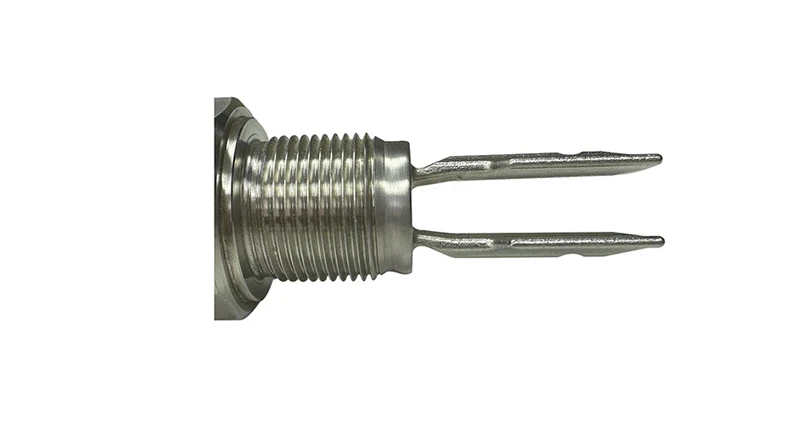

Main Functions
Point level detection for liquid, powder and granular materials
High / low level alarm and empty / full tank protection
Pipeline blockage monitoring and chute jam detection
Liquid interface measurement of two different media
Material feeding and discharging automatic control
Resist foam, bubble, turbulence and material adhesion interference
Relay signal output for connecting PLC and industrial control system

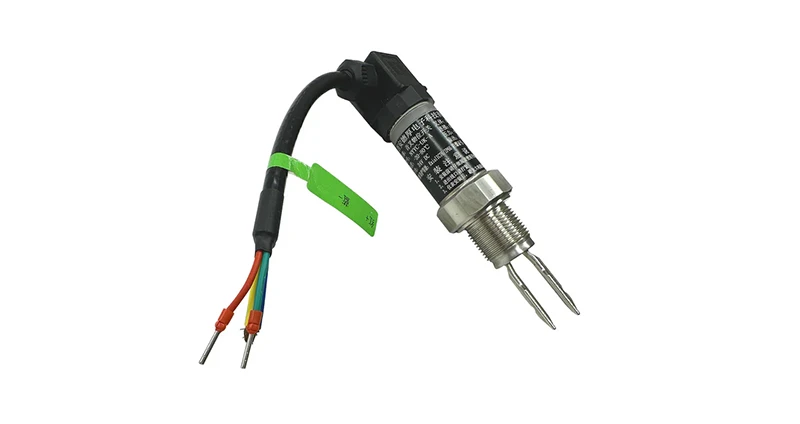

Application Scenarios
Chemical Industry: Tank limit level detection, overfill and empty protection
Food & Beverage: Sanitary level monitoring of liquid, powder and grain materials
Pharmaceutical Industry: Liquid and powder material level control in production
Water Treatment: Sewage, clean water and dosing tank level detection
Building Material & Cement: Silo and hopper powder/granule level monitoring
Power Plant: Chemical tank and ash bin level alarm
Conveying System: Pipeline and chute blockage detection

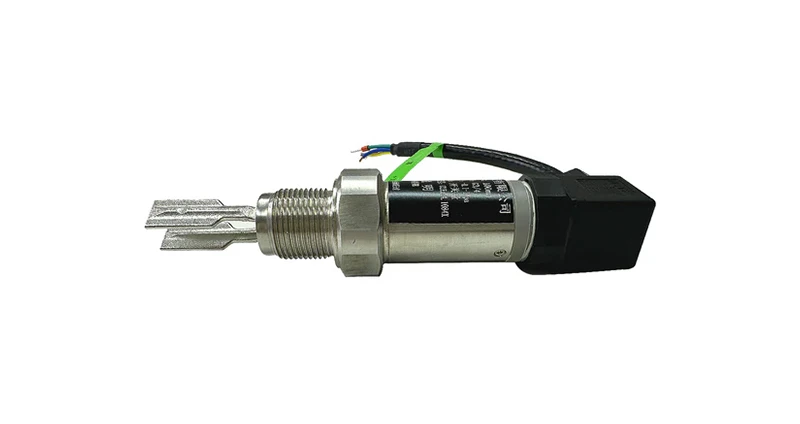

Application Scope and Notes
Suitable for level measurement of liquid, powder and granular materials.Widely used in chemical, food, pharmaceutical, water treatment, building materials, power and other industrial fields.
Avoid installation at material inlet and strong vibration positions.
Keep the tuning fork away from wall and pipeline to avoid false detection.
Do not use in strong corrosive medium beyond material tolerance.
Ensure correct wiring and reliable sealing for electrical connection.
Prevent heavy impact on the tuning fork probe during installation.
