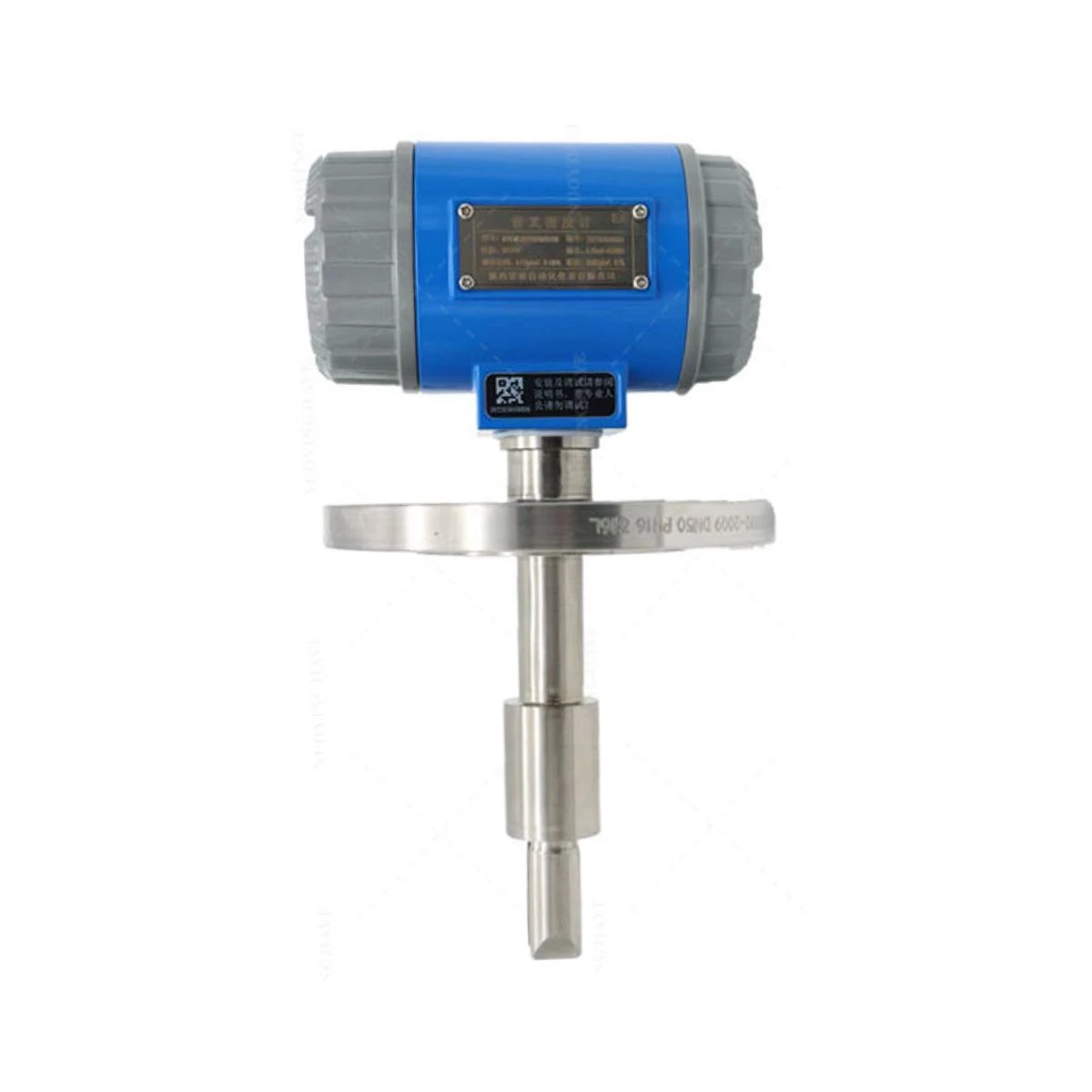

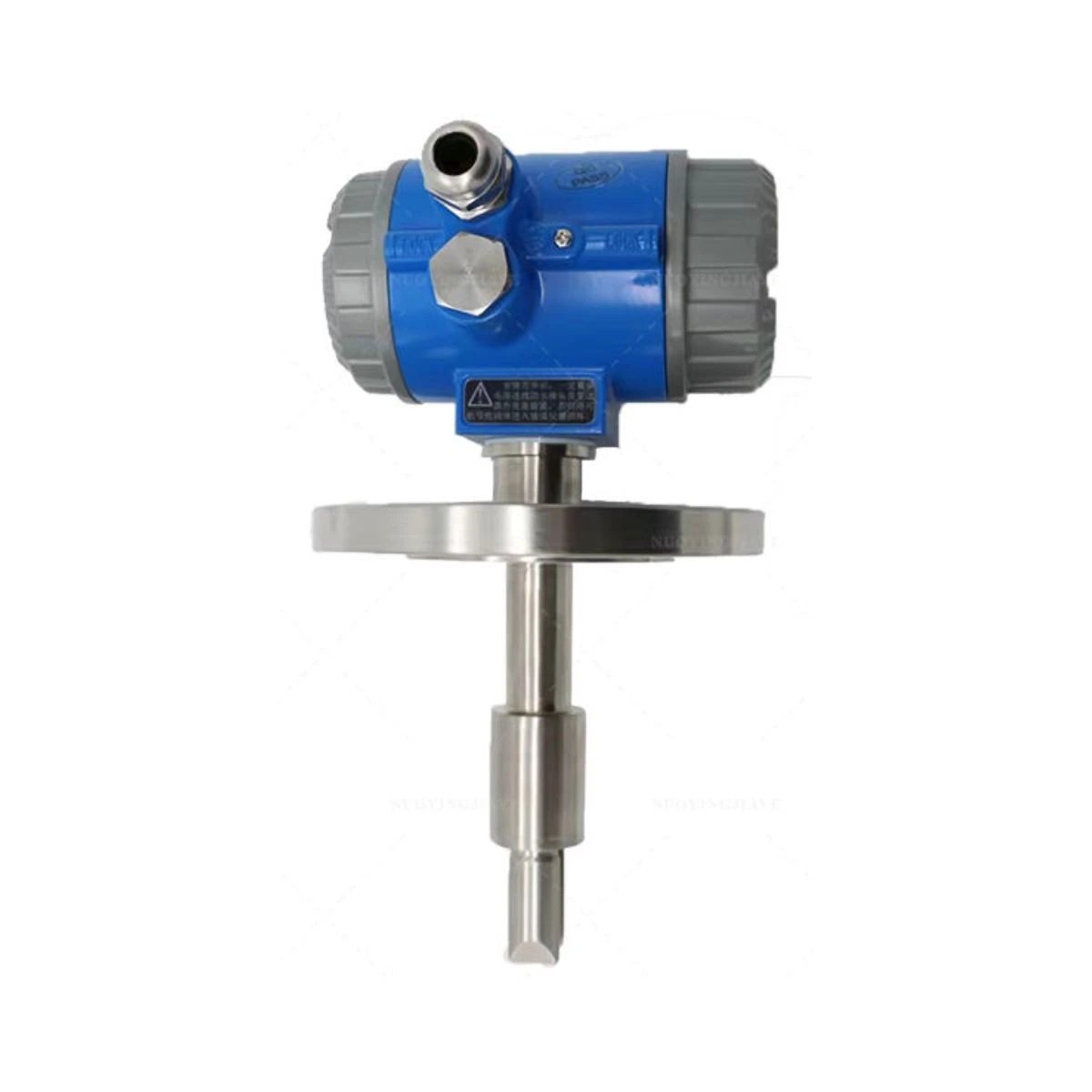

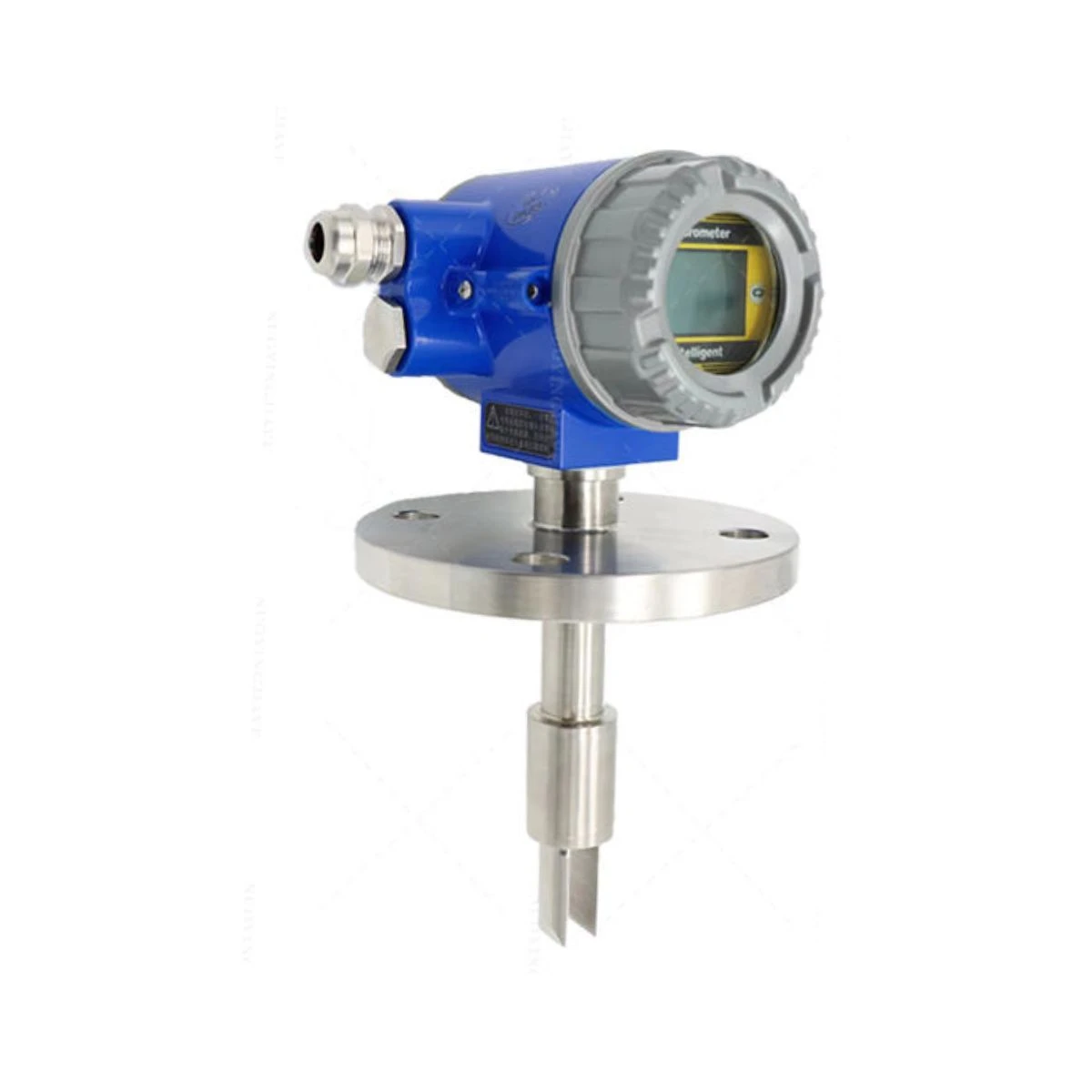

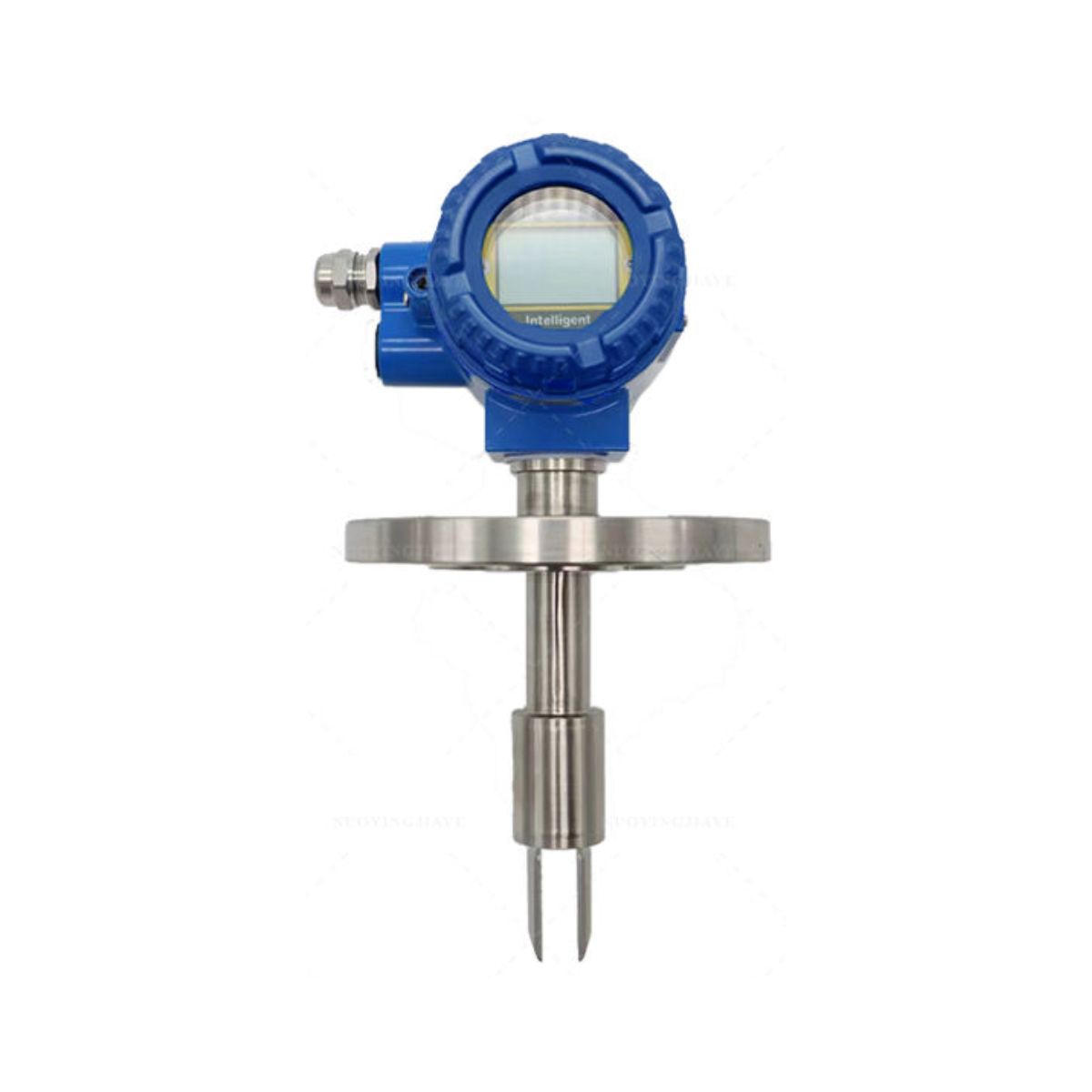

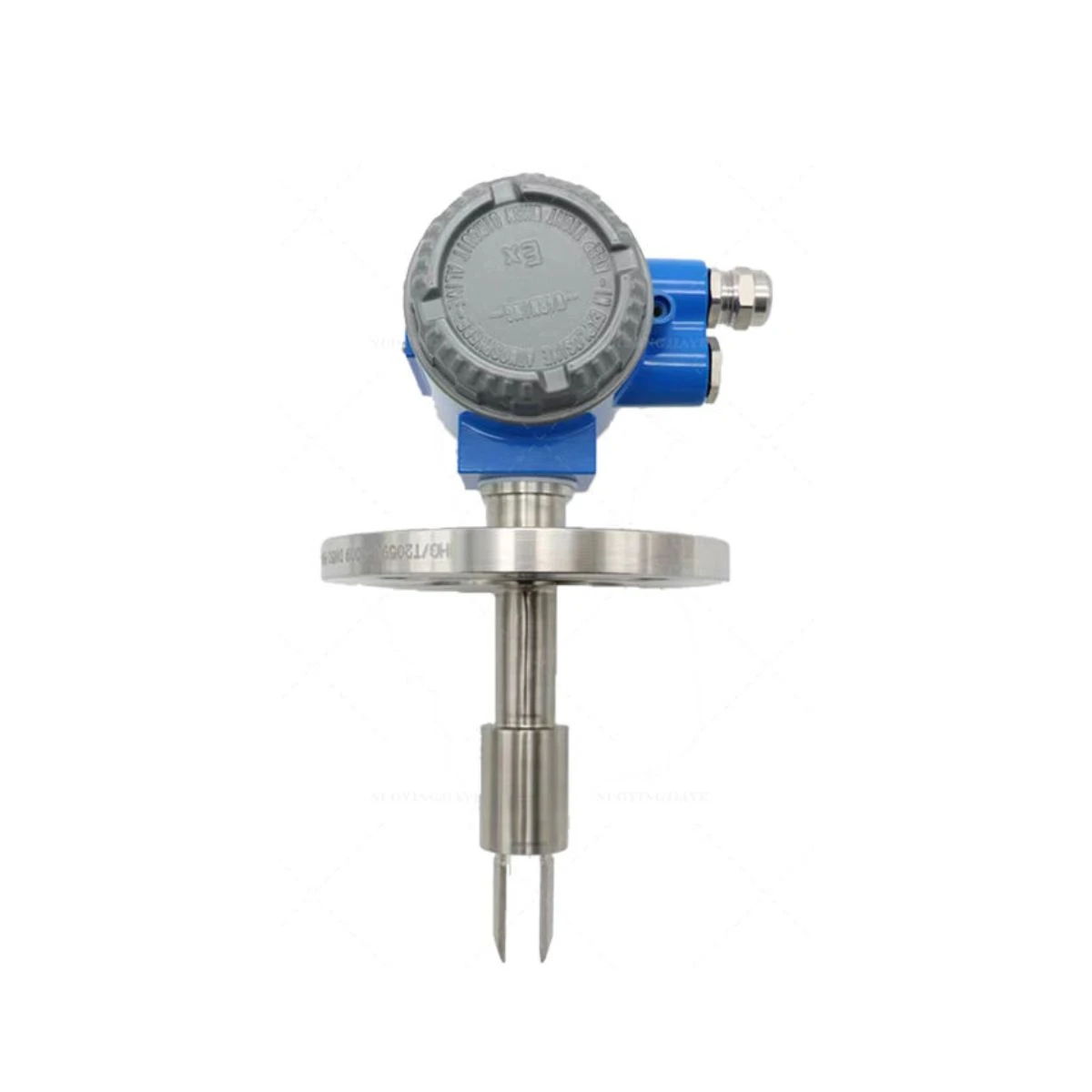

On-line Digital Display Tuning Fork Densimeter for Measuring Ammonia Water, Lime Slurry and Ore Slurry
Empowering Global Industry with Advanced Precision Technology
Product Advantages
High measurement accuracy with built-in automatic temperature compensation, effectively eliminating density deviation caused by medium temperature changes.
Compact probe structure, supporting insertion installation on pipelines, reaction kettles and storage tanks without complex pipeline modification.
Anti-clogging vibrating fork sensor design, stable measurement for liquids containing tiny particles, slight slurry and viscous media.
Wide measuring range, adaptable to various industrial fluids such as chemical solvents, oil, beverage and pharmaceutical liquid.
Low maintenance cost, no movable mechanical parts inside, reducing wear and frequent calibration frequency.
Multiple signal output options including 4-20mA, RS485/Modbus, convenient for connection with PLC and DCS control systems.
Explosion-proof and corrosion-resistant optional configurations, suitable for hazardous, acid and alkali industrial working environments.
Fast response speed, real-time continuous online monitoring of medium density and concentration for automated production control.
Introduction
Technical Parameters
Design features
Product Features and Model Parameters
Resonance Principle: Adopts tuning fork resonance for continuous, stable inline density and concentration measurement.
Automatic Temp Compensation: Built-in temperature sensor corrects temperature-induced measurement errors.
Maintenance-Free: Solid-state structure without moving parts, low failure rate and long service life.
Anti-Clogging Design: Adapts to clean liquid, viscous liquid and micro-particle slurry.
Flexible Installation: Compact probe supports top/side insertion for pipes and tanks.
Multiple Outputs: 4-20mA and RS485 Modbus, compatible with PLC/DCS/SCADA systems.
Corrosion Resistance: Optional 316L, Hastelloy C-276 and PTFE coating for diverse media.
Industrial Safety: IP67 protection grade, optional Ex ia IIC T6 Ga explosion-proof.
Fast Response: Quick data update to support automatic production control.
Easy Operation: Simple on-site calibration, optional local LCD display.
Fork length
150mm
Signal output
4～20 mA
Operating temperature
≤ 85℃
| Measuring range | 0.5～2.5g/cc(500–2500kg/m³) |
| Signal output | 4～20 mA |
| Fork body coating | PTFE |
| Operating temperature | ≤ 85℃ |
| Process pressure | 1.0MPa |
| Fork length | 150mm |
Main Functions
Real-time continuous measurement of liquid density
Automatic temperature compensation and density correction
Auto calculate liquid concentration via density-temperature curve
Transmit measuring data via 4-20mA and RS485 Modbus
Local real-time data display (optional LCD)
Support two-point on-site calibration
Application Scenarios
Petrochemical industry: crude oil, fuel oil, solvent density detection
Food & beverage: syrup, juice, wine, brine concentration monitoring
Fine chemical: acid, alkali, mixed solution online measurement
Pharmaceutical industry: liquid medicine, reagent concentration control
Water treatment: brine, wastewater density monitoring
New energy: electrolyte liquid density testing
Production tanks, pipelines and reaction kettles inline monitoring
RELATED PRODUCTS
This tuning fork density meter adopts vibrating resonance principle with automatic temperature compensation to deliver high-precision continuous density & concentration measurement for industrial liquid media in pipes and tanks.
