Two independent channels for separate signal processing, saving installation space and cost.
High measurement accuracy and fast response for both channels.

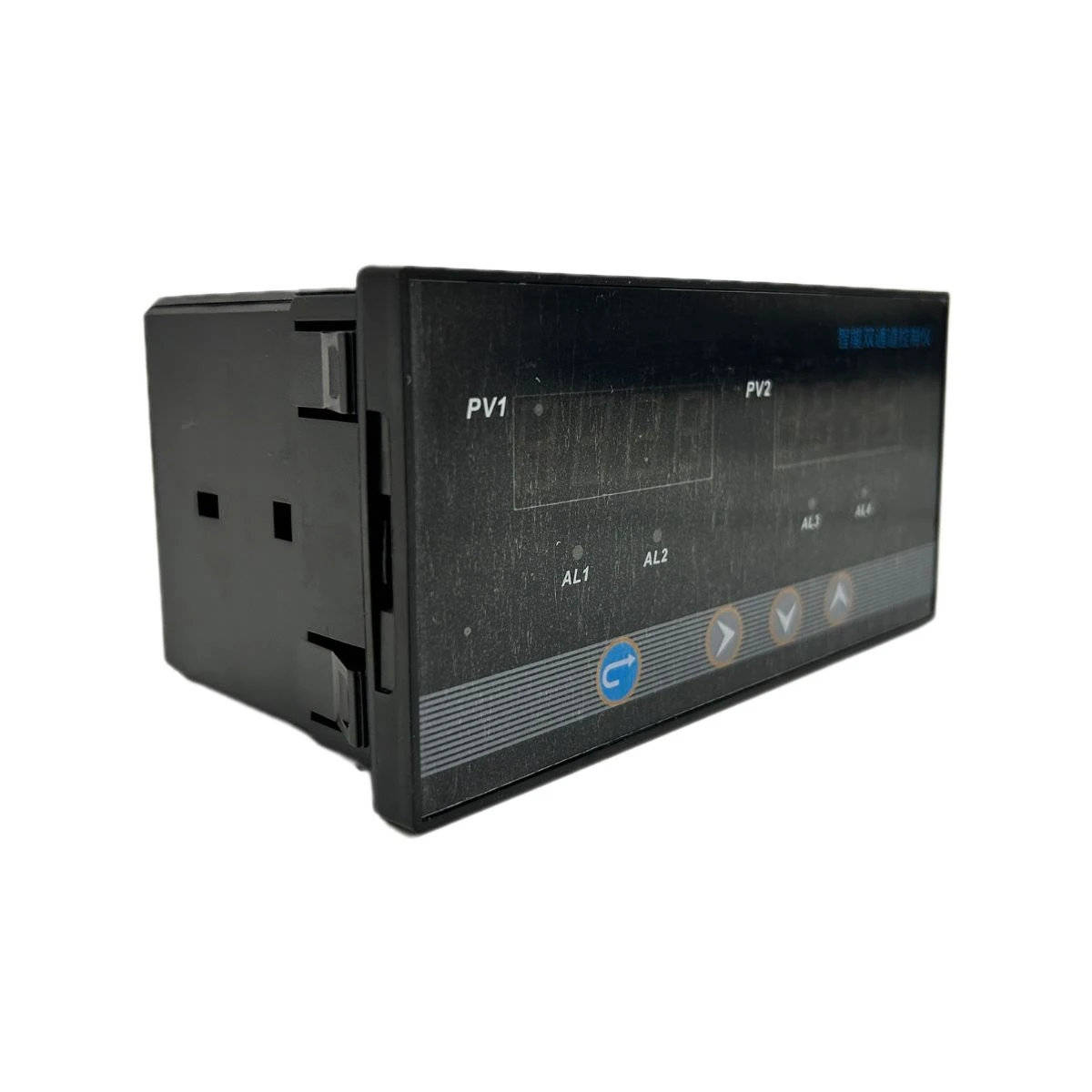

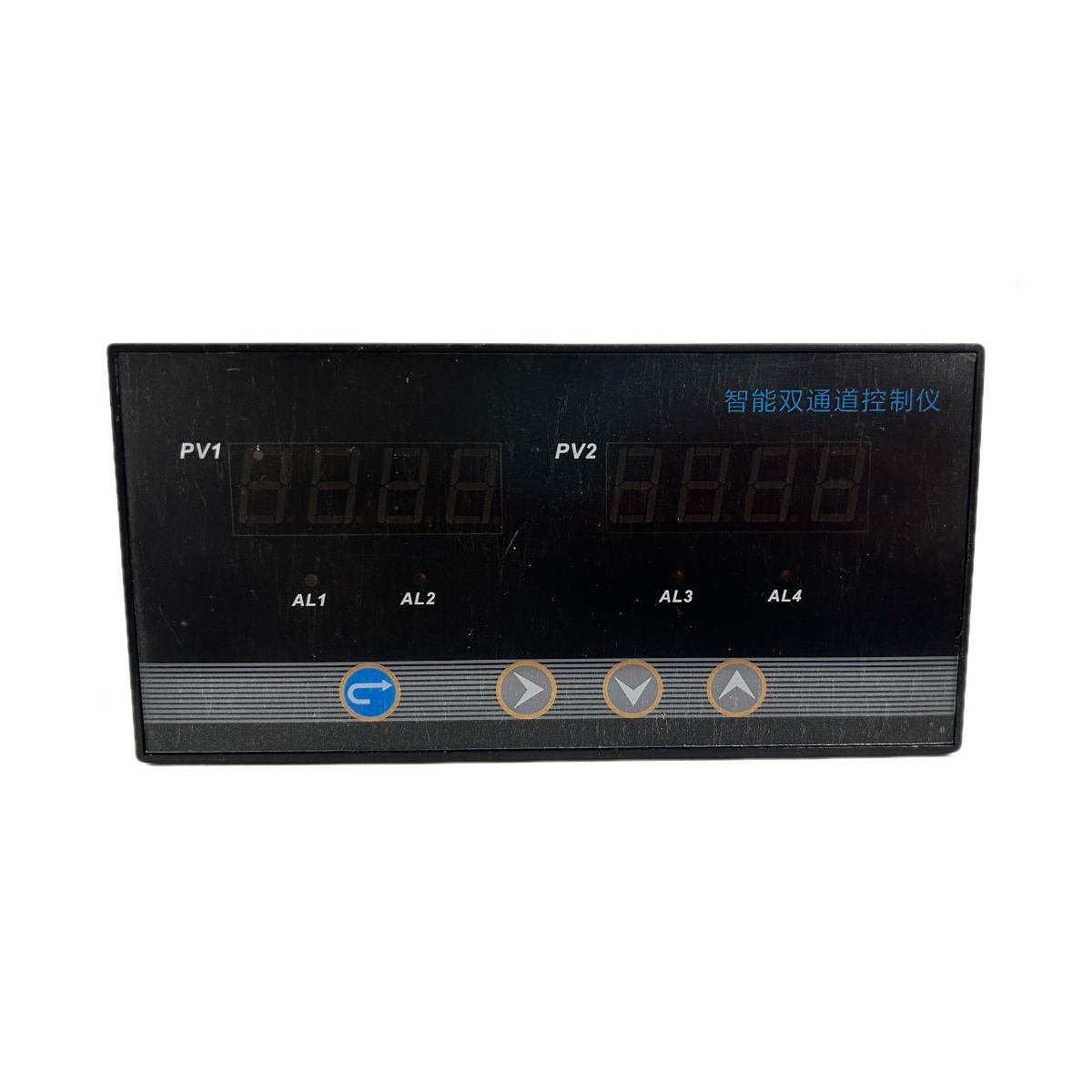

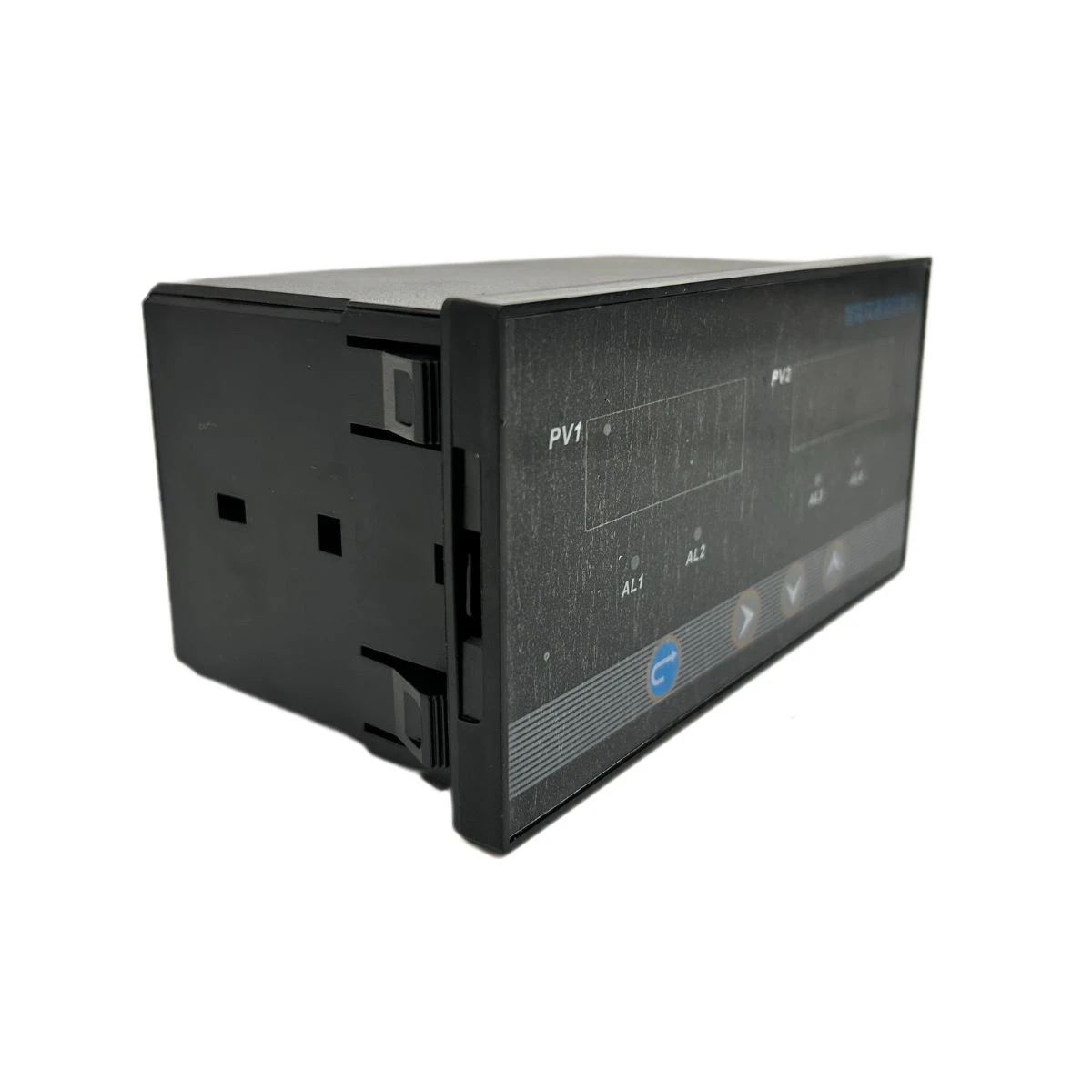

Dual display design, clearly showing two groups of data simultaneously.
Wide compatibility with various standard sensor input signals.
Independent alarm and control functions for each channel.
Simple keypad operation, easy for parameter setting and debugging.
Built-in overvoltage, overcurrent and reverse polarity protection.
Compact structure, DIN rail mounting for quick installation.
Strong anti-interference capability, stable operation in complex industrial environments.
Low power consumption and long service life with low maintenance.
Introduction
Technical Parameters
Design features
Product Features and Model Parameters
Two fully independent channels, working separately without mutual interference.
High precision sampling and fast response speed for both channels.
Dual digital display to show two groups of process data in real time.
Compatible with multiple standard input signals from various sensors.
Each channel supports independent parameter configuration, control and alarm functions.
Built-in overvoltage, overcurrent and reverse polarity protection circuits.
Excellent electromagnetic interference resistance for reliable operation in harsh industrial sites.
Simple button operation, easy commissioning and maintenance.
Compact structure, standard DIN rail mounting for quick installation.
Low power consumption, stable performance and long service life.
Transmission Output Accuracy
0.15%
Communication Protocol
RS485
Product
Basic Meter Add Transmitter Output Add Communication Output
| Working Power Supply | AC/DC86~230V (High-Voltage Type), DC18-30V (DC Low-Voltage Type) |
| Basic Error | ±0.15%FS |
| Measurement Rate | 10 Times/Second |
| Display Refresh Time | 1 Second |
| Anti-Interference Ability | IEC61000-4-2 Electrostatic Discharge Immunity, Level III |
| IEC61000-4-4 Fast Transient Burst Immunity, Level III | |
| Power Supply Output | DC24V/45mA |
| Transmission Output Signals | 0~20mA, 4~20mA, 0~10V, etc. |
| Transmission Output Load Capacity | ≥500 Ohms |
| Transmission Output Accuracy | 0.15% |
| Communication Protocol | RS485 ModbusRTU Protocol |
| Relay Contact Capacity | AC250V/5A |
| Working Temperature | -20~50℃, 20~90%RH |
Main Functions
Collect and display two groups of process signals in real time via dual independent channels.
Support independent parameter setting, calibration and range adjustment for each channel.
Provide upper and lower limit alarm with relay output for each channel.
Convert and retransmit signals through isolated analog output.
Adopt digital filtering to effectively suppress on-site interference.
Power-off data retention to save all configured parameters.
Multiple safety protection functions to ensure stable equipment operation.
Independent control logic for two channels to meet dual-point control demands.
Application Scenarios
Simultaneous monitoring and control of liquid level, pressure and temperature in industrial tanks and pipelines.
Supporting dual sensors such as level transmitters, pressure and temperature transmitters.
Dual-parameter monitoring in chemical, petrochemical and water treatment industries.
Dual-point alarm and signal transmission for electromechanical and automation equipment.
Process parameter control for food, pharmaceutical and metallurgical production lines.
Dual-channel data collection and control for small automated systems.
Environmental monitoring and building automation with dual detection points.
Application Scope
Chemical & petrochemical industries: Dual-parameter monitoring and control for storage tanks, reaction kettles and pipelines.
Water treatment: Simultaneous detection and alarm of water level, pressure and flow in water pools and dosing systems.
Power industry: Dual-point parameter monitoring of auxiliary equipment in power plants.
Food & pharmaceutical: Production process control and safety monitoring for workshops and storage facilities.
Metallurgy & building materials: Material level and equipment status monitoring of silos and production lines.
General industrial automation: Matching with various sensors for dual-channel signal acquisition and control.
Environmental protection: Dual-index monitoring for waste gas, wastewater and ambient environment.
Notes
Verify the power supply specification before wiring to avoid device burnout.

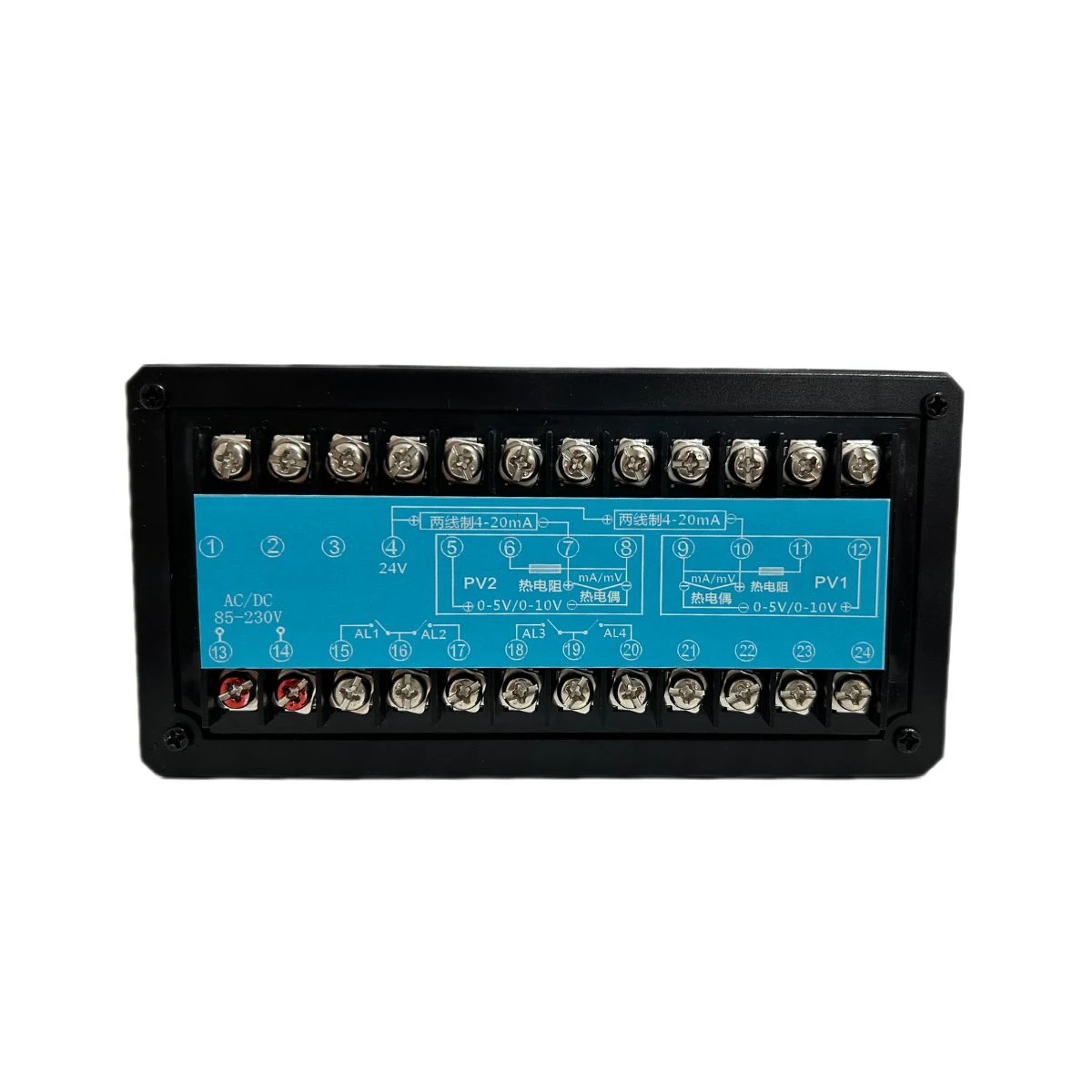

Distinguish power terminal, channel 1 and channel 2 input/output terminals strictly during wiring.
Keep the controller away from high-power electromagnetic equipment to avoid signal crosstalk.
Install in dry, ventilated environment without corrosive gas, dust and condensed water.
Two channels shall not access conflicting high-frequency signals to ensure independent operation.
Cut off power supply before maintenance, wiring modification and parameter resetting.
Equip reliable grounding to enhance anti-interference performance of dual channels.
Do not operate beyond rated temperature, humidity and load range.
Unauthorized disassembly will invalidate the after-sales warranty service.
Set independent alarm parameters for two channels according to on-site working conditions.
