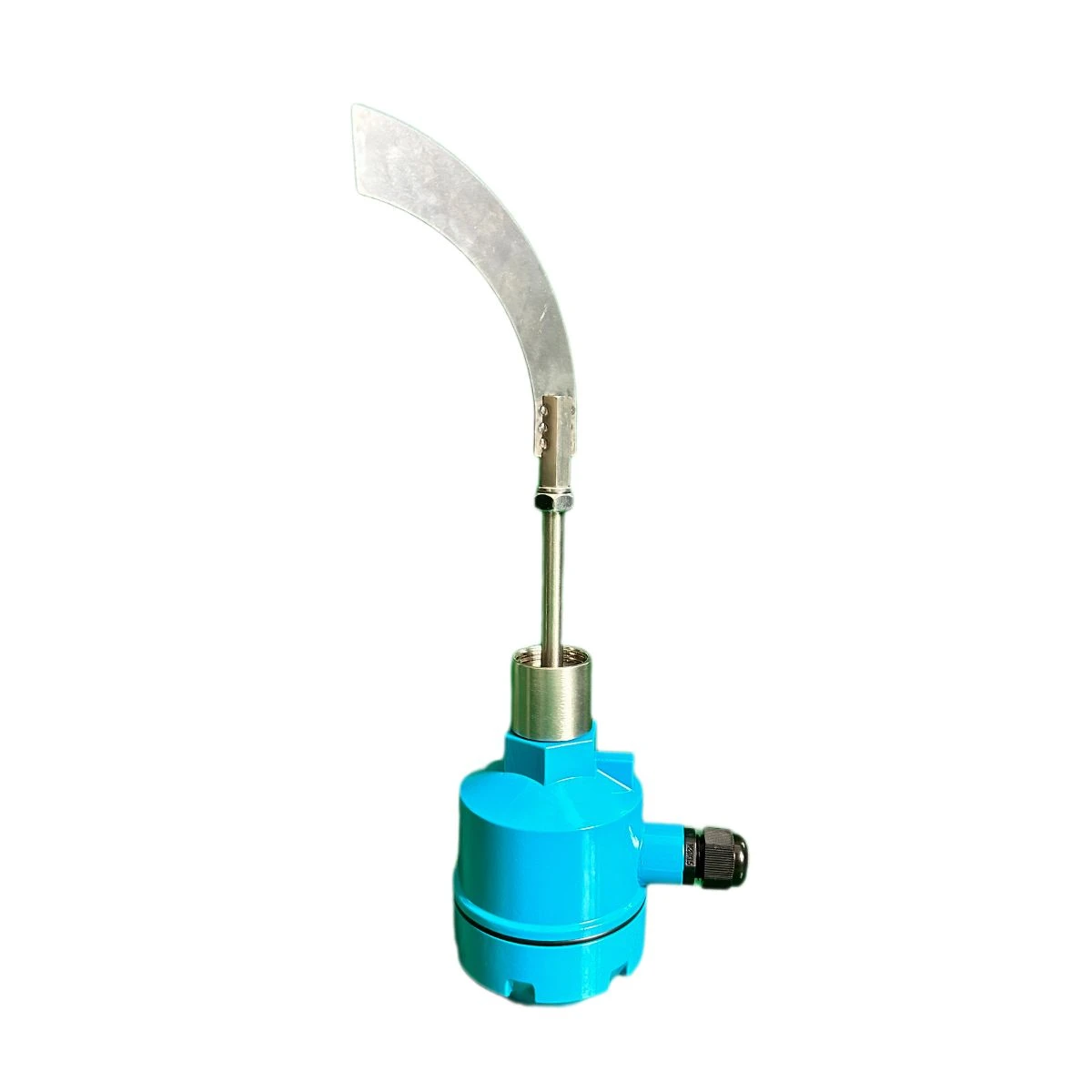

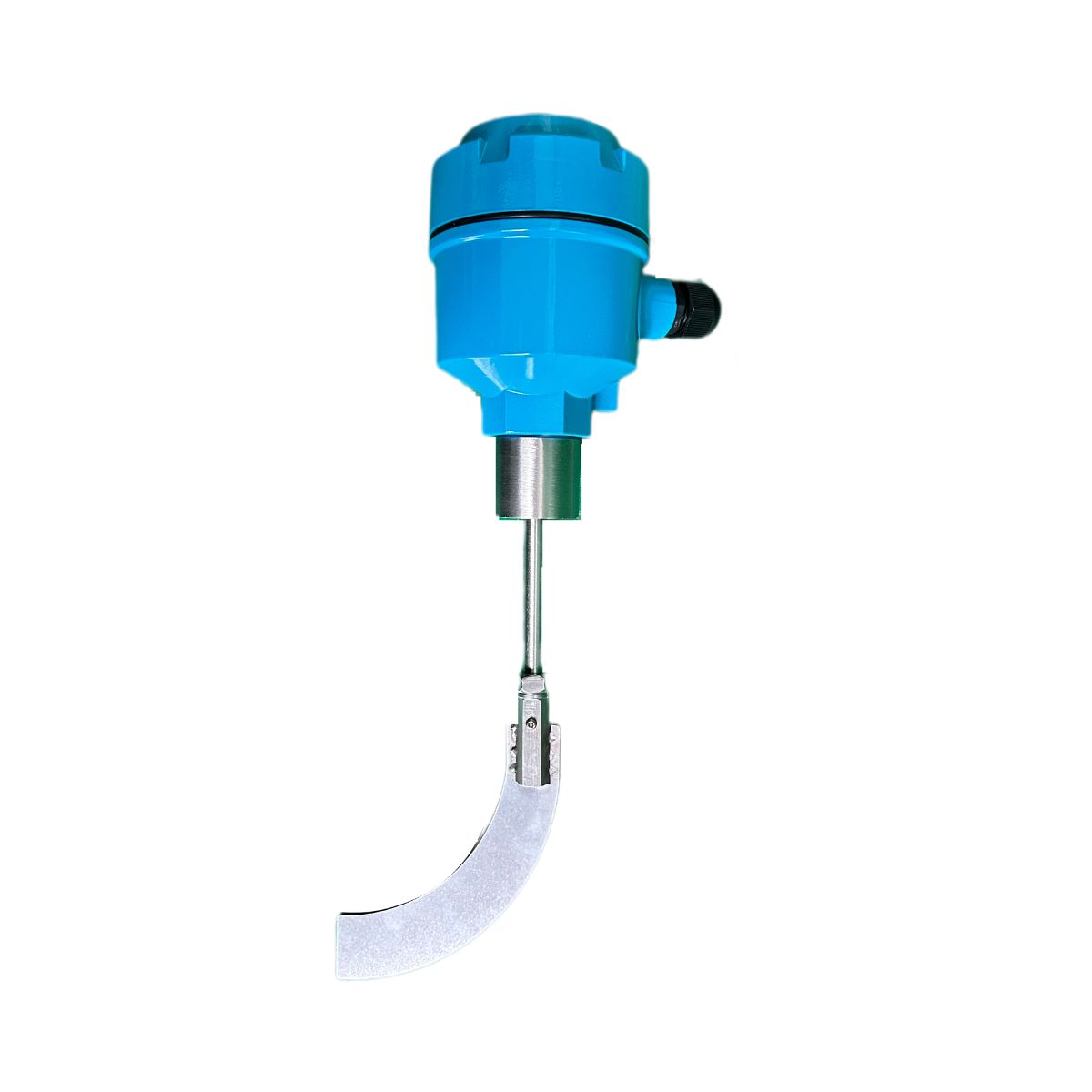

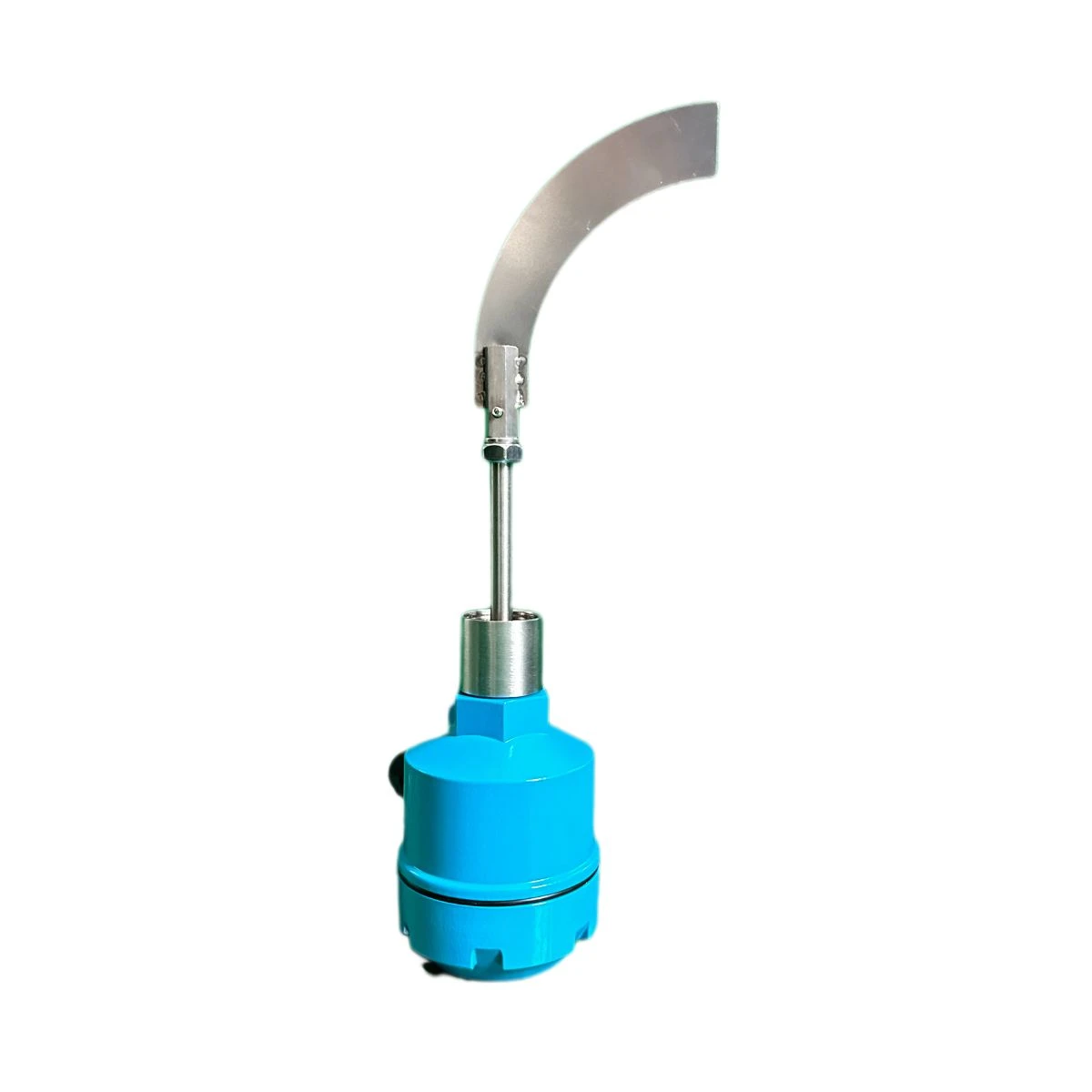

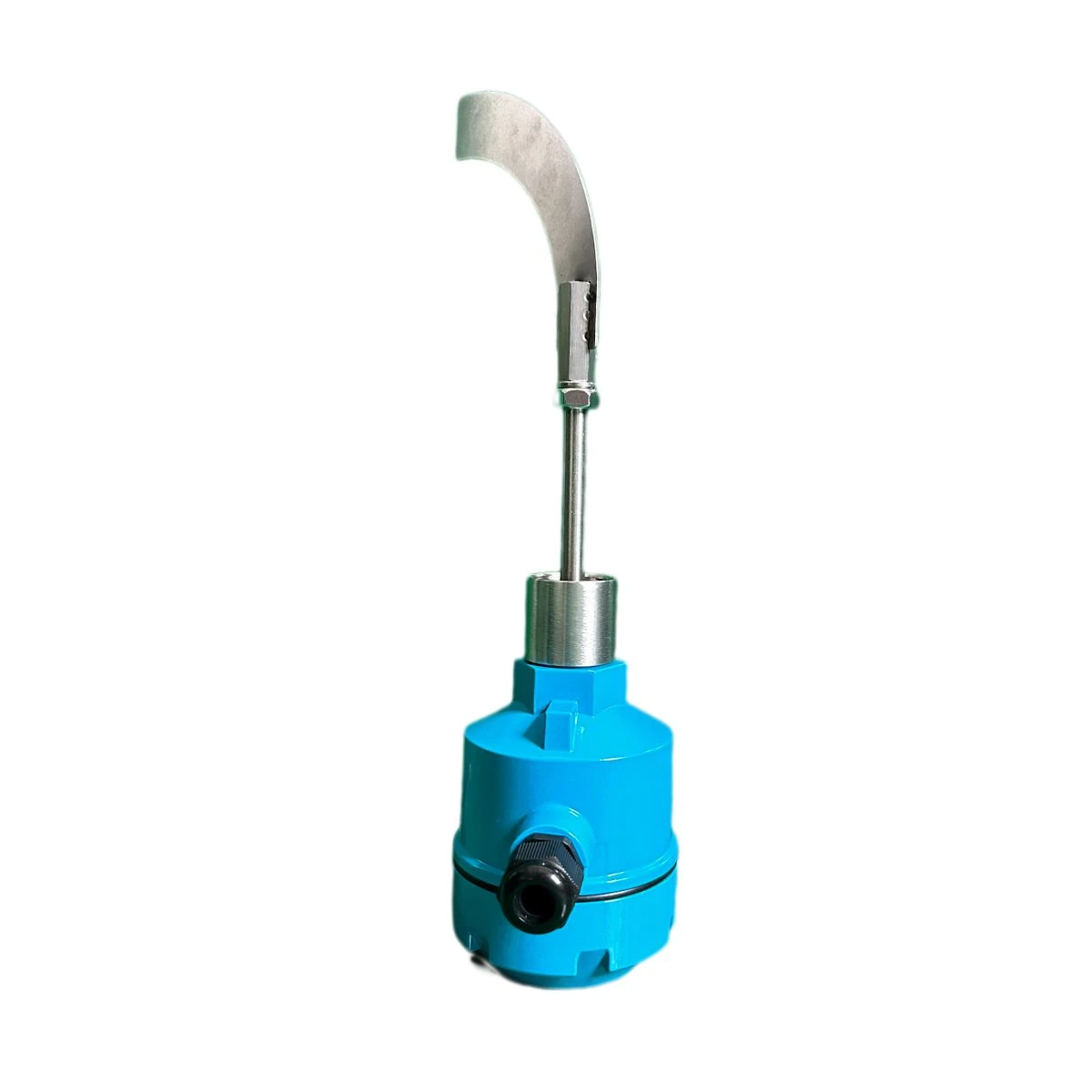

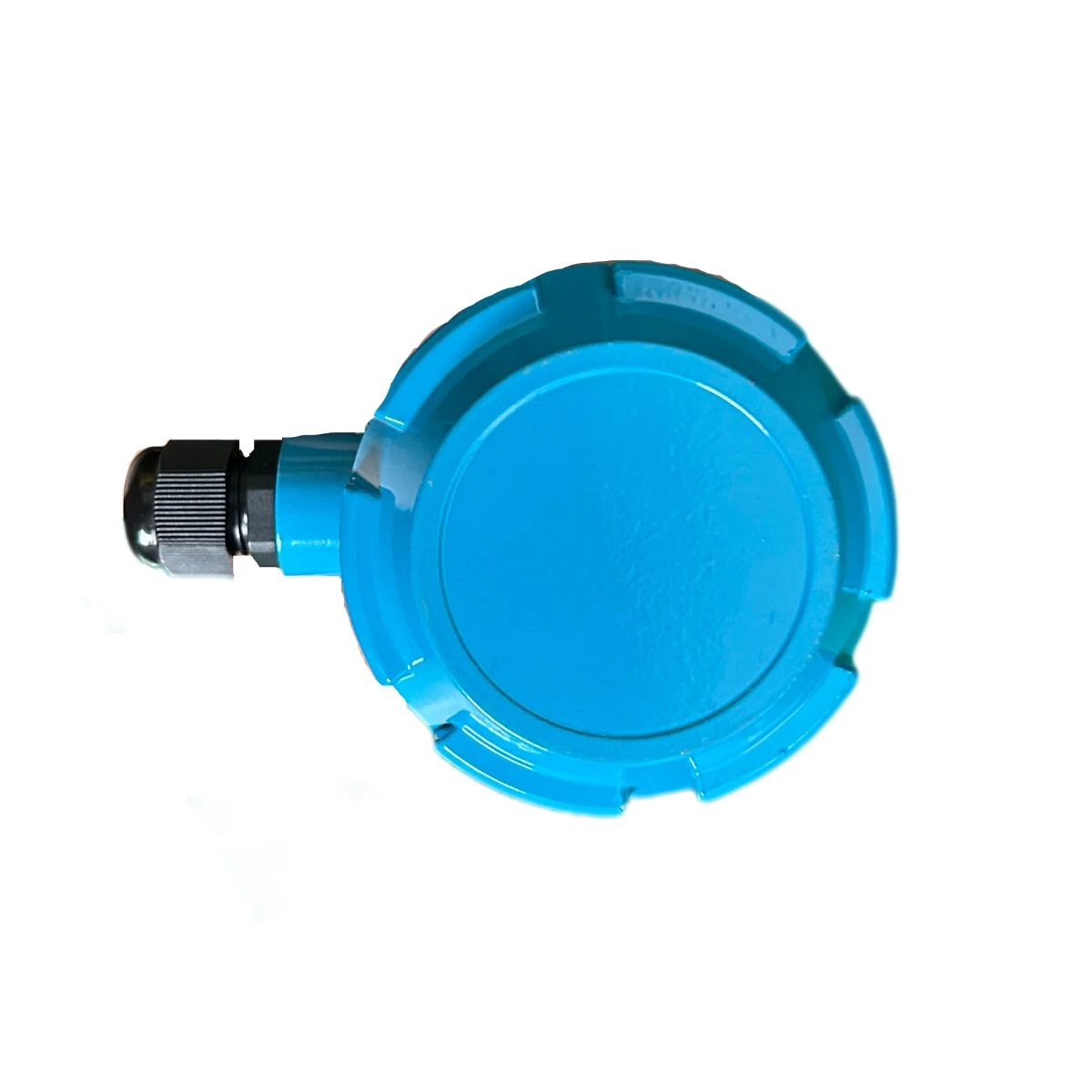

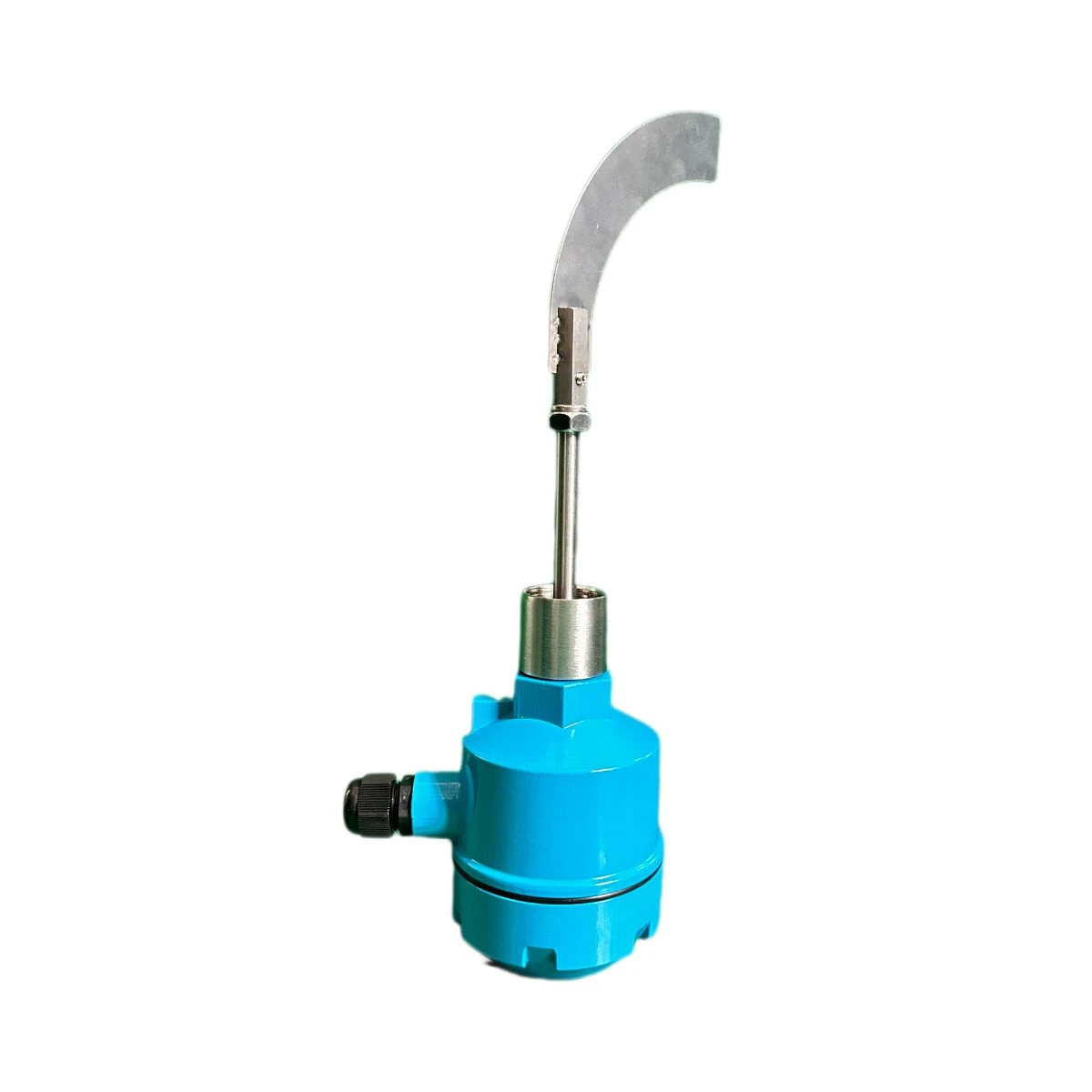

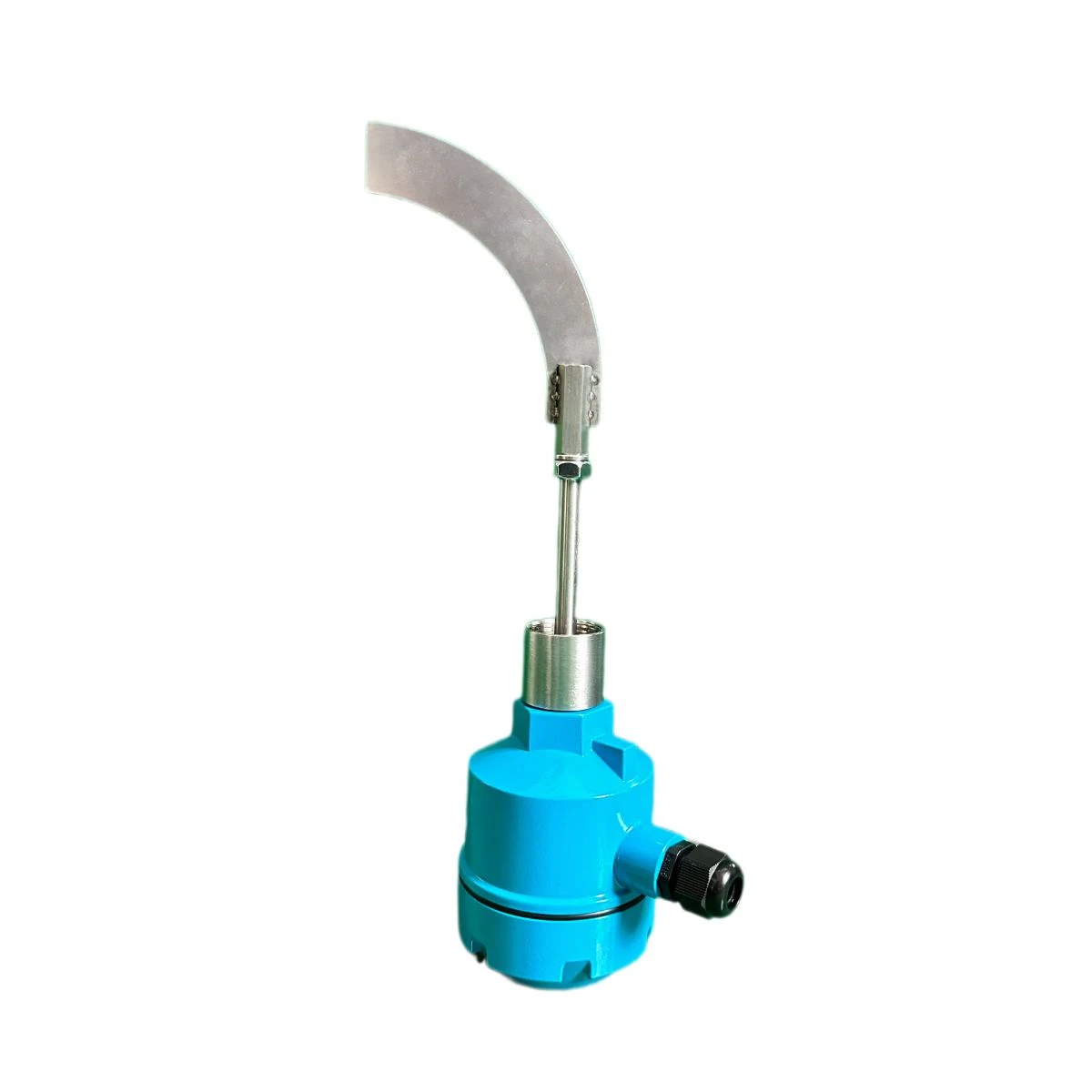

Rotary Paddle Level Switch for Powder & Small Granule Level Control, Widely Used in Various Industries
Empowering Global Industry with Advanced Precision Technology
Simple mechanical structure, stable and reliable operation.
High cost performance and long service life.
Easy installation, commissioning and daily maintenance.
Strong adaptability, suitable for most powder and granular materials.
Low power consumption and wide operating temperature range.
Excellent anti-interference capability, not affected by dust and mild vibration.
Introduction
Technical Parameters
Video
Design features
Product Features and Model Parameters
Adopts mechanical rotary paddle design with stable and reliable performance.
Low power consumption and strong anti-interference ability.
Multiple paddle types optional for different powders and granules.
Wide temperature adaptability, suitable for various industrial environments.
Compact structure, easy installation and simple debugging.
Built-in overload protection to prevent damage from material jamming.
Probe material
304
Probe length
100mm
Process connection
Thread
| Typical application | Powder, small particle level control |
| Product model | NYZX |
| Probe material | 304 |
| Probe length | 100mm |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40～+80℃ |
| Process pressure | Normal pressure |
| Process connection | Thread |
| Electric shock capacity | 250V 5A（SPDT single pole double throw） |
| Medium density | ≥0.4g/cm³ |
| Moment | 10kg·m(1N·m) |
| Insulation resistance | ≥100MΩ（500VDC） |
| Protection grade | IP67 |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Main Functions
Detect high and low material levels in silos, tanks and bins.
Trigger alarm signals to prevent material overflow or empty running.
Realize automatic start-stop and interlock control of conveying equipment.
Cut off power automatically when the paddle is stuck for equipment protection.
Monitor material status continuously for stable production operation.
Application Scenarios
Grain storage and feed processing industry
Cement, building materials and mining industry
Chemical and plastic raw material workshops
Power plant ash and powder material systems
Food, pharmaceutical and light industry production lines
Various silos, hoppers and material bins for bulk solids
Application Scope
The rotary paddle level switch is mainly applied to point level detection and limit control of various powders and granular materials. It is widely used in grain, building materials, mining, chemical, power, food and other industries for material level monitoring of silos, hoppers and storage bins.
Notes
Keep the paddle away from tank walls, pipelines and falling materials to avoid false triggering.
Select suitable paddle type according to the size and density of measured materials.
Do not use beyond the specified temperature range.
Ensure firm installation to reduce the impact of strong vibration.
Check regularly for material accumulation and clean the paddle in time.
Wiring must comply with relevant electrical specifications and keep good insulation.
