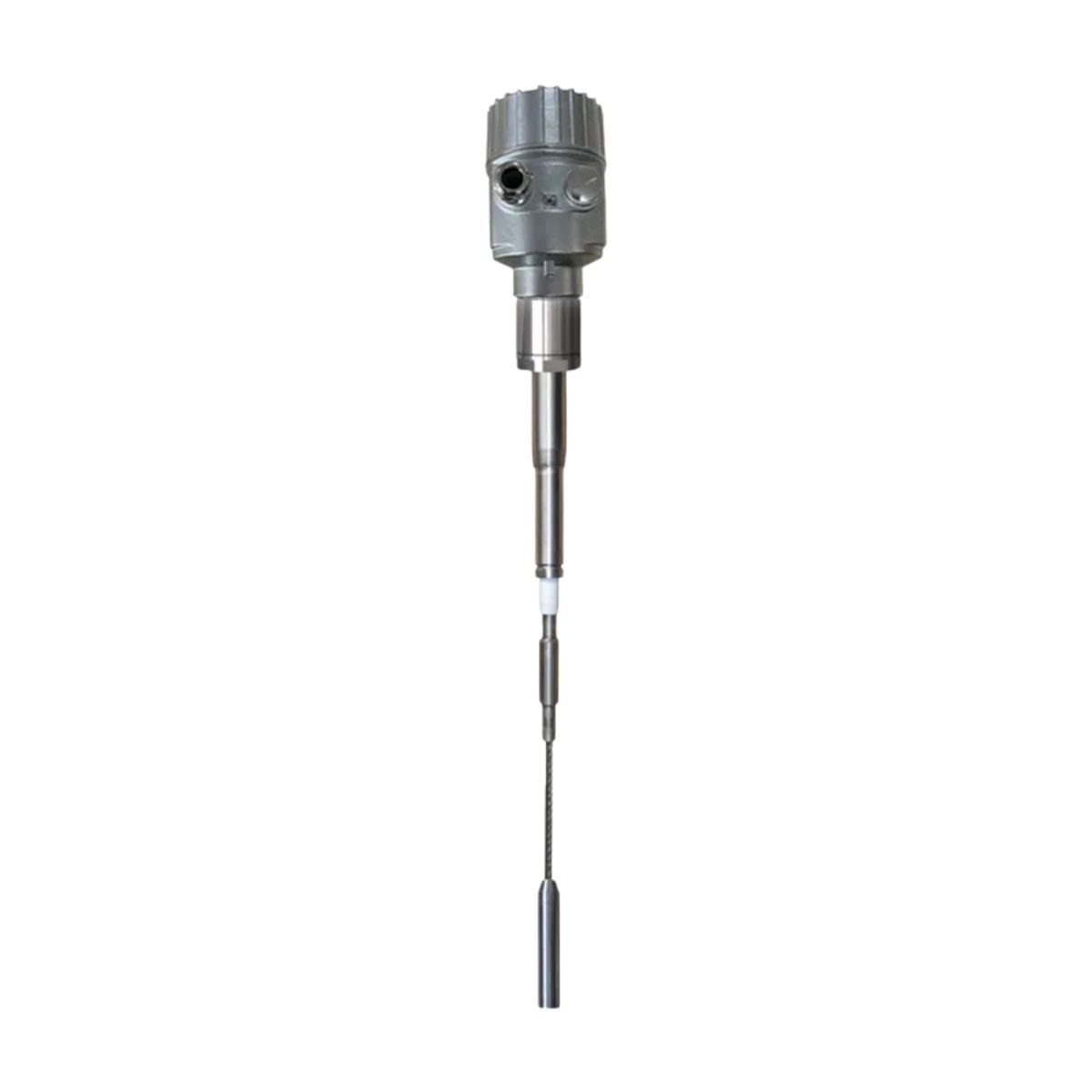

NYSP-M18 4-20mA RF Admittance Level Transmitter for Insulating Solids
Empowering Global Industry with Advanced Precision Technology
Outstanding anti-adhesion performance, effectively avoiding false signals caused by medium buildup.
Superior anti-interference ability, running stably in dusty, steamy and complex environments.
High detection accuracy and fast response, ensuring reliable level monitoring.
Wide temperature and pressure resistance, applicable to various harsh working conditions.
Simple installation and commissioning, nearly maintenance-free for long-term use.
Strong versatility, compatible with liquids, slurries, powders and granular materials.
Introduction
Technical Parameters
Video
Design features
Product Features and Model Parameters
Adopts RF admittance technology, effectively resist medium adhesion and avoid false alarms.
High detection sensitivity with adjustable sensitivity on site.
Strong anti-interference capability, stable operation in dusty and vapor environments.
Excellent temperature and pressure resistance, suitable for harsh working conditions.
Compact structure, easy installation and convenient debugging.
Long service life, wear-resistant and low maintenance.
Probe material
304 316
Probe length
50cm
Process connection
Thread(G1")
| Typical application | High and low level alarms for liquids, dusts, particles, solids and other media |
| Product model | NYSP-UK862 |
| Probe form | rod type |
| Probe material | 304 |
| Probe length | 50cm |
| Power supply | 24VDC, 220VAC |
| Signal output | Double pole double throw relay (DPDT) output |
| Ambient temperature | -40～+80 ℃ |
| Process temperature | -40～+100 ℃ |
| Process pressure | 0～0.3MPa |
| Process connection | Thread(G1") |
| Time delay | 0-30s adjustable |
| Power loss protection | Normally open, normally closed, switchable on site |
| Sensitivity | 0.5pf～750pf |
| Error alarm | Upper or lower limit, adjustable on site |
| Protection grade | IP67 |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Main Functions and Application Scenarios
Realize high and low point level detection and alarm for various materials.
Prevent overflow and material shortage via automatic on-off control.
Output switch signals to support interlock control of industrial equipment.
Effectively suppress false alarms from sticky media.
Support on-site sensitivity adjustment to fit different media.
Built-in protection circuit to guarantee safe and stable operation.
Petrochemical, chemical and oil & gas industries
Power, metallurgy and building materials sectors
Water treatment and environmental protection projects
Food, beverage and pharmaceutical production
Mining, grain storage and bulk material processing
Working conditions with sticky media, dust and steam
RELATED PRODUCTS
The working principle of the radio frequency admittance level switch is based on radio frequency (RF) capacitive technology.
This RF admittance level switch excels at anti-adhesion and anti-interference, providing precise point level detection for liquids, powders and granular materials.
