Product Advantages
● Stable and reliable vibrating fork sensing technology, ensuring accurate liquid level detection.
● Anti-interference performance, not affected by foam, bubbles, viscosity or medium turbulence.
● Wide adaptability for various liquid level monitoring and control applications.
● 24VDC power supply, compatible with most industrial control systems.
● Easy installation, compact structure, low maintenance and long service life.
● Support OEM & customization to meet different project and customer requirements.
● High cost-performance ratio, suitable for long-term industrial use.
Introduction
Technical Parameters
Video
Design features
Product Features and Model Parameters
OEM & Customizable: Support OEM service to meet different customer requirements and brand needs.
Vibrating Fork Type: Adopts stable vibrating fork principle, high reliability for liquid level detection.
Wide Application: Suitable for water and various liquid level monitoring, control and alarm.
Power Supply: 24VDC power supply, compatible with most industrial control systems.
High Accuracy & Stability: Strong anti-interference ability, not affected by liquid foam, bubbles or viscosity.
Easy Installation & Maintenance: Compact structure, convenient wiring, long service life.
Reliable Performance: Suitable for tanks, pipelines and equipment for liquid level control and detection.
Fork Length
100CM 200CM 300CM
Singal Output
Relay Output PNP NPN Normal Clo...lay Output Normal Ope...lay Output
Thread
1/2" 3/4" 1” 1.5”
| Typical application | High and low level alarm of liquid, dust and other media |
| Produet model | NYYCUK-B |
| Shell Material | Aluminium |
| Fork Material | SS316 |
| Fork length | 44mm, 100mm, 200mm, 300mm |
| Power supply | 24VDC |
| Signal output | Relay Output, PNP.NPN, Normal, Close Relay Output, Normal Open Relay Output |
| Process temperature | -20-+80℃ |
| Process pressure | 1.0MPa |
| Process | Thread |
| Protection grade | IP 66 |
| Explosion-proofgrade | Ex ia lc T6 Gb;Ex ib c T8o'e Db |
Main Functions
NYYCUK tuning fork level switch is a general-purpose liquid level limit switch. The tuning fork is excited by the piezoelectrie crystal togenerate vibration. when the tuning fork is immersed in liquid or solid, the vibration fequency changes, and the frequeney change is detected by theeleetronic circuit as a switch. The tuming fork type liquid level limit switch is not afiected by the dieleetrie constant, turbulence, agitation, bubblesvbration and other faictors, and has no moving parts, so no maintenance and adjustment are required. lt is an ideal choice for liquid level swichesunder complex working conditions. The smart chip can be used as an oil-water interface switch
Application Scenarios
Tuning fork level switches are widely used in tap water, mineral water,gasoline, diesel, pulp, glue, waste water, dyes, acid-base solutions, beerbeveraees and other liquid media limit monitoring, but also for solid powder and solid Limit monitoring ofmedium sueh as small particles
RELATED PRODUCTS
Industrial 26G Radar Water Level Gauge with Explosion-Proof Certification
Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
Adopting 80GHz high-frequency radar technology with an ultra-narrow beam angle and strong penetration capability.
This 80G radar water level meter adopts high-frequency radar detection with built-in Bluetooth debugging and low-power design. It delivers stable level reading against steam, foam and temperature variation, featuring easy installation for tanks, pools and rivers, available for OEM customization.
Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
High-Precision 80G Radar Level Transmitter with Flange Connection for Tank Level Measurement System
Introducing the High-Precision 80G Radar Level Transmitter, designed for tank level measurement systems.
This universal flange 80G radar level transmitter achieves high-precision non-contact continuous level measurement of liquids and bulk solids for diverse harsh industrial tanks and silos.
This 80G radar water level meter adopts high-frequency radar detection with built-in Bluetooth debugging and low-power design. It delivers stable level reading against steam, foam and temperature variation, featuring easy installation for tanks, pools and rivers, available for OEM customization.
This 80G radar water level meter adopts high-frequency radar detection with built-in Bluetooth debugging and low-power design. It delivers stable level reading against steam, foam and temperature variation, featuring easy installation for tanks, pools and rivers, available for OEM customization.
Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
80ghz High Frequency dust Radar Level Meter Non Contact High Measuring Range
Adopting 80GHz high-frequency radar technology with an ultra-narrow beam angle and strong penetration capability.
Professional OEM & ODM Manufacturer
Tailored products to meet your complex working conditions.
Successful Project References & Customer Testimonials

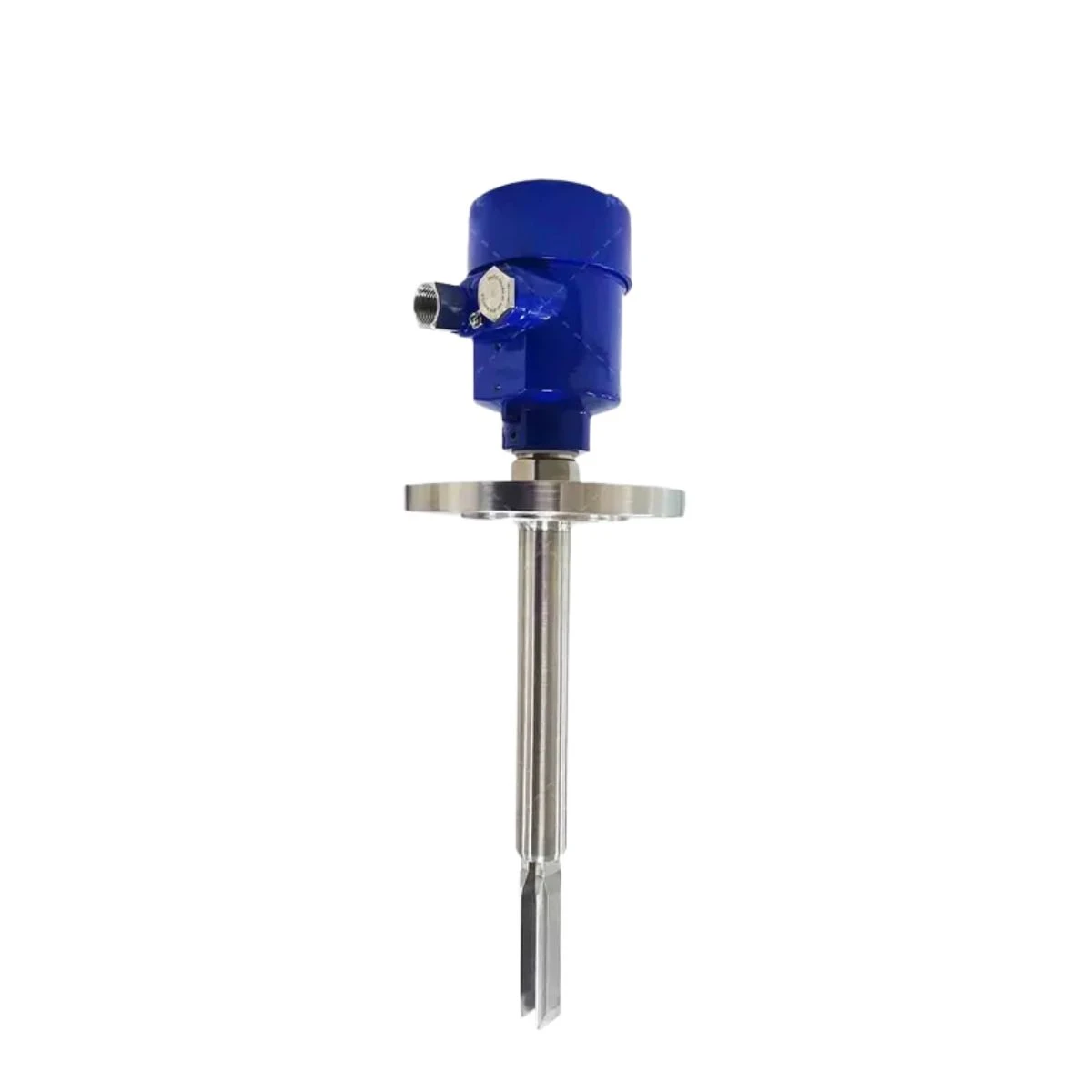

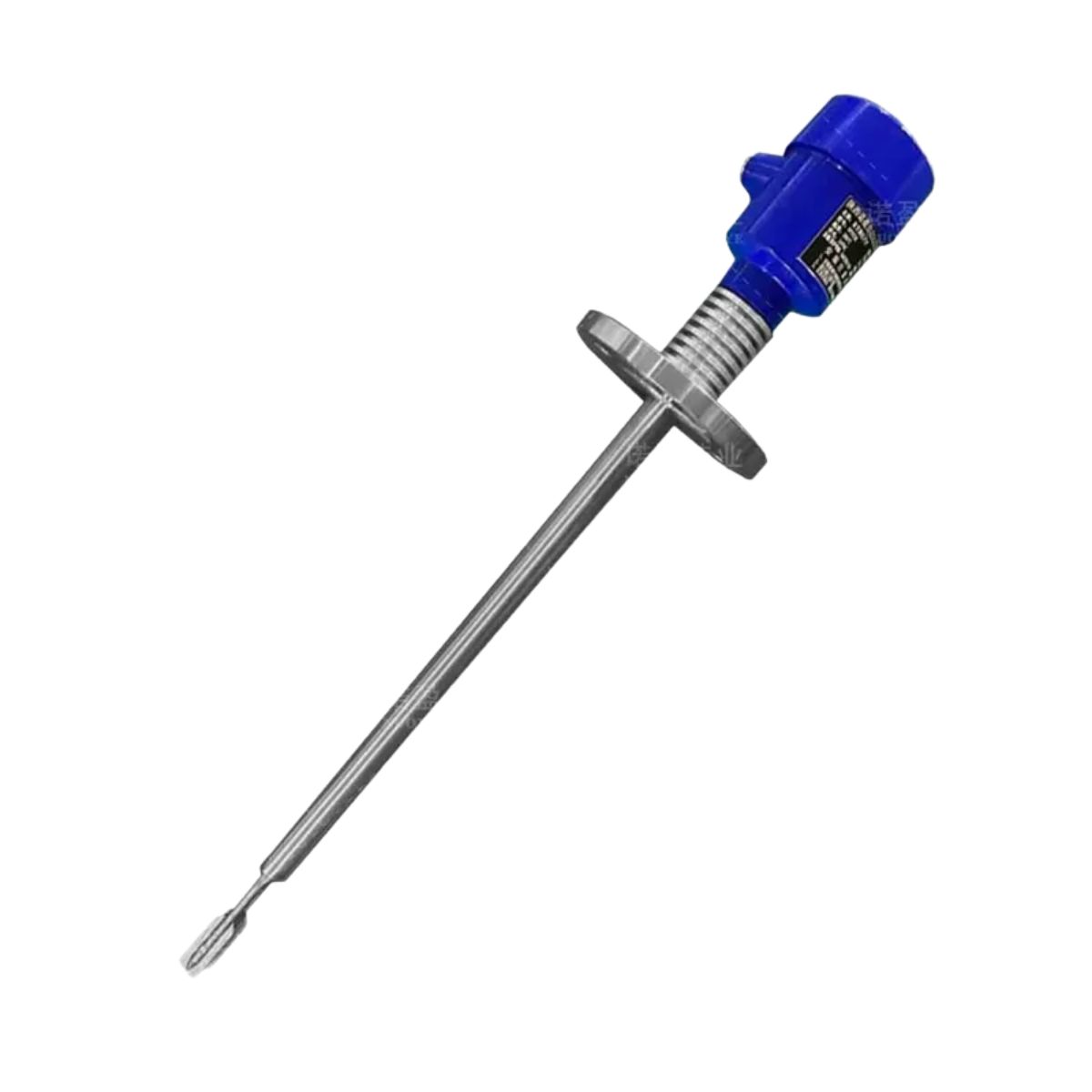

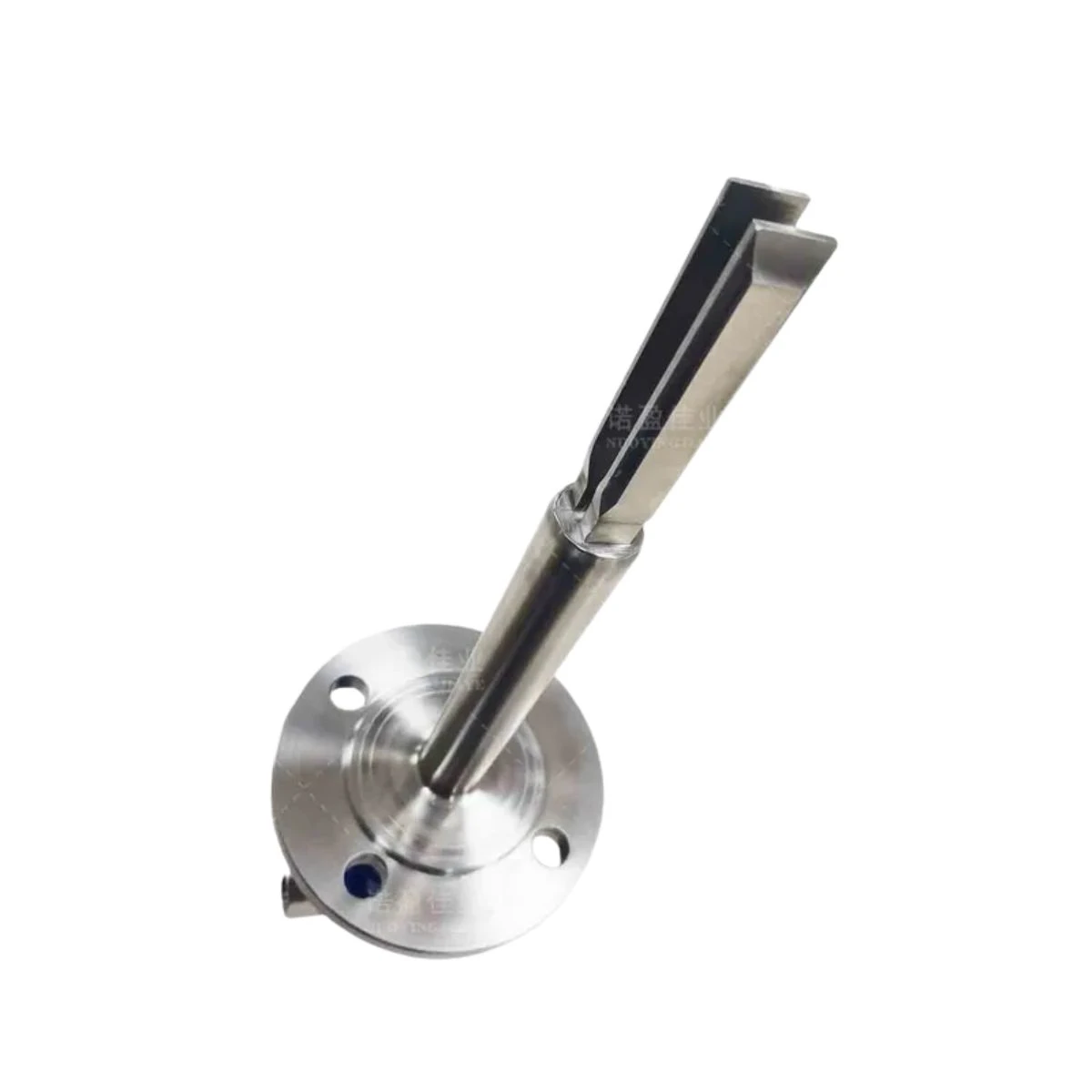

Long Extension Rod Tuning Fork Level Switch | Flange Mount Vibrating Fork Level Sensor for Tank Liquid & Solid
