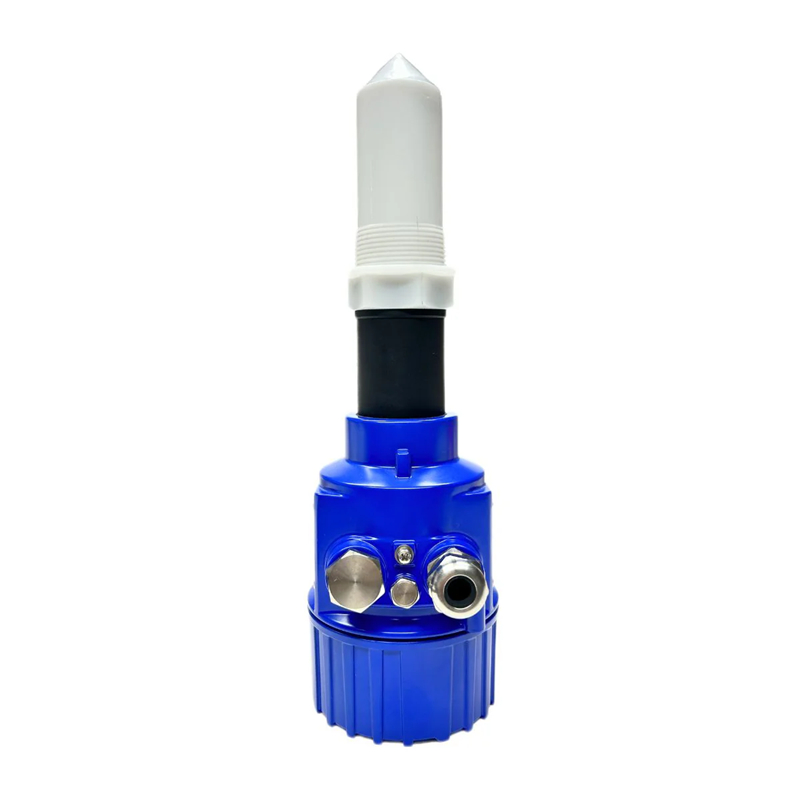

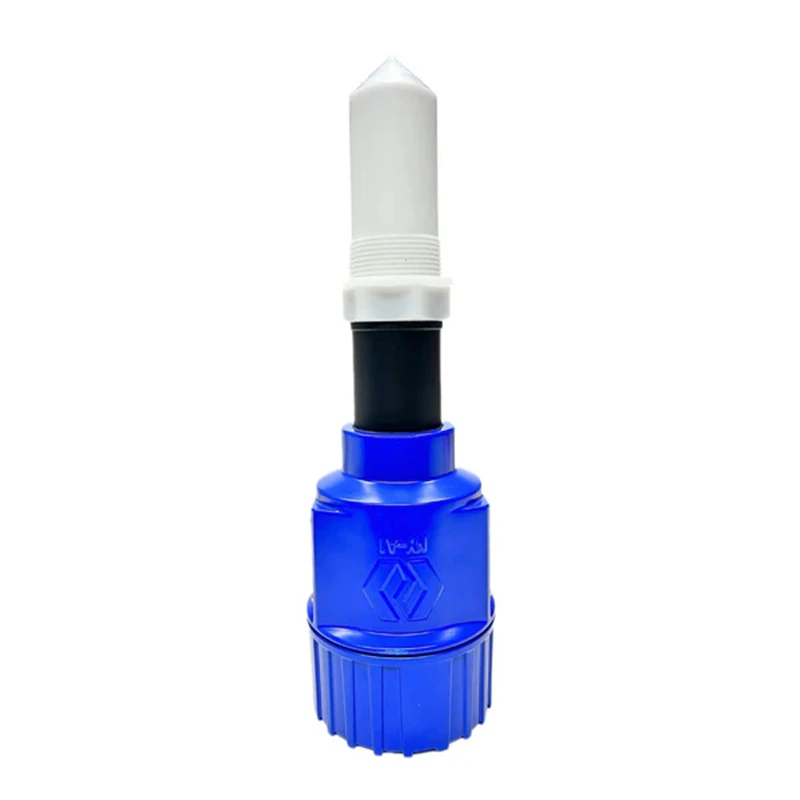

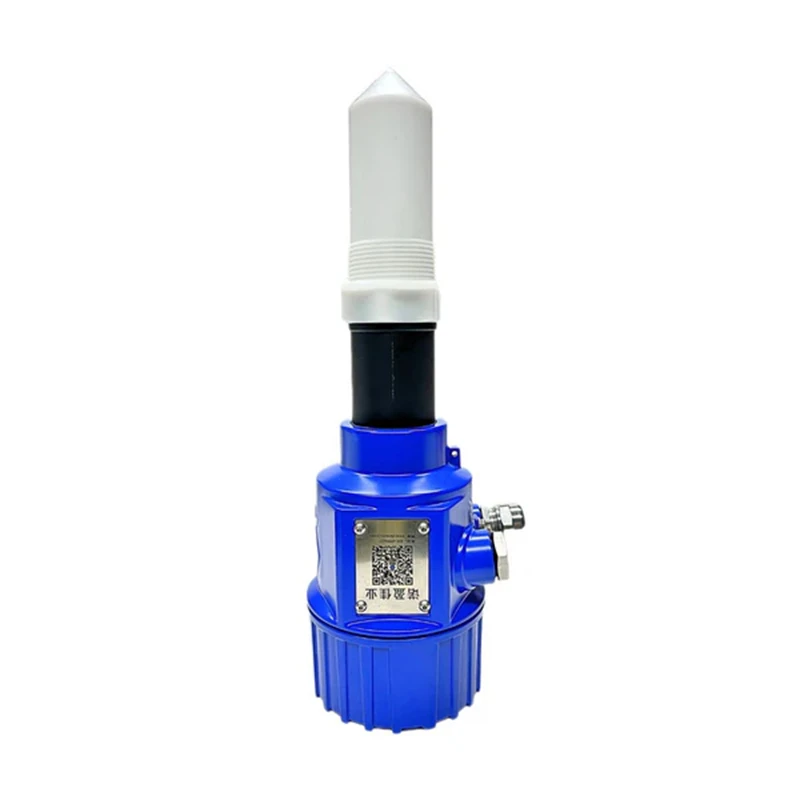

Product Advantages
● Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
● Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
● Serious dust environment has little effect on the work of high frequency level meter.
● Shorter wavelengths, better reflection of sloping solid surfaces.
● Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
● The measurement blind area is smaller, and good results can be achieved for small tank measurement.
● High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
● High frequency, is the best choice for measuring solid and low dielectric constant media.
Introduction
Technical Parameters
Video

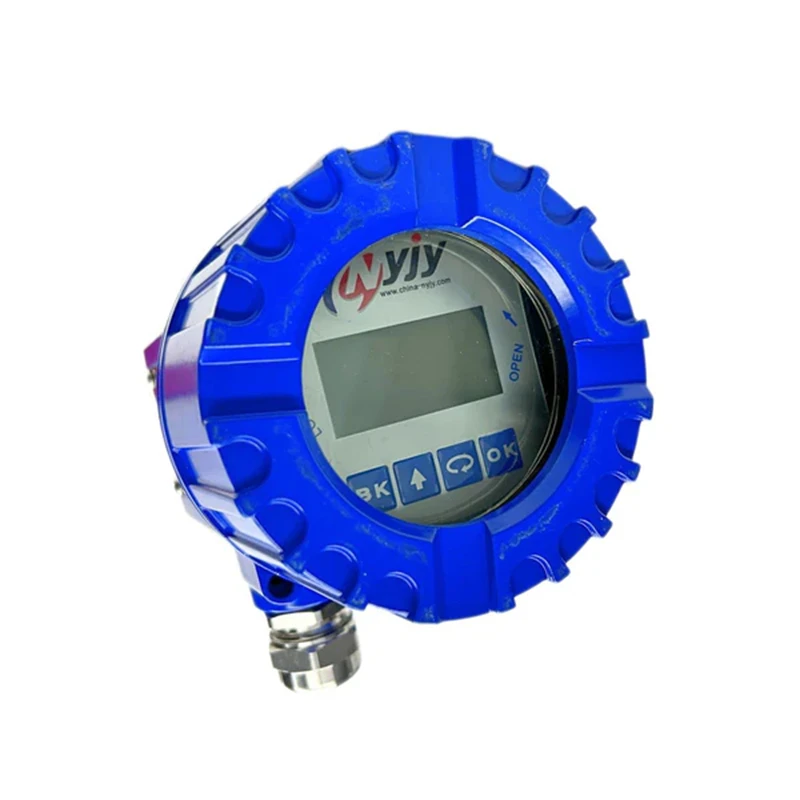

Design Features

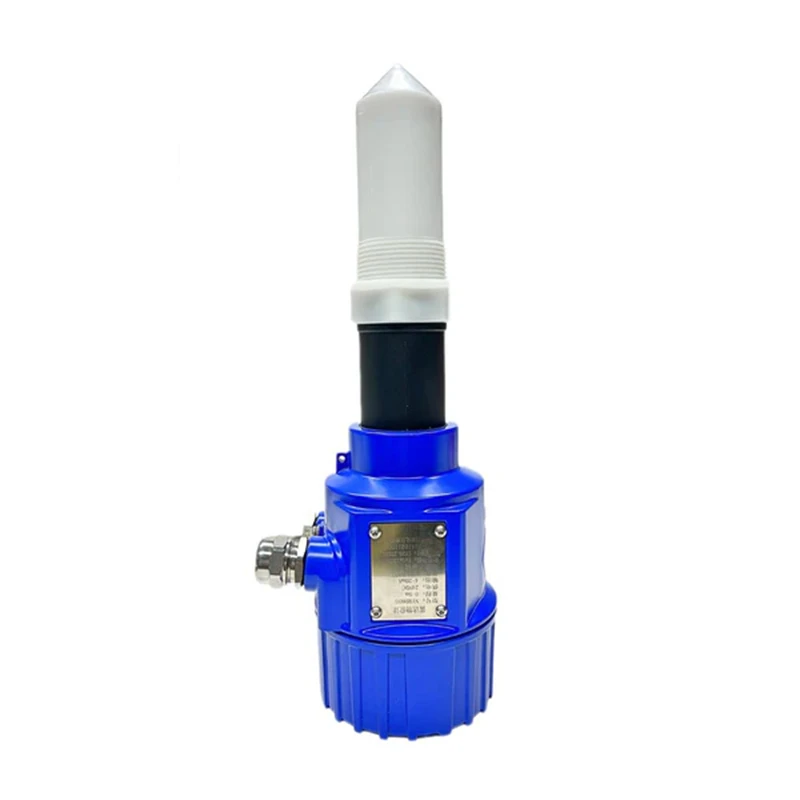

Product Features and Model Parameters
High Precision Measurement: Adopts 26GHz high-frequency radar wave technology, achieving non-contact measurement with high accuracy, stable data and strong anti-interference ability.
Explosion-Proof Design: With authoritative explosion-proof certification, it is safe and reliable to be used in flammable and explosive industrial sites such as petroleum and chemical industry.
Wide Adaptability: Suitable for various liquid media including corrosive, high-temperature, high-viscosity and easy-to-crystallize liquids, meeting the detection needs of multiple industries.
Non-Contact & Maintenance-Free: No contact with measured medium, no wear and long service life; low maintenance cost and convenient daily use.
Strong Anti-Interference: Strong anti-electromagnetic wave interference performance, suitable for complex industrial field environments with stable and reliable operation.
Easy Installation & Debugging: Simple structure, convenient on-site installation and commissioning, saving construction time and cost.
Signal Output
4...20mA+HART RS485
Shell
Aluminum SS304
| Typical application | All kinds of liquid(strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc) |
| All kinds of dust(strong dust, dust, cement powder, lime powder, fly ash, crystallization, etc) |
|
| All kinds of solid(grain, small stones, iron ore, coal.etc.) | |
| Product model | NYRD805 |
| Antenna form | Bar type |
| Antenna material | PTFE |
| Measuring range | 10m, |
| Measurement accuracy | ±5mm |
| blind zone | 40cm |
| Power supply | 24VDC(two wire) |
| Signal output | 4...20mA+HART/RS485 |
| Process temperature | 0～70℃ |
| Process pressure | 0.3MPa |
| Process connection | Thread |
| Electrical interface | M20×1.5, Z"NPT |
| Protection grade | IP65、IP67、IP68(optional) |
| Explosion-proof grade | Exia Il CT6 Ga, Exd II CT6 Gb(see certificate for details) |
Main Functions and Application Scenarios
The radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
Petrochemical industry: crude oil, refined oil, chemical solvent tanks, flammable and explosive liquid monitoring
Oil and gas industry: tank farms, drilling platforms, oil and gas separation equipment
Water conservancy & municipal: reservoirs, rivers, wells, urban water supply & sewage treatment
Electric power industry: power plant water tanks, boiler water, circulating water, ash water systems
Metallurgy & mining: mine sumps, slurry tanks, industrial circulating water
Food & pharmaceutical: edible oil, syrup, purified water, hygienic tanks
Ship & marine engineering: ship ballast tanks, fuel tanks, fresh water tanks
Environmental protection & water treatment: wastewater tanks, sewage tanks, waste liquid collection systems

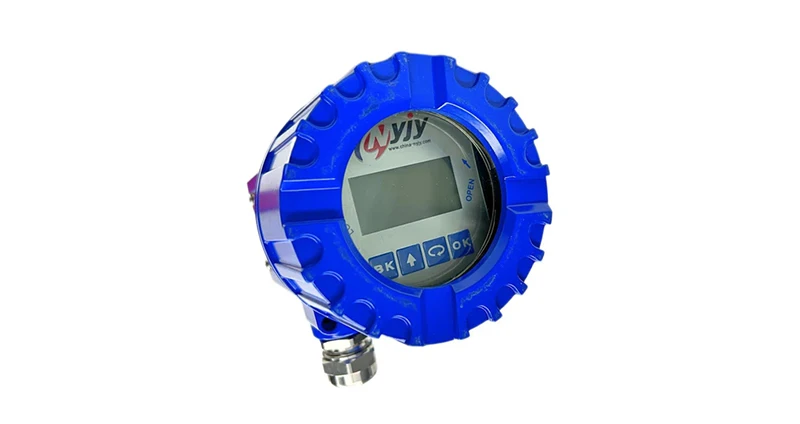

Application Scope
Liquid level measurement and monitoring for various liquid storage tanks
Suitable for explosion-proof occasions in petroleum, chemical, oil and gas industries
Used in water conservancy, municipal water supply and drainage, sewage treatment
Applied in power plants, metallurgy, mining, food, pharmacy and other industrial fields
Non-contact measurement for corrosive, high-temperature, viscous liquid media

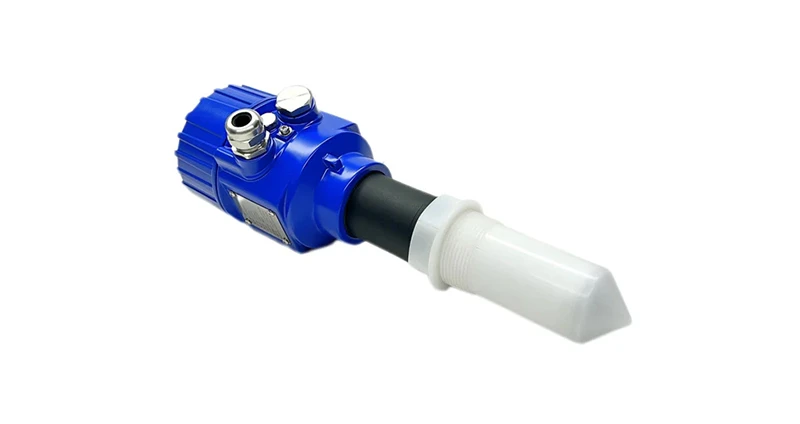

Notes
Ensure the installation environment meets the explosion-proof rating requirements.
Avoid installation in strong vibration or strong impact position.
Keep the radar antenna clean and free from obstruction.
Do not disassemble the instrument in flammable and explosive places.
Wiring and commissioning must be operated by professional personnel.
Regular inspection and maintenance to ensure stable operation.
