Product Advantages
High Precision 80G Radar Narrow beam, tiny blind zone, mm-level accuracy, good for low dielectric liquid & dusty solid.
Flange Mount & Anti-adhesion Antenna Standard stainless steel flange, PTFE lens avoids material sticking, easy installation.
Wide Working Condition Adaptation Non-contact measure, unaffected by steam, foam, temp & pressure change.
Multiple Output & Easy Setup 4-20mA/HART/Modbus available, LCD display, simple on-site commissioning.
Low Maintenance & Explosion-proof Optional Maintenance-free, optional Ex & SIL2 for petrochemical hazardous area.
Introduction
Technical Parameters
Video
Design Features

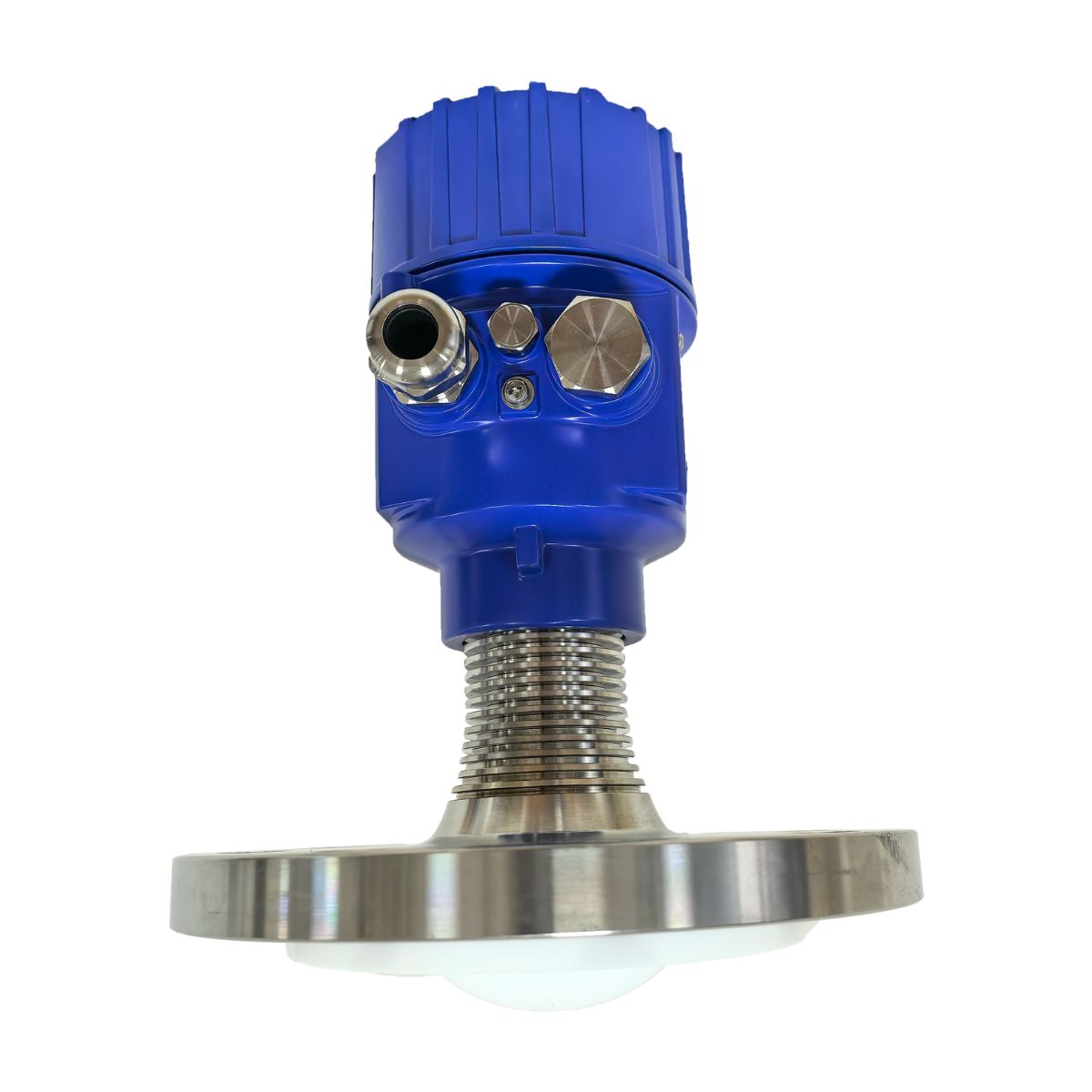

It is a flange-mounted 80G FMCW radar level meter for continuous non-contact level detection of liquids and bulk solids.
Built with standard flange and PTFE lens antenna for fast installation on various storage tanks and silos.
Narrow beam, short blind zone and high measuring precision adapt to dusty, foamy and steaming harsh tank environments.
Supports 4–20mA, HART, Modbus signal output to connect with DCS/PLC control systems.
Widely applied in petrochemical, cement, grain, chemical and water treatment industries.
Universal Flange Size PN16
DN50 DN80 DN100 DN150 DN200
Universal Flange Material
SS304 SS316
Process Temperature
0-120℃ 120-200℃
|
Typical application |
– Electromagnetic wave emission angle less than 3°, suitable for narrow space or waveguide tube measurement |
|
|
– Suitable for large tanks (150m) and small tanks (small blind area) |
|
|
– High precision, high hygiene level and other occasions |
|
|
– Complex process conditions (stirring, heating rod, ladder, floating roof, strong dust, strong steam, etc.) occasions |
|
Product model |
NYRD900-Flange |
|
Transmit frequency |
80GHz, FM sweep frequency width 5GHz |
|
Antenna form |
Lens antenna |
|
Antenna material |
PTFE |
|
Measuring range |
0-35m |
|
Measurement accuracy |
2mm |
|
Power supply |
24VDC |
|
Signal output |
4...20mA＋HART |
|
Process temperature |
0-120℃/ 120-200℃（≥200℃ can be customized） |
|
Process pressure |
0.3MPa |
|
Process connection |
Flange |
|
Protection class |
IP65 |
|
Explosion-proof grade |
Exia II CT6Ga, Exd II CT6Gb |
|
※Note: |
The product can be customized according to the specific requirements of users. |
Main Functions and Application Scenarios
