Product Advantages
● Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
● Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
● Serious dust environment has little effect on the work of high frequency level meter.
● Shorter wavelengths, better reflection of sloping solid surfaces.
● Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
● The measurement blind area is smaller, and good results can be achieved for small tank measurement.
● High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
● High frequency, is the best choice for measuring solid and low dielectric constant media.
Introduction
Technical Parameters
Video
Design features
Product Features and Model Parameters
High Precision Measurement: Adopts 26GHz high-frequency radar wave technology, achieving non-contact measurement with high accuracy, stable data and strong anti-interference ability.
Explosion-Proof Design: With authoritative explosion-proof certification, it is safe and reliable to be used in flammable and explosive industrial sites such as petroleum and chemical industry.
Wide Adaptability: Suitable for various liquid media including corrosive, high-temperature, high-viscosity and easy-to-crystallize liquids, meeting the detection needs of multiple industries.
Non-Contact & Maintenance-Free: No contact with measured medium, no wear and long service life; low maintenance cost and convenient daily use.
Strong Anti-Interference: Strong anti-electromagnetic wave interference performance, suitable for complex industrial field environments with stable and reliable operation.
Easy Installation & Debugging: Simple structure, convenient on-site installation and commissioning, saving construction time and cost.
Universal Flange Size PN16
DN80 DN100 DN125 DN150 DN200
Universal Flange Material
SS304 SS316
Shell
Aluminum SS304
| Typical application | All kinds of liquid(strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc) |
| All kinds of dust(strong dust, dust, cement powder, lime powder, fly ash, crystallization, etc) |
|
| All kinds of solid(grain, small stones, iron ore, coal.etc.) | |

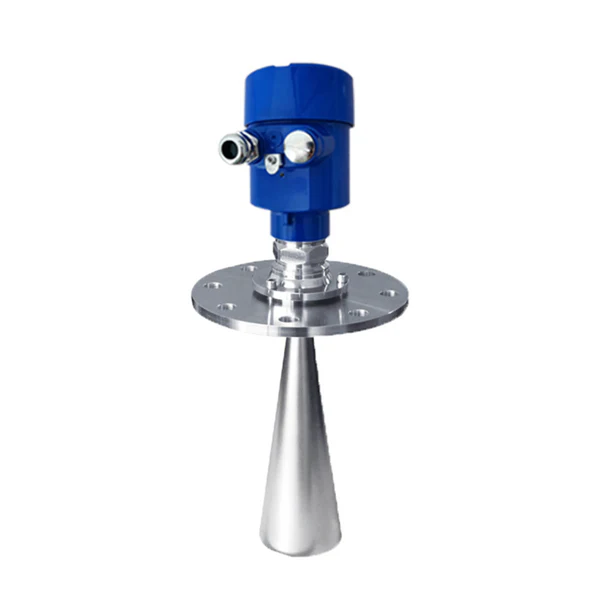

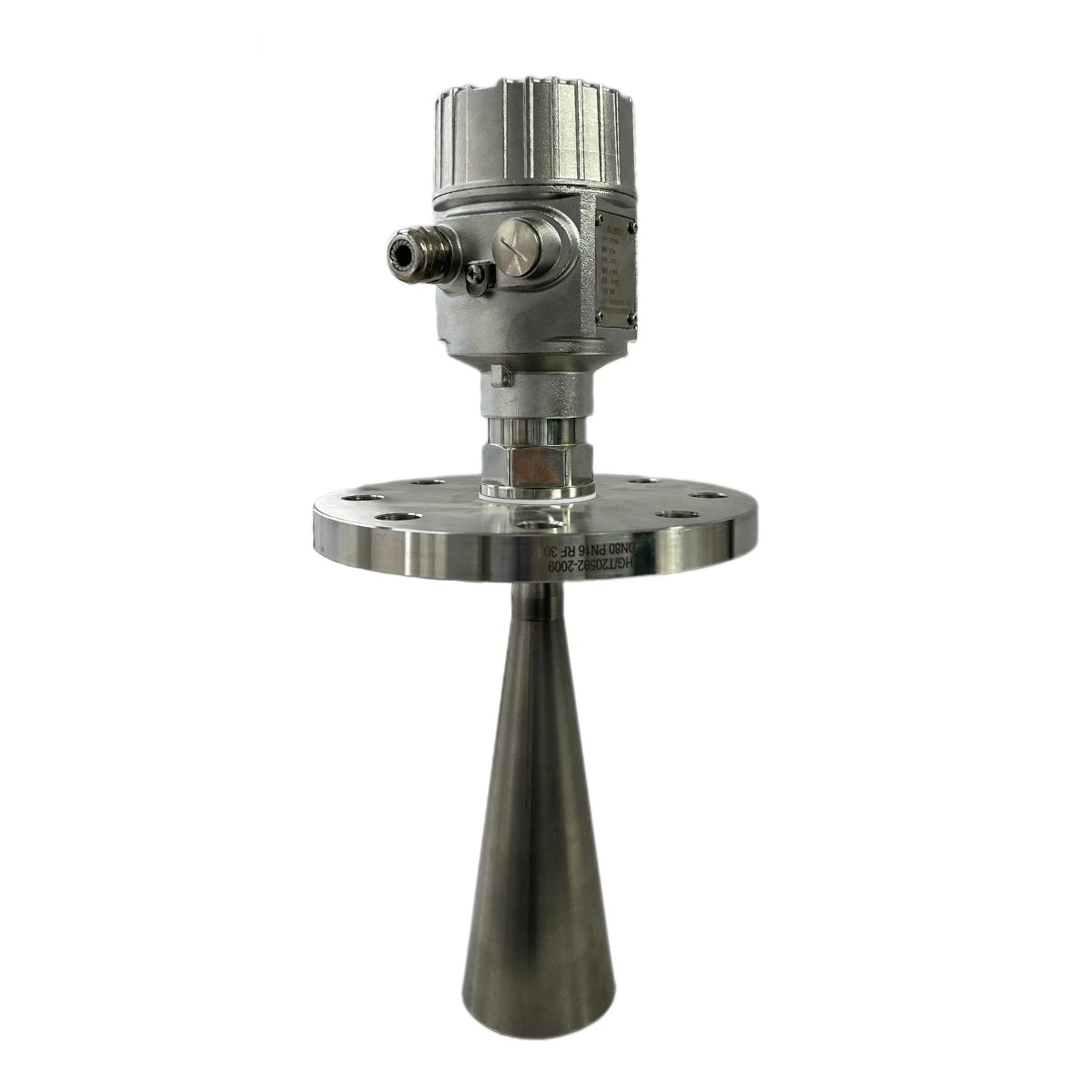

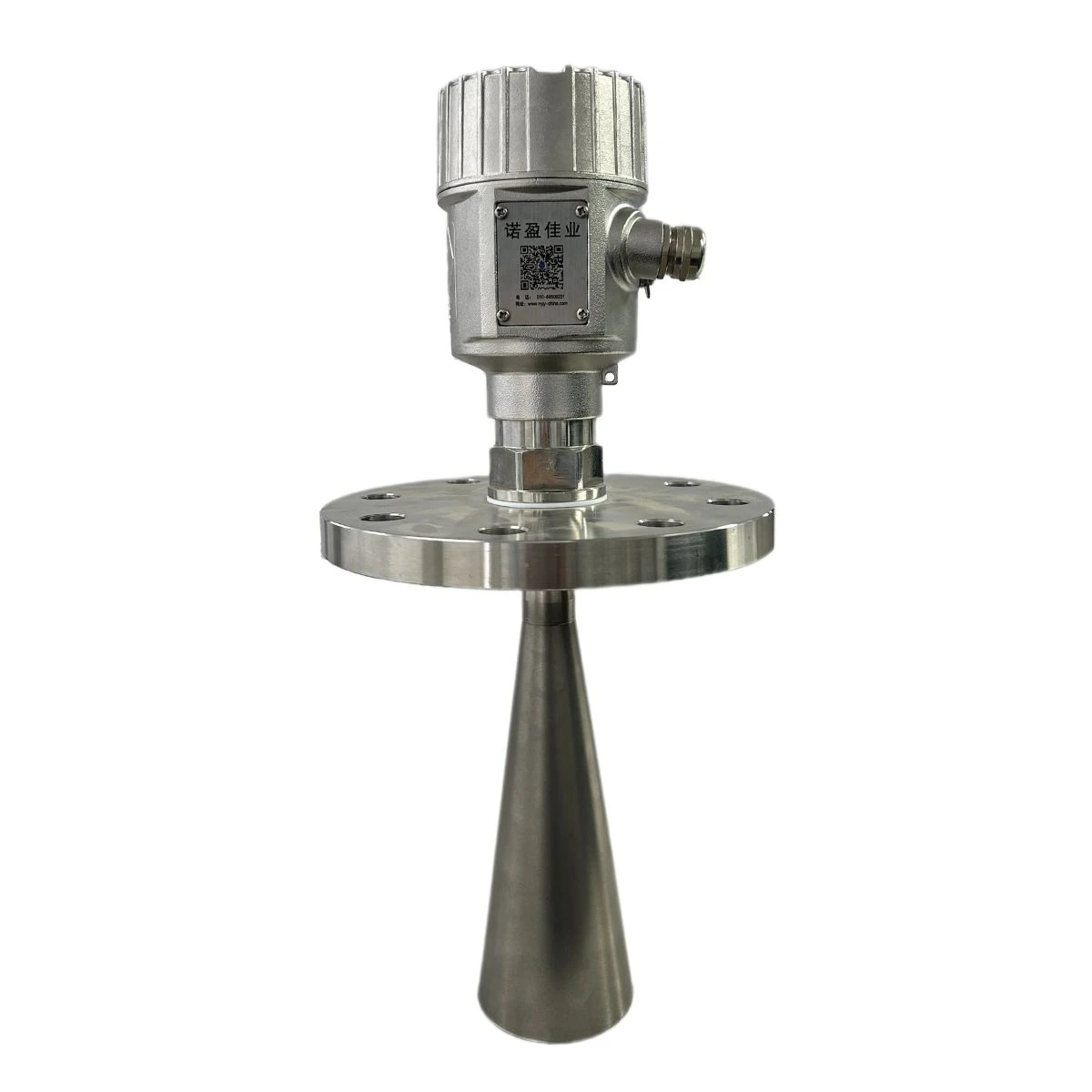

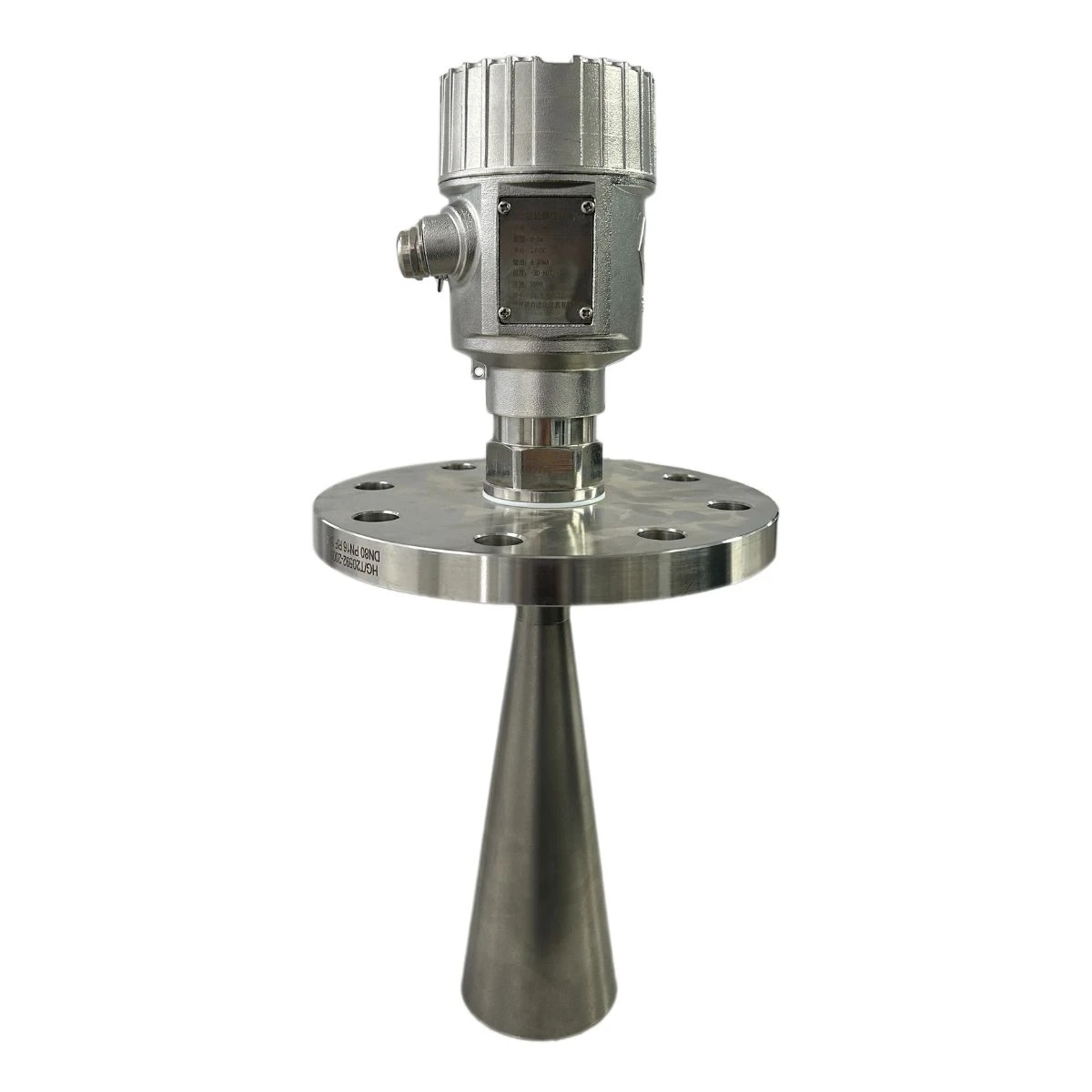

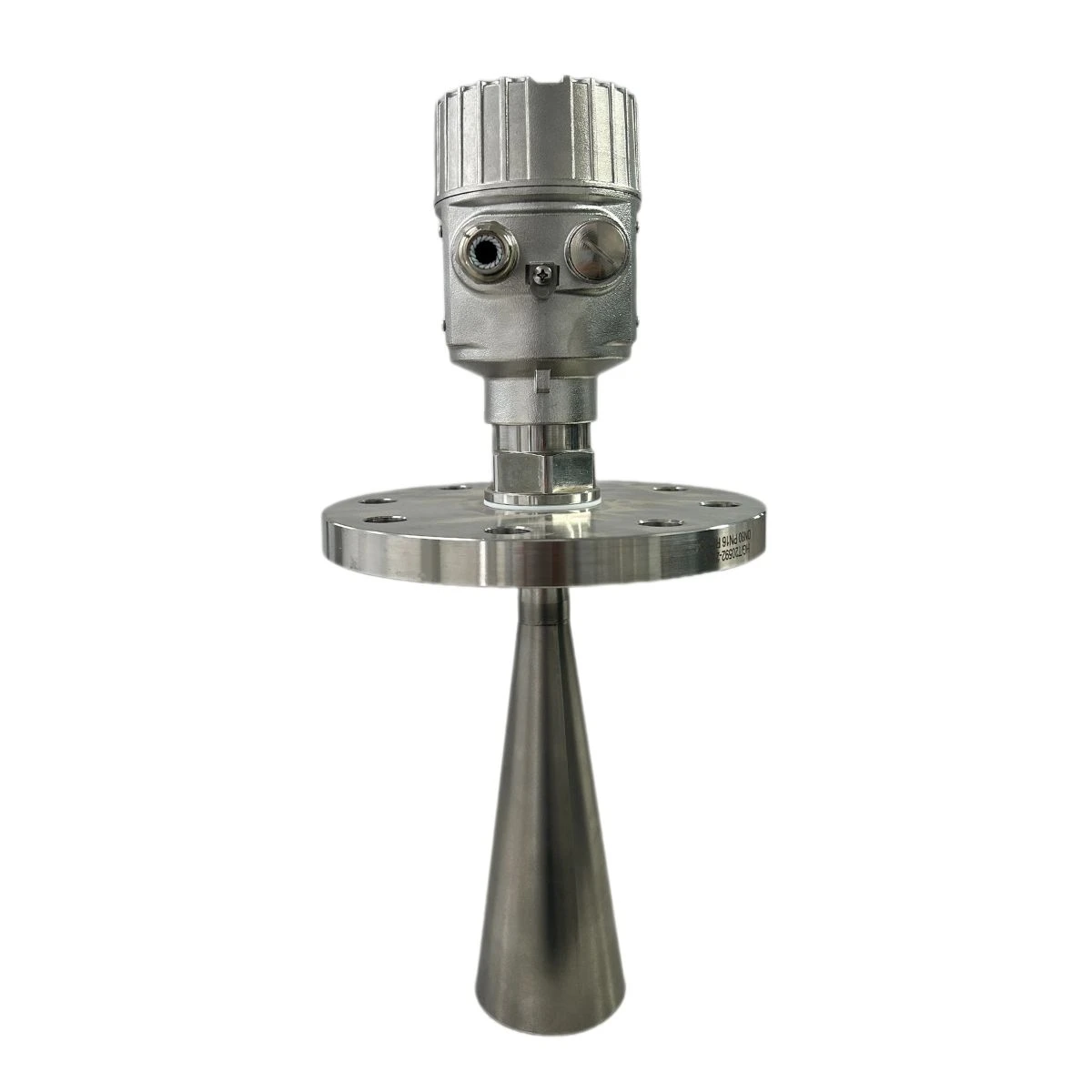

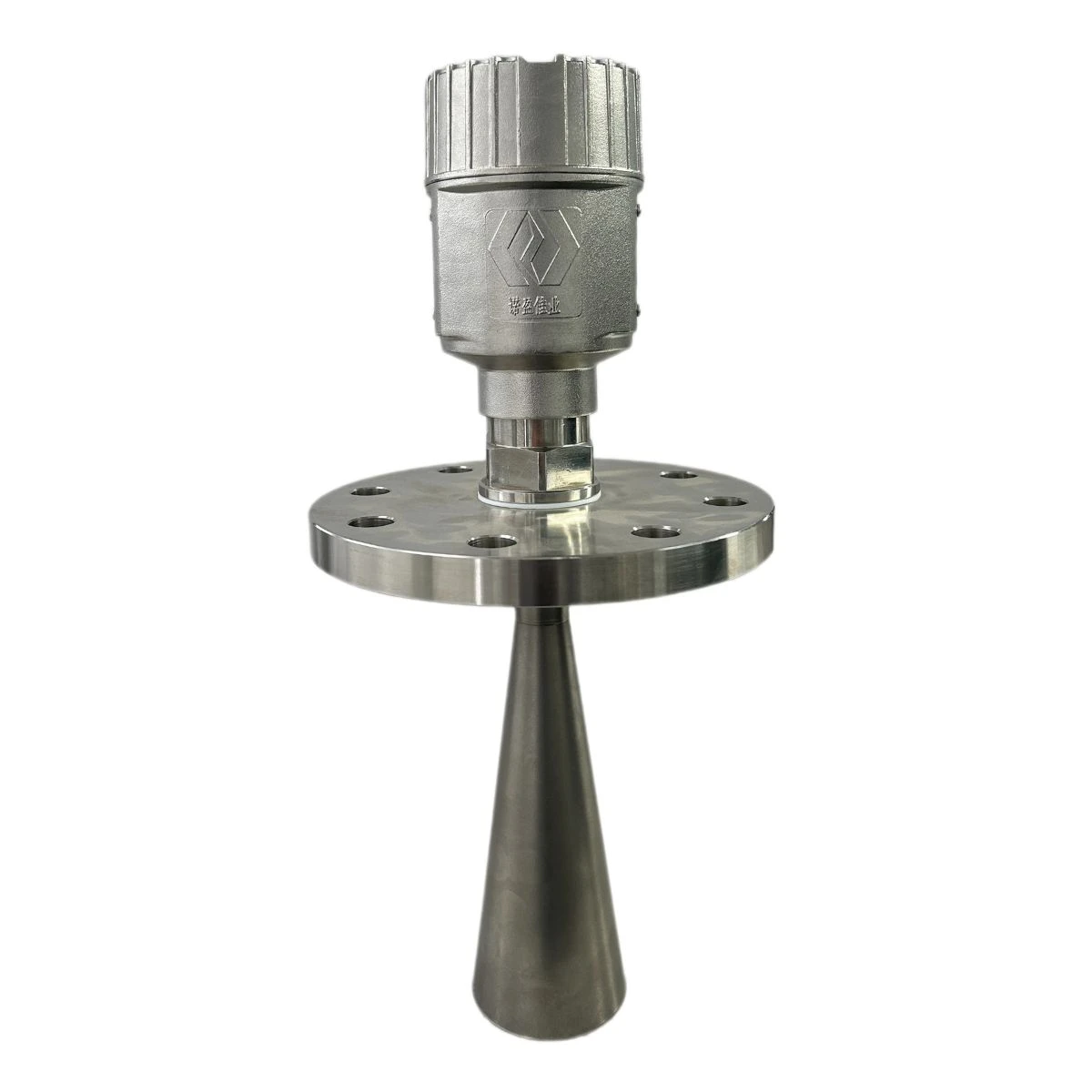

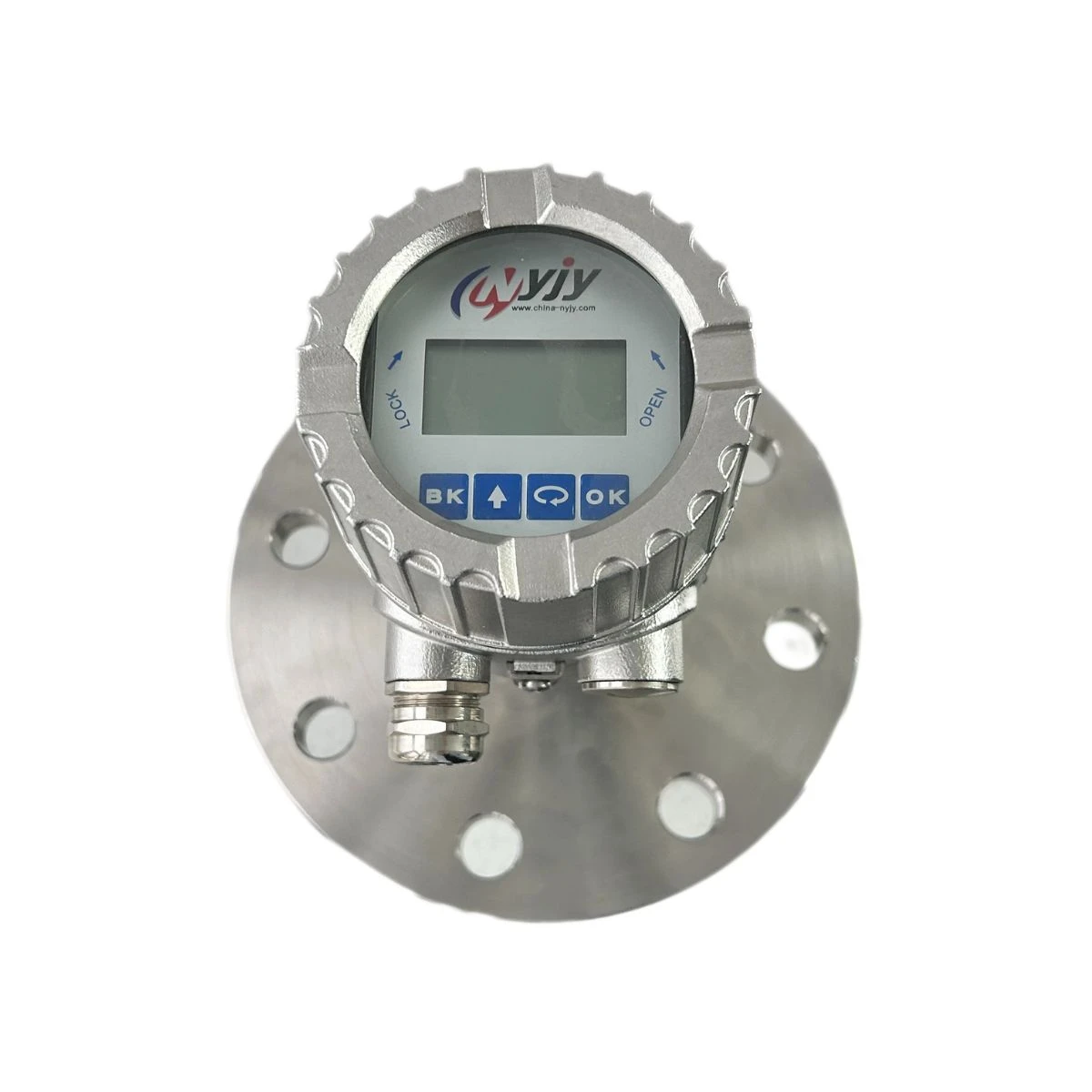

| Product model | NYRD809 |
| Antenna form | Horn type |
| Antenna material | 304，316 |
| Measuring range | 0-40m, |
| Measurement accuracy | ±5mm |
| blind zone | 40cm |
| Power supply | 24VDC(two wire) |
| Signal output | 4...20mA+HART/RS485 |
| Process temperature | 0～120℃ |
| Process pressure | 0.3MPa |
| Process connection | Universal Flange |
| Electrical interface | M20×1.5, Z"NPT |
| Protection grade | IP65 |
| Explosion-proof grade | Exia Il CT6 Ga, Exd II CT6 Gb |
Main Functions
This Horn-type 26G Radar Level Gauge adopts high-frequency radar wave to realize continuous and non-contact real-time measurement of liquid level and solid material level in various industrial containers. It stably captures level data regardless of steam, foam, dust and temperature fluctuations, transmits accurate measurement signals to the DCS and PLC system through standard 4-20mA and Modbus-HART output, supports remote data monitoring and on-site parameter configuration, and is equipped with high and low level alarm functions to effectively prevent overflow and empty tank accidents, ensuring safe and stable industrial production operation.
Application Scope
This Horn-type 26G Radar Level Gauge is widely applied in petroleum, petrochemical, coal chemical, power, metallurgy, building materials, environmental protection and food processing industries. It is suitable for non-contact continuous level measurement of various liquids, particles and powders, and adapts to complex working conditions with high temperature, high pressure, steam, foam, dust and strong volatile media, meeting the precise monitoring demands of various storage tanks, reaction kettles and industrial silos in ordinary and explosive hazardous environments.
Notes
During the installation and operation of the Horn-type 26G Radar Level Gauge, avoid mounting the probe facing tank inlets, outlets and strong turbulent areas to prevent unstable measurement data. Keep the measuring area away from obstacles, welding seams and internal equipment to ensure smooth radar signal transmission. Professional installation and regular inspection are required for explosion-proof models used in hazardous areas. Please strictly follow the operating temperature and pressure range, avoid long-term over-limit working conditions. Regularly clean the antenna surface of dust, condensate and adhesion to guarantee long-term stable and accurate measurement performance.
