Universal Flange Design: Standard versatile flange fits most tank openings for quick installation and replacement.
High Precision 80G Technology: Narrow beam angle, minimal blind zone, stable measurement for low-dielectric liquid and dusty solid.
Harsh Condition Resistance: Non-contact measurement unaffected by foam, steam, dust, temperature and pressure changes.
Diversified Signal Output: Supports 4-20mA/HART/Modbus to connect with mainstream PLC and DCS systems.
Low Maintenance: PTFE anti-sticking lens antenna, long service life with maintenance-free operation.
Introduction
Technical Parameters
Video
Design features

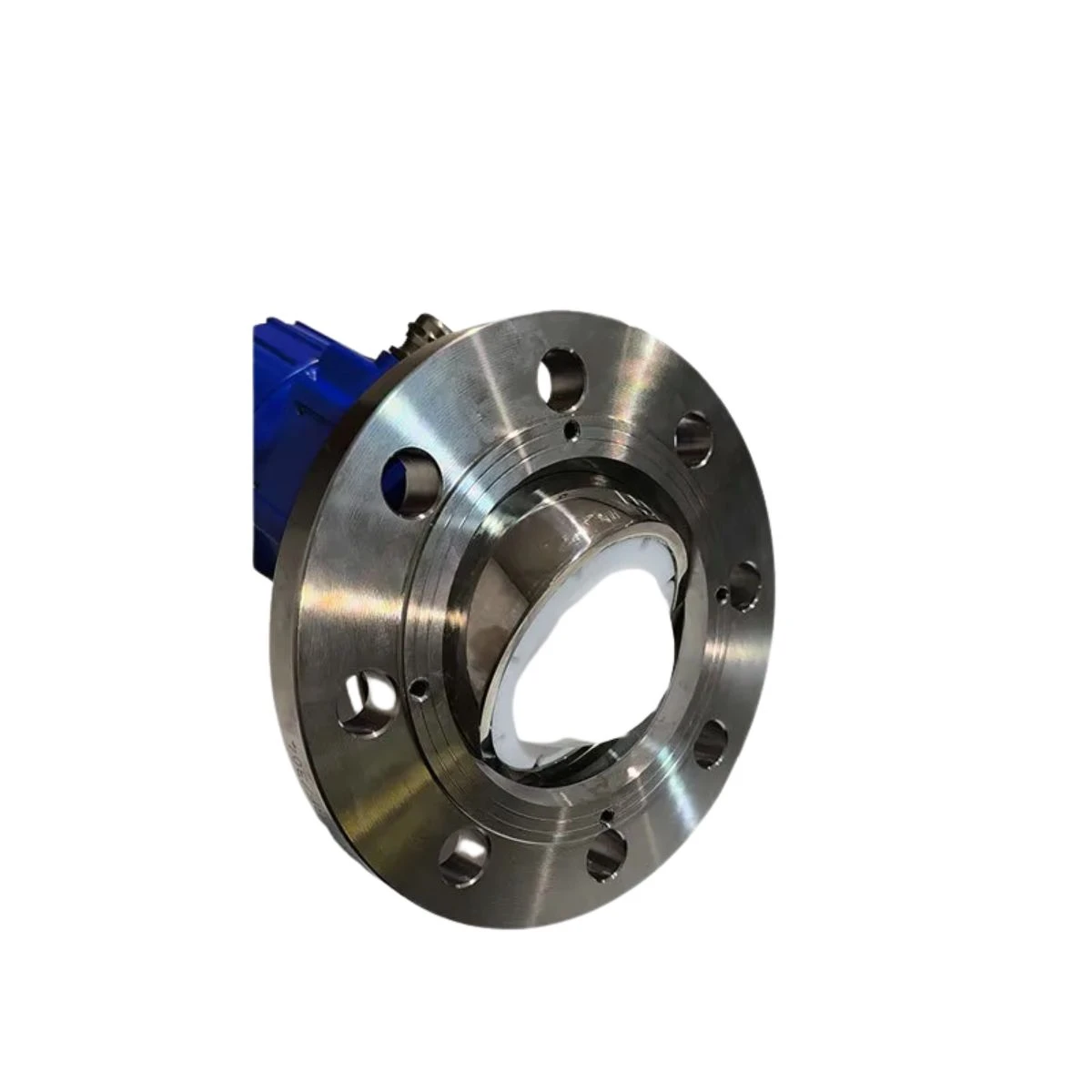

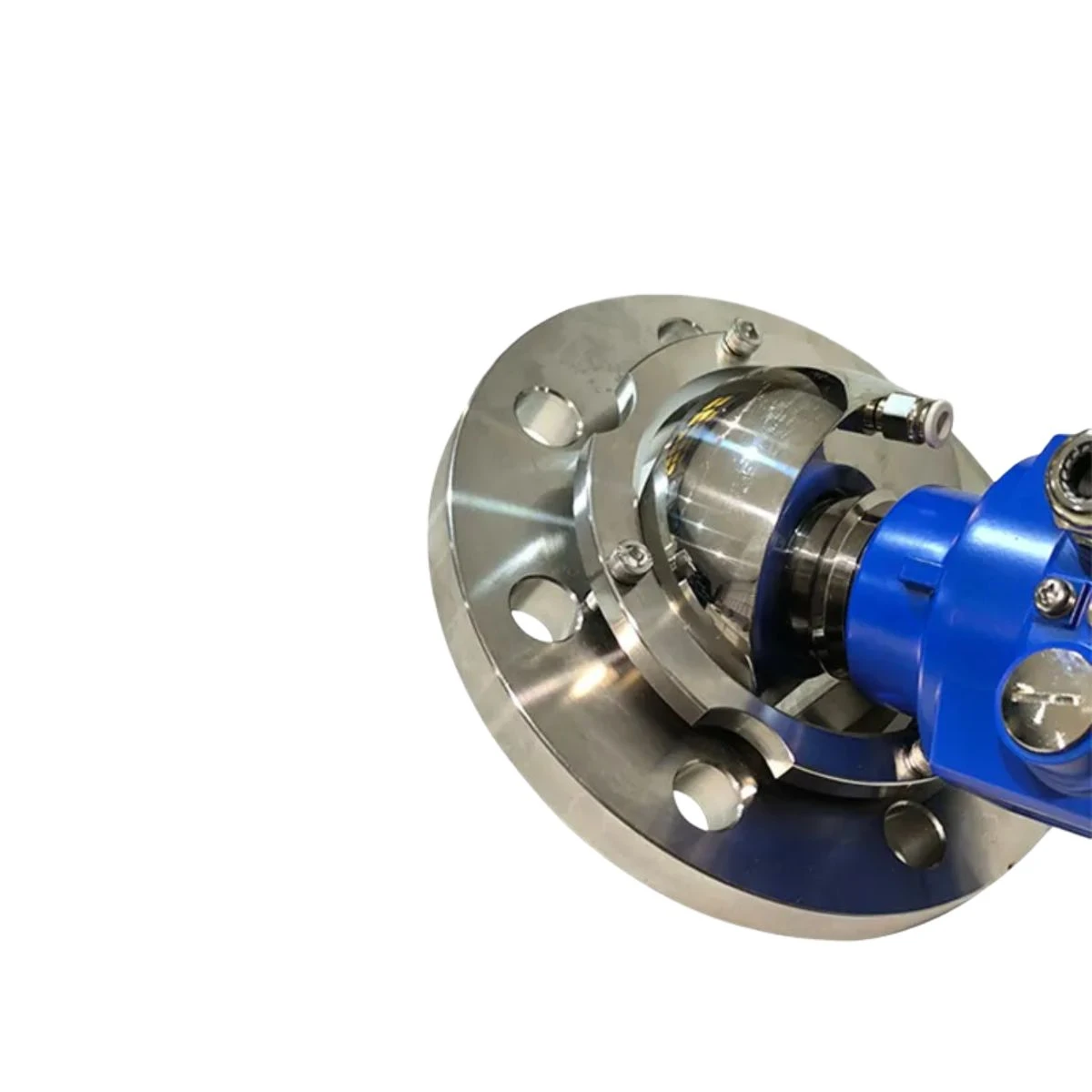

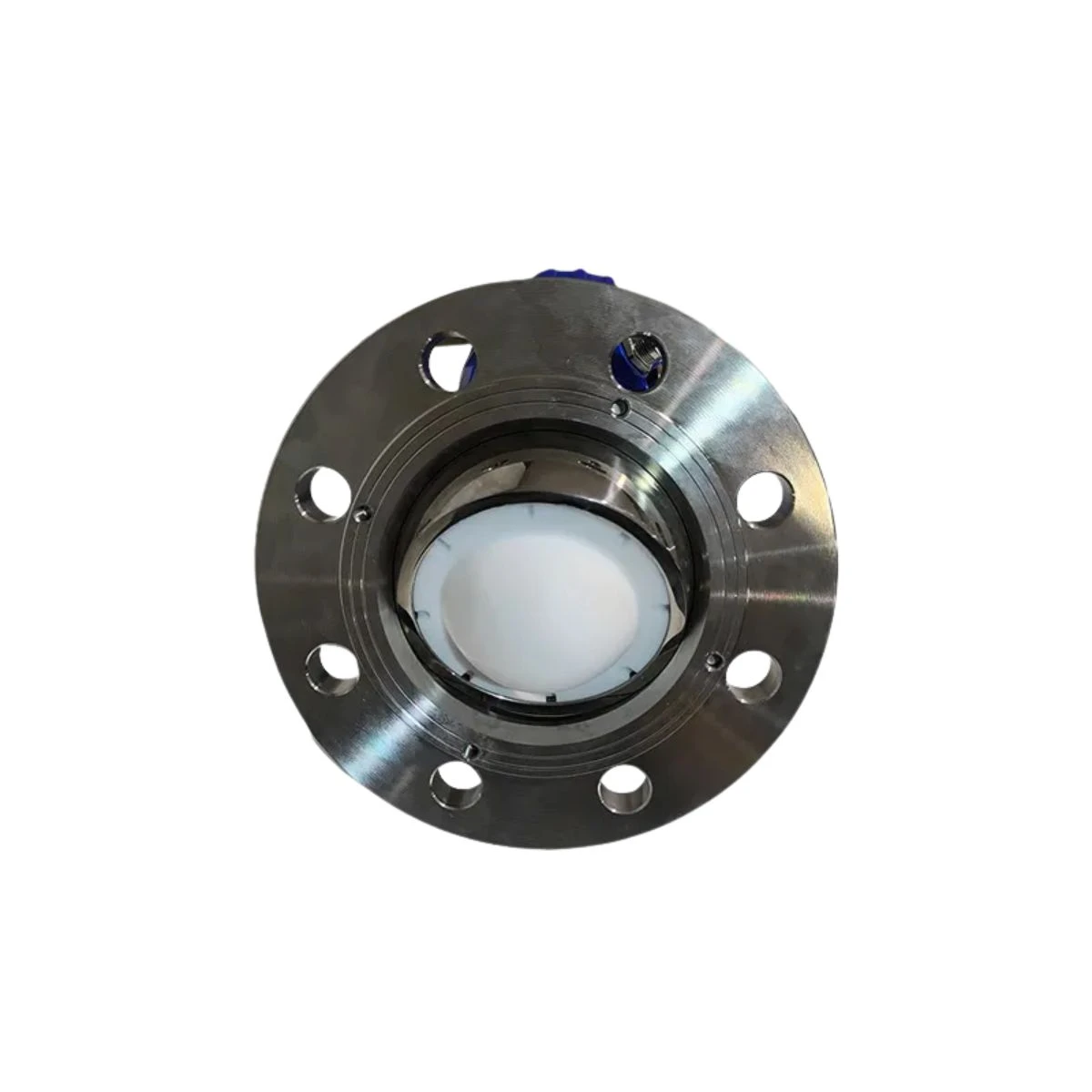

Universal Flange for Versatile Installation：Universal standard flange matches most tank nozzles for quick mounting and replacement across various vessel types.
High Precision & Millimeter-level Accuracy：Adopts 80GHz millimeter wave, tiny blind zone and mm precision for accurate measurement of liquid & solid materials.
Narrow Beam & Outstanding Anti-interference：Compact concentrated beam bypasses tank internals to eliminate false echo disturbance reliably.
Strong Adaptability to Harsh Environment：Fine penetration against dust, foam, vapor and low-dielectric medium to keep steady measuring data.
Non-contact & Maintenance-free Operation：Non-contact structure without abrasion or material adhesion, long service cycle and low running expense.
Diversified Signal Output Option：Available with 4~20mA/HART/Modbus-RTU, easy access to PLC/DCS industrial control system.
Universal Flange Size PN16
DN50 DN80 DN100
Universal Flange Material
SS304
Process Temperature
0-120℃
|
Typical application |
– Electromagnetic wave emission angle less than 3°, suitable for narrow space or waveguide tube measurement |
|
|
– Suitable for large tanks (150m) and small tanks (small blind area) |
|
|
– High precision, high hygiene level and other occasions |
|
|
– Complex process conditions (stirring, heating rod, ladder, floating roof, strong dust, strong steam, etc.) occasions |
|
Product model |

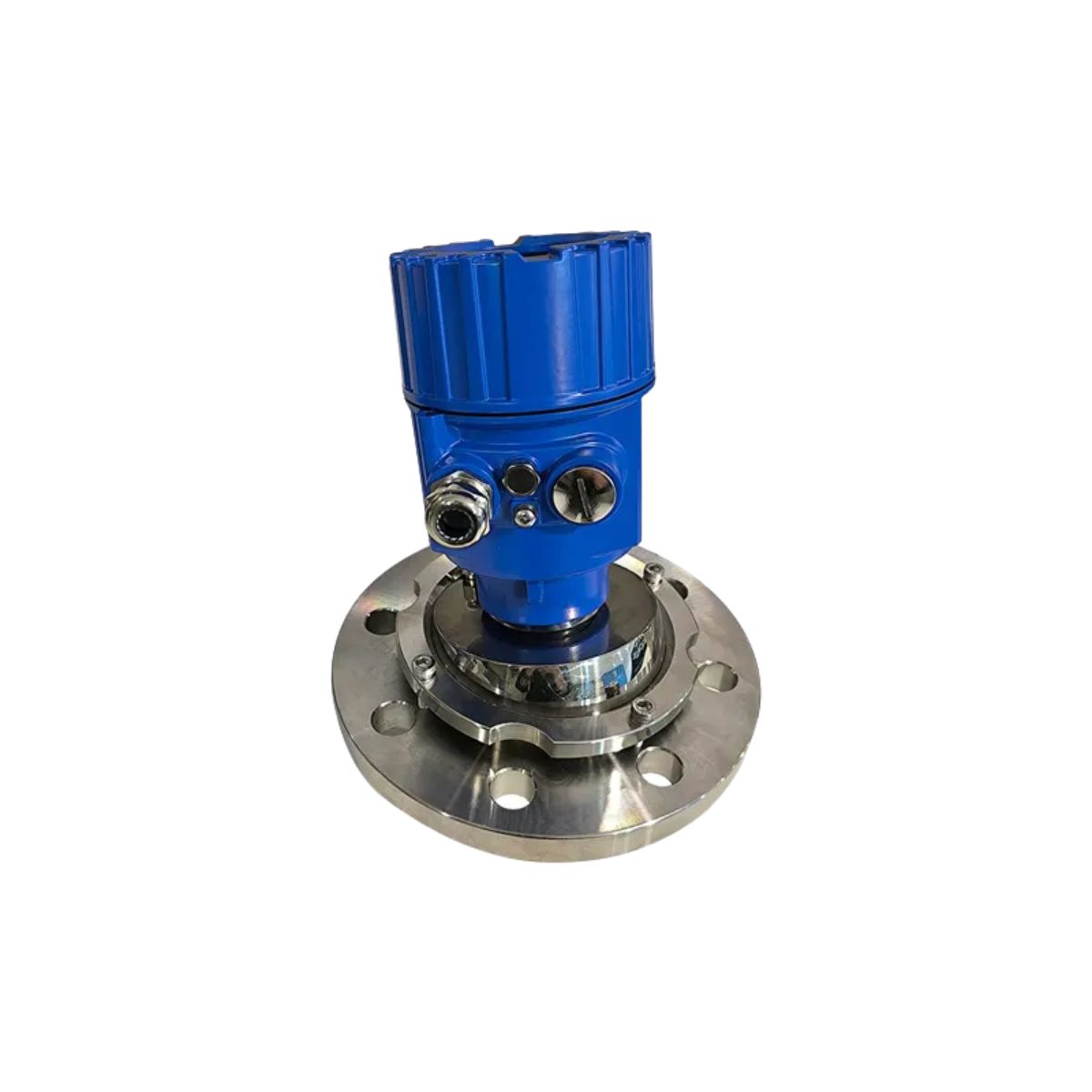

NYRD900-Universal Flange |
|
Transmit frequency |
80GHz, FM sweep frequency width 5GHz |
|
Antenna form |
Lens antenna |
|
Antenna material |
PTFE |
|
Measuring range |
0-35m |
|
Measurement accuracy |
2mm |
|
Power supply |
24VDC |
|
Signal output |
4...20mA/HART/RS485/ |
|
Process temperature |
0-120℃/ 120-200℃（≥200℃ can be customized） |
|
Process pressure |
0.3MPa |
|
Process connection |
Universal Flange |
|
Protection class |
IP65 |
|
Explosion-proof grade |
Exia II CT6Ga, Exd II CT6Gb |
|
※Note: |
The product can be customized according to the specific requirements of users. |
Main Functions and Application Scenarios
Continuously monitor liquid and solid level via non-contact detection.
Filter clutter echoes caused by tank baffles, dust and foam automatically.
Display real-time data locally and support on-site parameter setting.
Transmit level data to PLC and DCS control system.
Petrochemical: Various oil and chemical liquid storage tanks
Building material: Cement, mineral powder and fly ash silos
Food industry: Grain, corn and starch storage bins
Water treatment: Sewage pools and chemical water tanks
