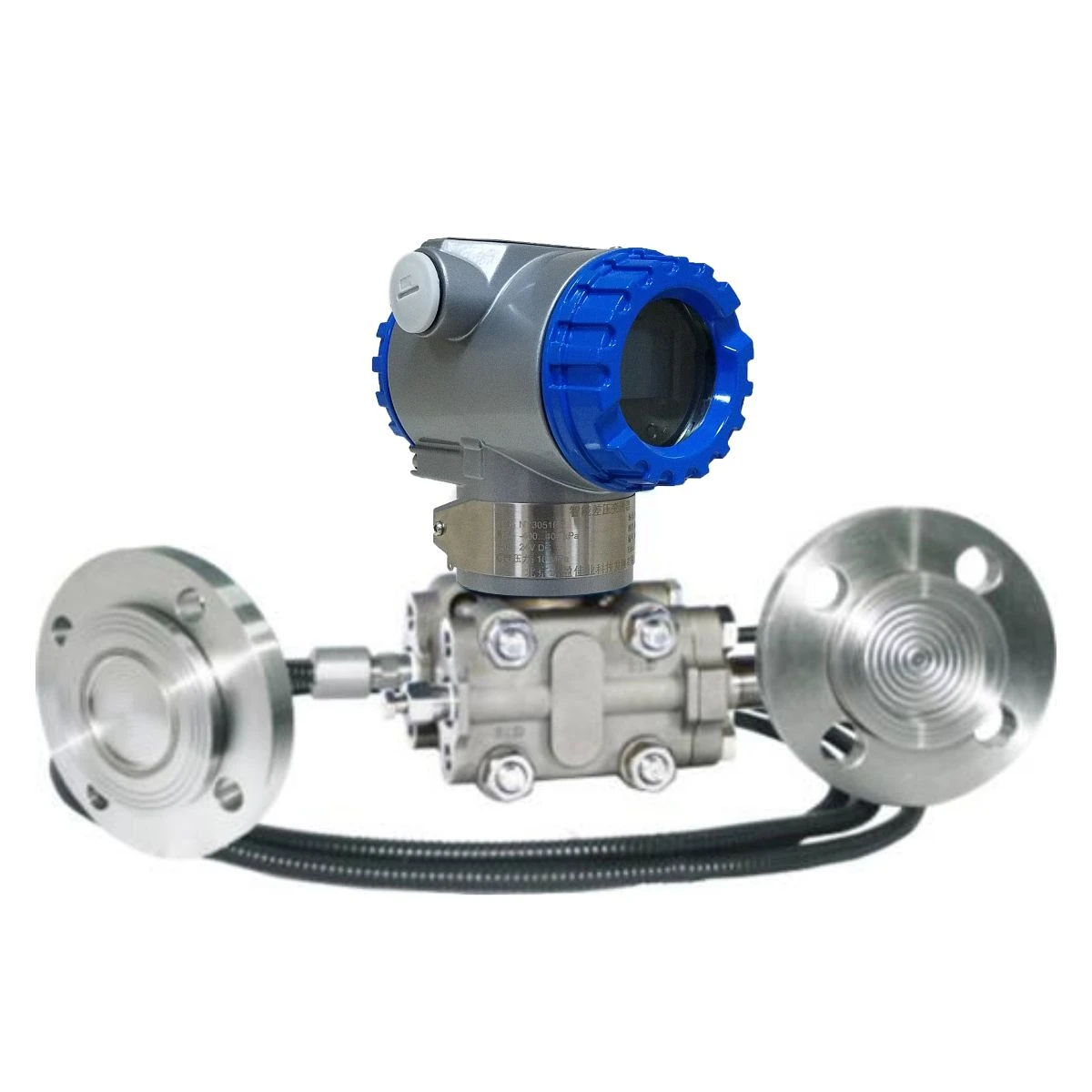

High Temperature Double Flange Differential Pressure Transmitter For Crystallize Media NY3051-4

NY3051 series intelligent differential pressure/pressure transmitter has a variable capacitance sensing component, called "8" chamber (see the figure below), and the process pressure is transmitted to the "8" chamber through the isolation diaphragm on both sides of the "8" chamber and the filling liquid. The central diaphragm is a tensioned elastic element, which produces a corresponding deformation displacement for the pressure difference on both sides acting on it, and this displacement is transformed into a differential capacitor formed on the capacitor plate. The differential capacitance is converted into a standard output signal by the electronic circuit.


Petroleum, chemical and petrochemical industryMeasure differential pressure, liquid level and density of various corrosive liquids, gas and steam.

Power plant & new energy industryBoiler flue gas pressure, water tank liquid level, pipeline flow and pressure monitoring.

Water treatment & environmental protectionWater supply and drainage pipeline pressure difference, sewage tank level, filter pressure difference monitoring.

Metallurgy and building materialsHigh-temperature flue gas pressure, furnace internal pressure and medium level measurement.

Pharmaceutical & food industrySanitary type available, suitable for sterile pipeline liquid level, flow and differential pressure detection.

HVAC and industrial pipeline systemAir duct wind pressure, pipeline differential pressure, flow calculation and automatic control.

Process automation controlMatch DCS/PLC system, realize real-time pressure, level and flow online monitoring and data transmission.
