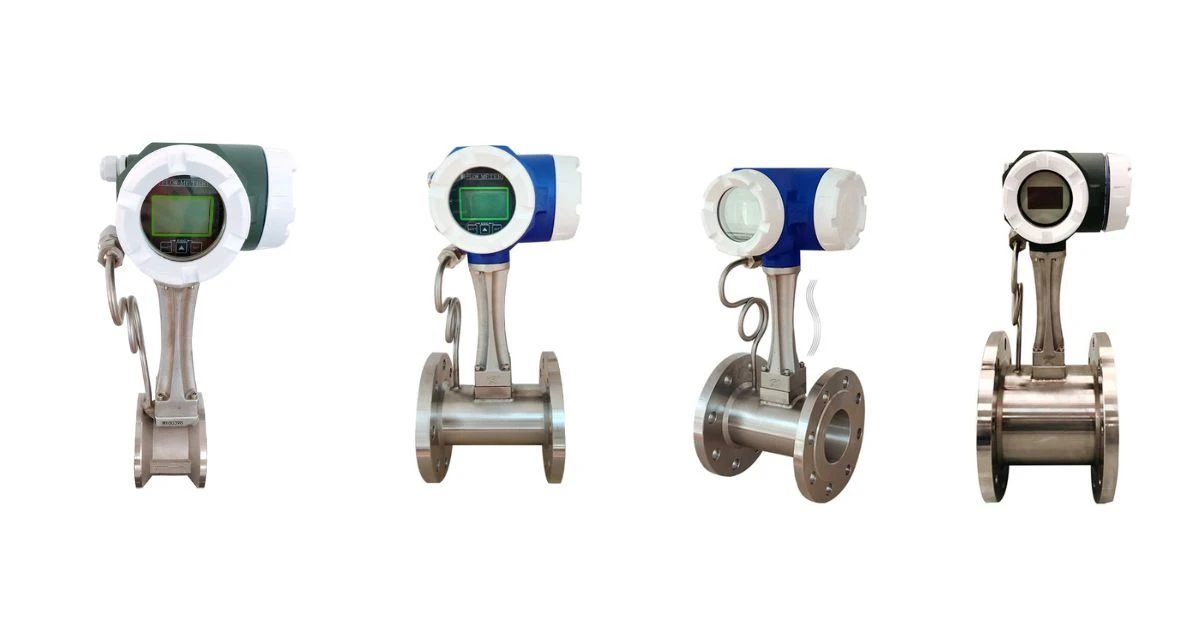

Precession Vortex Flowmeter Suppliers: How to Select a Reliable Swirl Gas Flow Meter

Precession vortex flowmeters, also widely known as swirl flowmeters, are specialized velocity-type instruments built primarily for gas flow measurement. Many engineers, procurement managers and plant operators search for precession vortex flowmeter suppliers when upgrading gas metering systems, replacing old meters or building new process lines for natural gas, biogas, compressed air and other industrial gaseous media.

Unlike many other gas meters, precession vortex flowmeters rely on vortex precession fluid dynamics instead of moving mechanical rotors. This unique design makes them a stable option for custody transfer, process monitoring and energy accounting across multiple industrial sectors. When evaluating precession vortex flowmeter suppliers, buyers need to compare core specifications, material options, signal outputs, compensation functions and application suitability, rather than focusing only on price.

Working Principle of Precession Vortex Flowmeters

Gas flows into the meter and passes through spiral guide vanes at the inlet. These vanes force the gas into a strong swirling vortex. When the vortex enters the diffuser section, interaction with backflow creates a secondary gyroscopic precession movement. The precession frequency has a linear relationship with volumetric flow rate and is minimally affected by gas density changes within the calibrated range.

Built-in piezoelectric sensors capture the frequency signal. Intelligent integrated models combine flow detection with temperature and pressure sensors. The on-board microprocessor automatically calculates standard volume flow by applying real-time temperature, pressure and compressibility factor compensation, which is critical for accurate gas metering under fluctuating working conditions.

Core Technical Specifications

Below is a clear specification table for quick comparison when contacting precession vortex flowmeter suppliers:

Key Advantages to Verify from Precession Vortex Flowmeter Suppliers

1. No moving internal parts: Without bearings, impellers or gears, wear risk is greatly reduced. This cuts scheduled maintenance and lowers unexpected downtime, suitable for unattended pipeline stations.
2. Integrated temperature and pressure compensation: All-in-one design eliminates separate transmitters, simplifies piping layout and reduces installation cost.
3. Strong anti-vibration performance: Well-adapted to industrial environments with pump and compressor vibration, which is a common pain point for gas metering.
4. Wide turndown ratio: Can capture low flow rates stably, suitable for pipelines with large load fluctuations.
5. Moderate pressure loss: Balances metering accuracy and pipeline energy consumption compared with some differential pressure gas meters.
6. Compact installation footprint: Shorter straight pipe requirement saves space in skids and compact gas stations.

Typical Application Scenarios

Reliable precession vortex flowmeter suppliers usually deliver meters for these mainstream markets:

• City gas distribution network and natural gas custody transfer stations
• Biogas and landfill gas measurement in environmental and renewable energy projects
• Petrochemical and chemical plant process gas monitoring
• Metallurgy, glass and thermal power fuel gas metering
• Compressed air, nitrogen and oxygen consumption measurement for factory energy management
• LPG mixing and gas blending systems

Important Selection Checklist When Contacting Precession Vortex Flowmeter Suppliers

Before sending inquiries, prepare these details to help suppliers provide accurate offers and correct meter configuration:

✅ Gas composition and purity (whether containing moisture, sulfur or corrosive components)

✅ Working pressure range, working temperature range

✅ Minimum and maximum flow rate (to confirm turndown)

✅ Pipe diameter and flange standard

✅ Installation condition: available straight pipe length, vibration level

✅ Required output signal and communication protocol

✅ Application purpose: internal monitoring or fiscal custody transfer

✅ Material and explosion-proof requirements for hazardous areas

Precession Vortex Flowmeter vs Other Common Gas Meters

Common Questions for Precession Vortex Flowmeter Suppliers

1. Can the meter work stably with wet natural gas or biogas with condensate?
2. What explosion-proof certifications are available for hazardous zone installation?
3. Is remote data access supported via Modbus?
4. What is the warranty period and calibration support?
5. Can custom body material and special pressure ratings be manufactured?
6. Are spare sensors and replacement electronics available separately?

Final Tips for Sourcing Precession Vortex Flowmeters

Quality differences among precession vortex flowmeter suppliers mainly lie in sensor stability, compensation algorithm, housing sealing and calibration standards. Avoid choosing only based on the lowest quotation. For fiscal metering, confirm traceable calibration reports. For long-cycle projects, check the supplier’s after-sales response and spare part supply capacity.

A properly selected precession vortex flowmeter will deliver consistent gas flow data, support energy cost control and reduce measurement disputes, which brings lasting value for gas pipeline and process plant operators.
