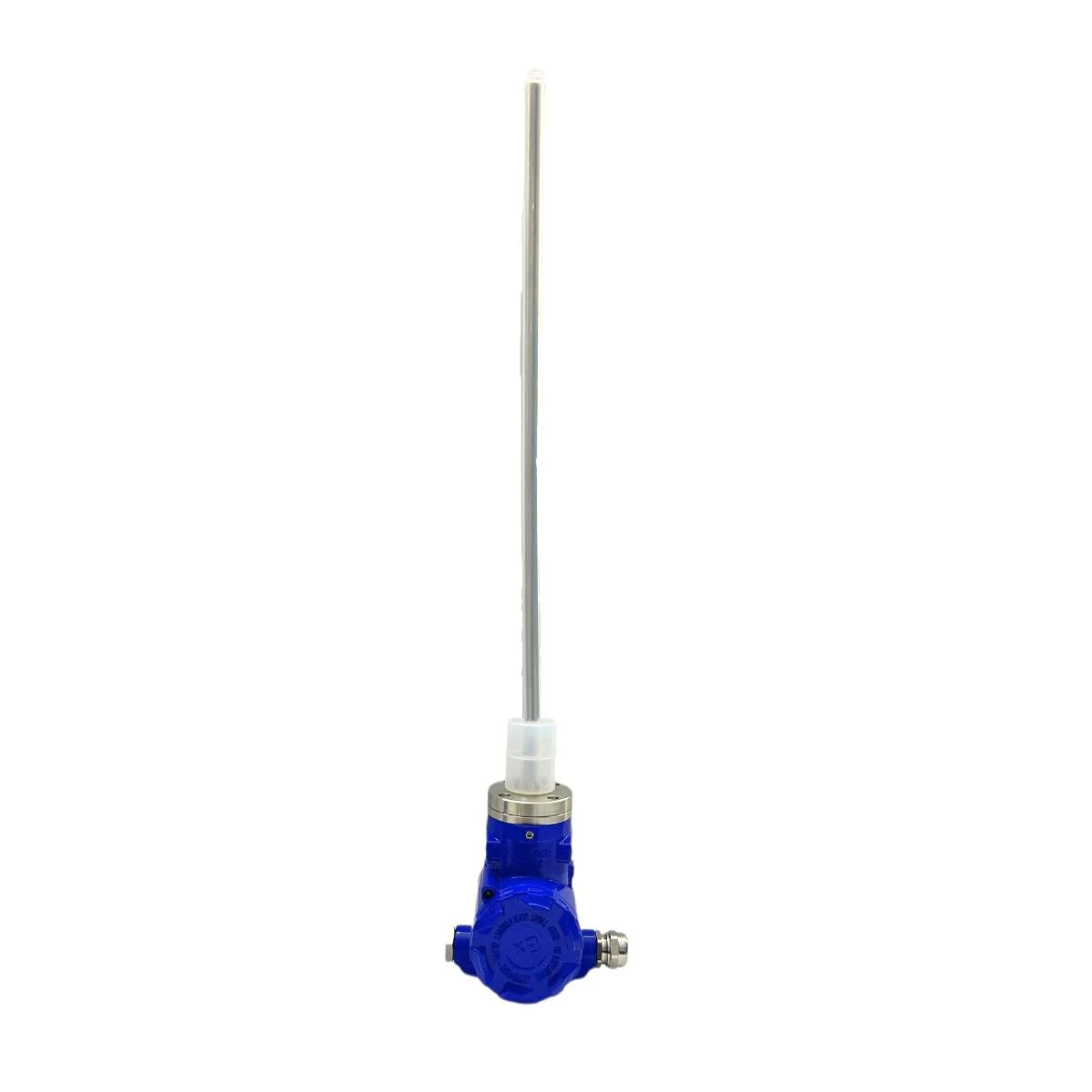

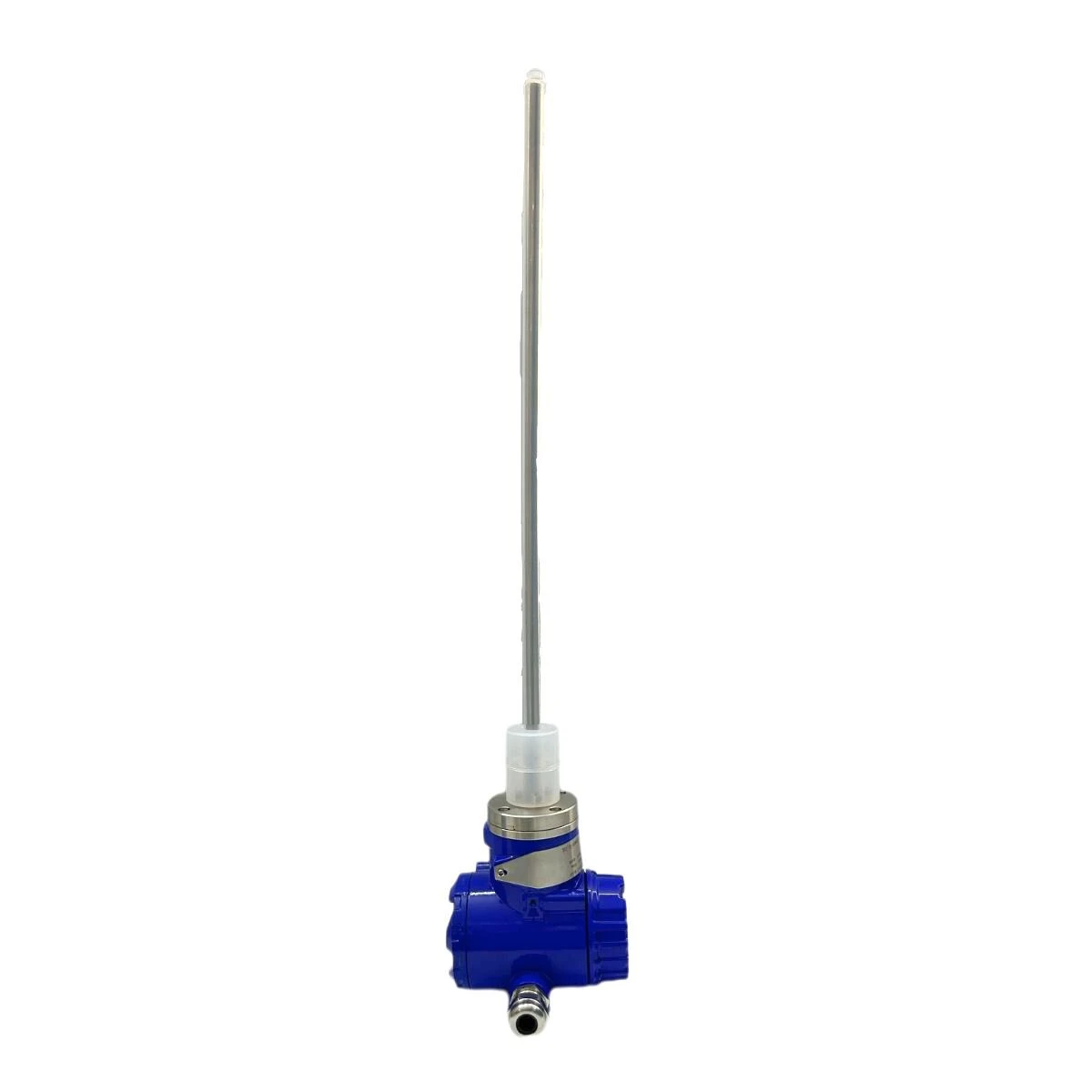

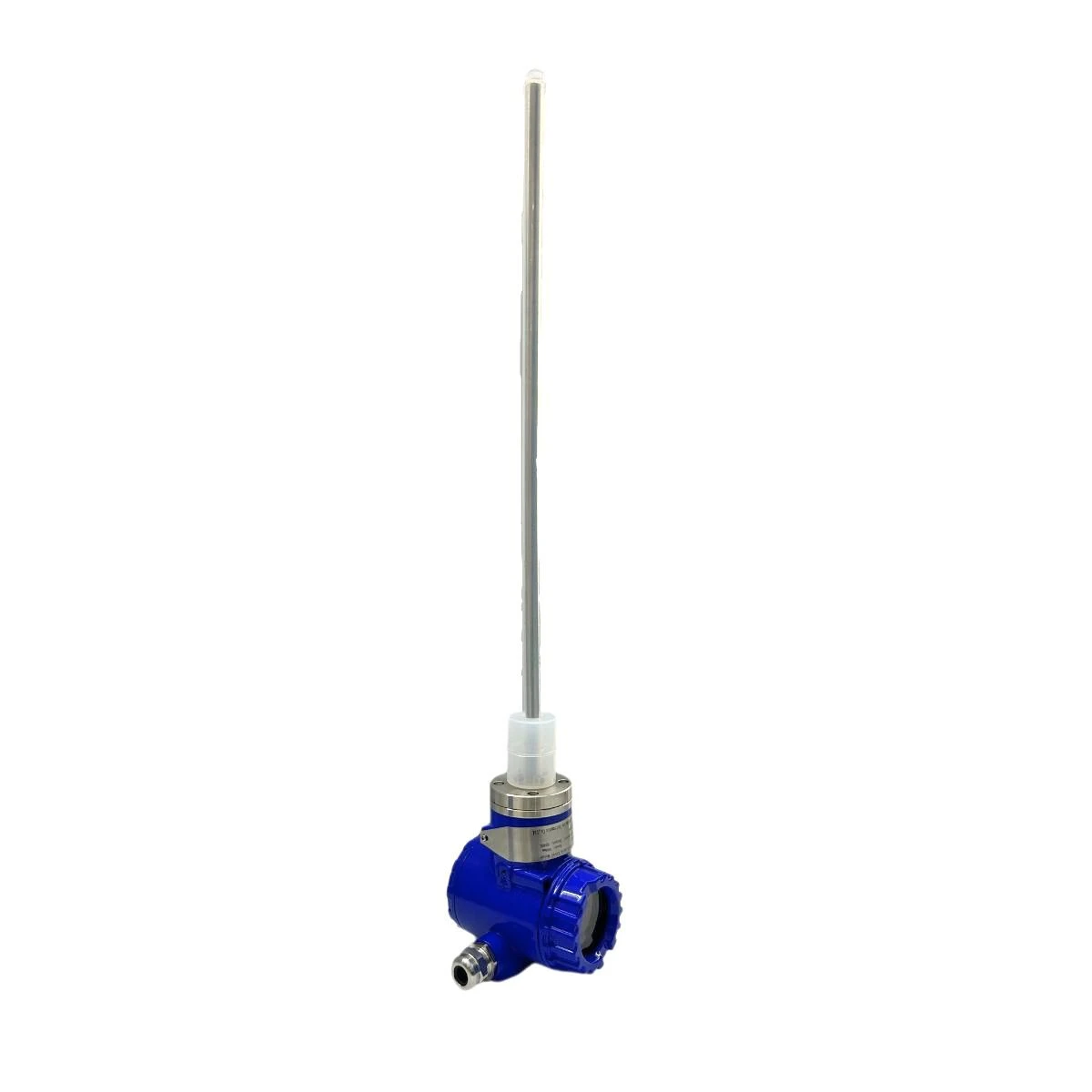

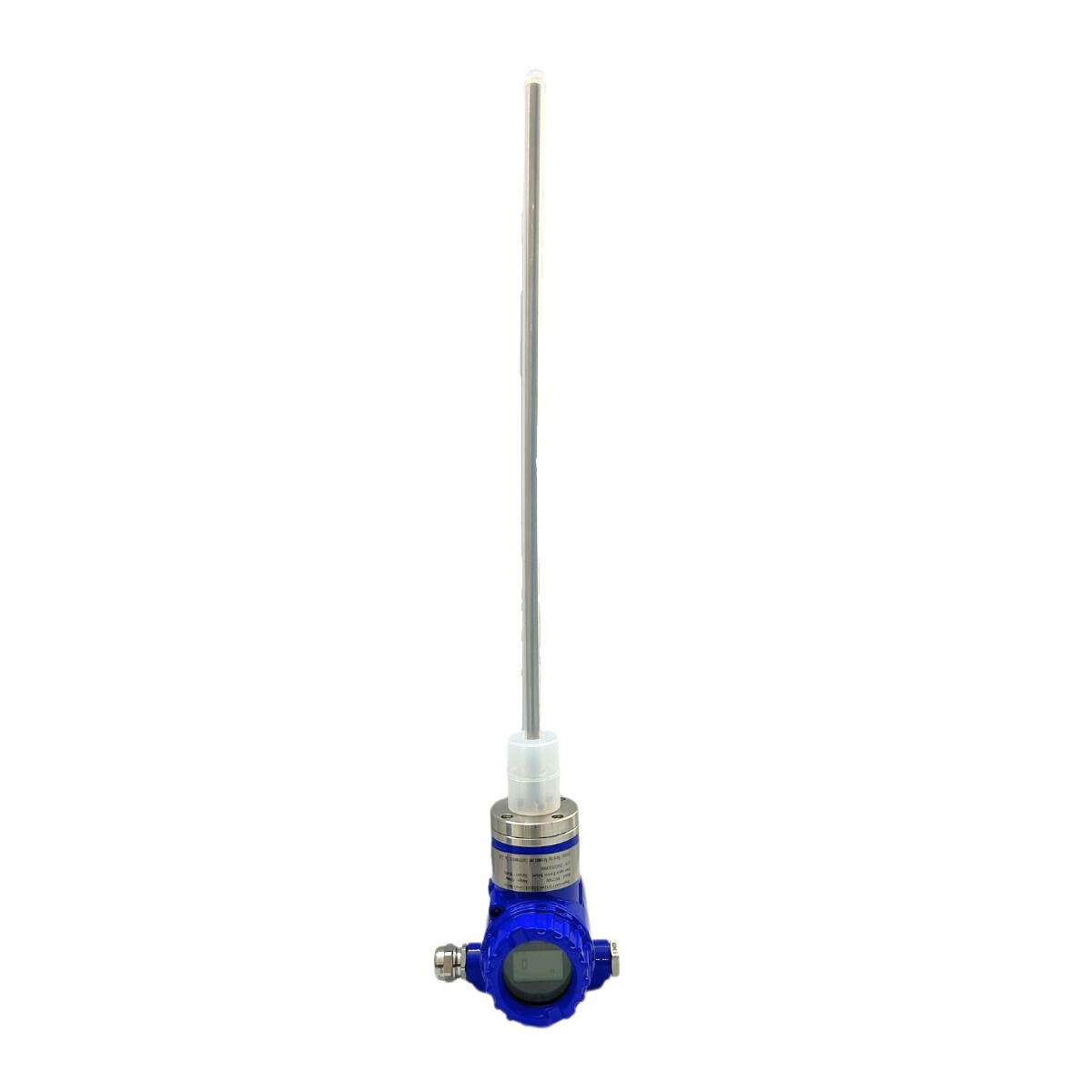

Rod - type Magnetostrictive Level Meter for Liquid and Interface Measurement at Normal Temperature and Pressure
Empowering Global Industry with Advanced Precision Technology
High measurement accuracy and excellent repeatability.
Wide measuring range, suitable for various tank types.
Strong anti-interference ability, stable operation in complex environments.
Non-contact measuring principle, low wear and long service life.
Support continuous level output, convenient for remote monitoring.
Compact structure, easy installation and minimal maintenance.
Introduction
Technical Parameters
Design features
Product Features and Model Parameters
Adopts magnetostrictive principle for high-precision continuous level measurement.
Non-contact detection, no mechanical wear and long service life.
Strong anti-interference performance, stable in complex industrial environments.
Supports real-time signal output for remote monitoring and control.
Compact structure, easy installation and debugging.
Wide medium compatibility, applicable to various liquids.
Antenna material
304
Measuring range
0-1m
Process connection
Thread
| Typical application | Liquid, interface measurement |
| Product model | NYCZ500 |
| Antenna form | rod type |
| Antenna material | 304 |
| Measuring range | 0-1m |
| Measuring accuracy | ±0.5mm |
| Power supply | 24VDC (two wire) |
| Signal output | 4…20mA+HART |
| Working current | 4...20mA |
| Load characteristics | When the current output, the maximum load resistance is 600Ω; Voltage output, the maximum load resistance of 2mA |
| Process temperature | 0～100℃ |
| Response time | 0.2 - 5 ms |
| Process pressure | -0.1～1.6MPa |
| Process connection | Thread |
| Resolution | ±1mm |
| Protection grade | IP67 |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Main Functions
Perform high-precision continuous liquid level measurement.
Output standard signals for remote monitoring and system control.
Realize real-time tracking of liquid level changes.
Support long-term stable detection in industrial tanks and vessels.
Optional upper and lower limit alarm for safety protection.
Application Scenarios
Petroleum and chemical industry storage tanks
Power generation and thermal energy systems
Water supply, drainage and environmental protection projects
Pharmaceutical, food and beverage production workshops
Metallurgy, machinery and manufacturing facilities
Industrial vessels and automated fluid control systems
Application Scope
The magnetostrictive level gauge is designed for high-precision continuous liquid level measurement. It is widely used in petroleum, chemical, power, water treatment, pharmaceutical and other industries, applicable to various storage tanks and fluid control equipment.
Notes
Install vertically to ensure accurate measurement results.
Keep away from strong electromagnetic interference sources.
Do not exceed the rated temperature and pressure range.
Avoid mechanical impact and bending during installation and use.
Regularly check wiring and sealing for safety operation.
Use suitable accessories according to the properties of measured medium.
