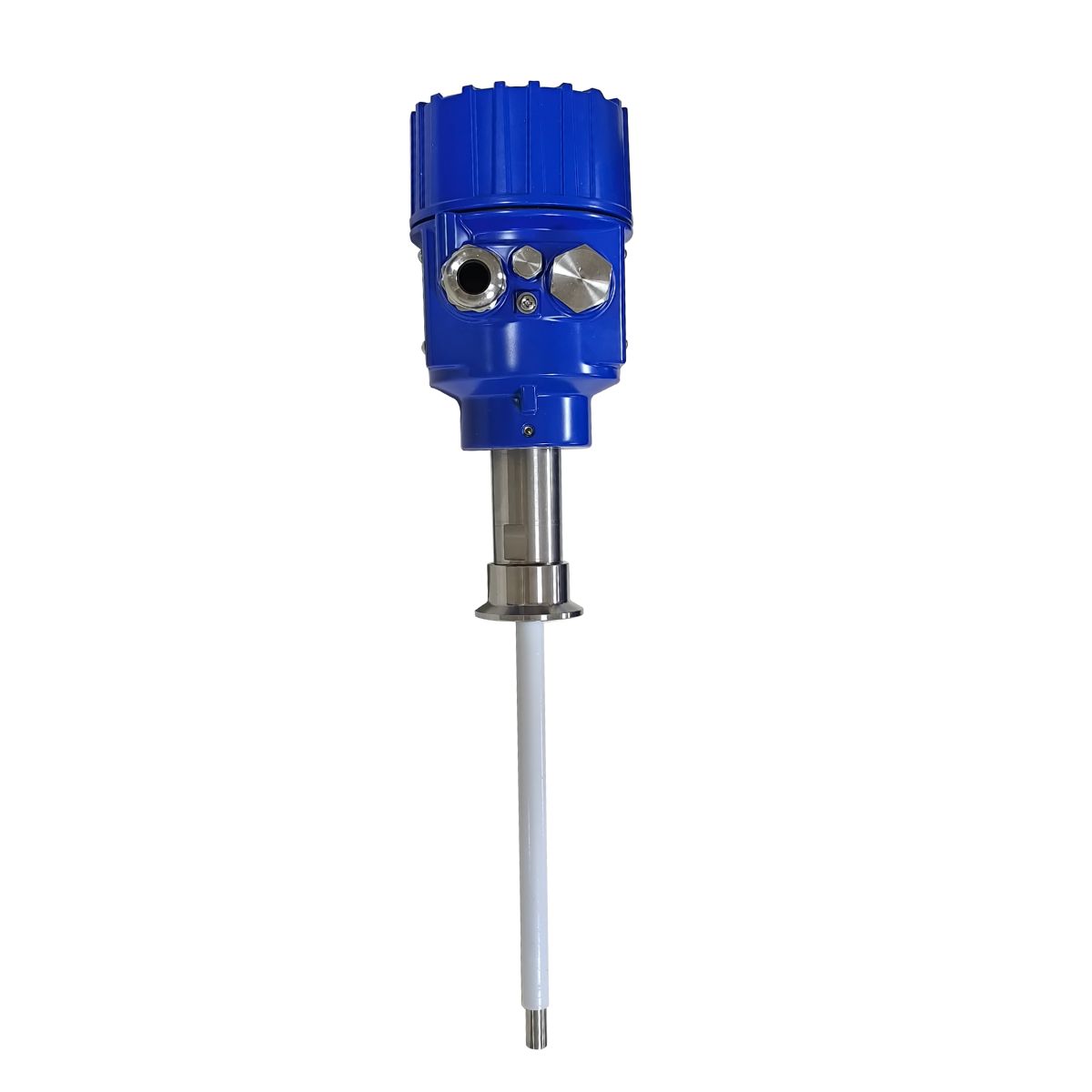

RF Capacitive Switch for Liquid Level Control with Advanced Digital Intelligent Compensation Technology
Empowering Global Industry with Advanced Precision Technology
High detection sensitivity, capable of identifying various liquid, powder and granular materials accurately.
Strong anti-interference ability, stable operation in complex industrial environments.
Compact structure, easy installation and simple commissioning.
Good temperature and pressure resistance, applicable to harsh working conditions.
Long service life, wear-resistant and maintenance-free for long-term use.
Wide measuring range, compatible with most industrial media.
Introduction
Technical Parameters
Design features
Product Features and Model Parameters
High detection sensitivity, suitable for liquids, powders and granular materials.
Excellent anti-interference performance, stable operation in harsh environments.
Compact structure, easy installation and quick commissioning.
Good resistance to high temperature and pressure.
Wear-free design, long service life and maintenance-free.
Adapts to various viscous, dusty and easy-to-adhere media.
Probe material
304+PTFE
Process connection
Thread
Electric shock capacity
Single point: 250V 3A
| Typical application | Liquid level control |
| Produet model | NYDR |
| Probe material | 304+PTFE |
| Probe length | 200mm |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40～+100 ℃ |
| Process pressure | -0.1～2.0MPa |
| Process connection | Thread |
| Electric shock capacity | Single point: 250V 3A |
| Dielectric constant | ≥1.6 |
| Time delay | 0.5～30s adjustable |
| Protection grade | IP67 |
| Explosion-proof grade | Exia II CT6 |
Main Functions
Realize point level detection and limit alarm for liquids, powders and granular materials.
Automatic on-off control to prevent overflow or material shortage.
Signal feedback for interlock control of industrial equipment.
Stable detection against interference from steam, dust and viscous media.
Support on-site sensitivity adjustment for different media.
Overload and short-circuit protection for safe operation.
